Sparkfun TIMI to MikroBUS Adapter

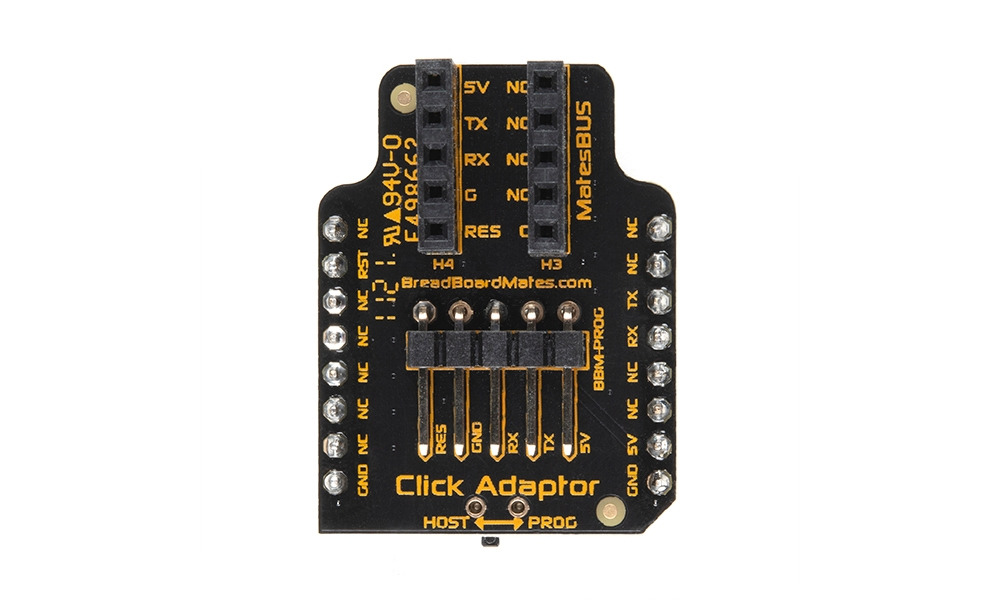

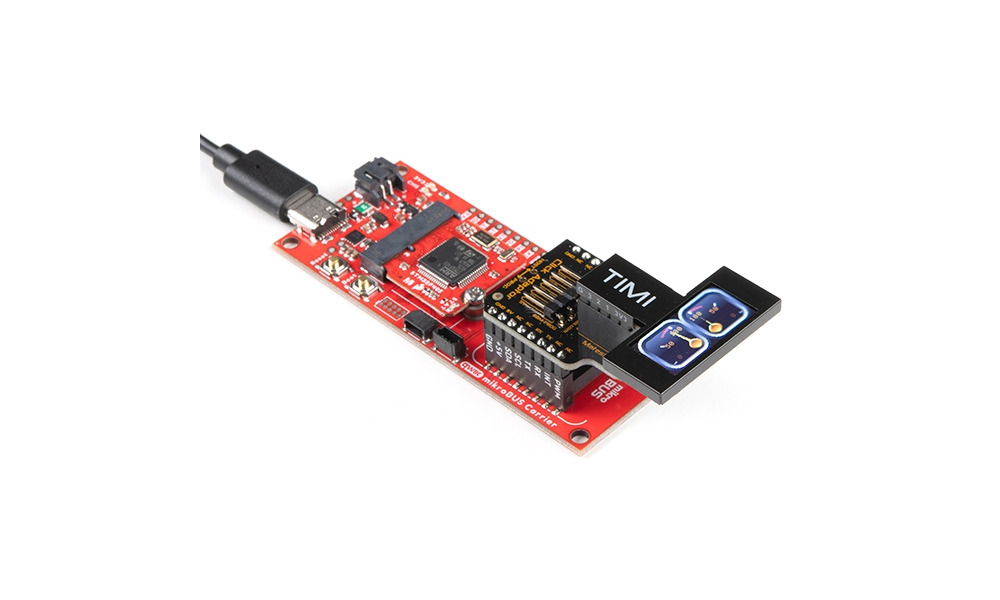

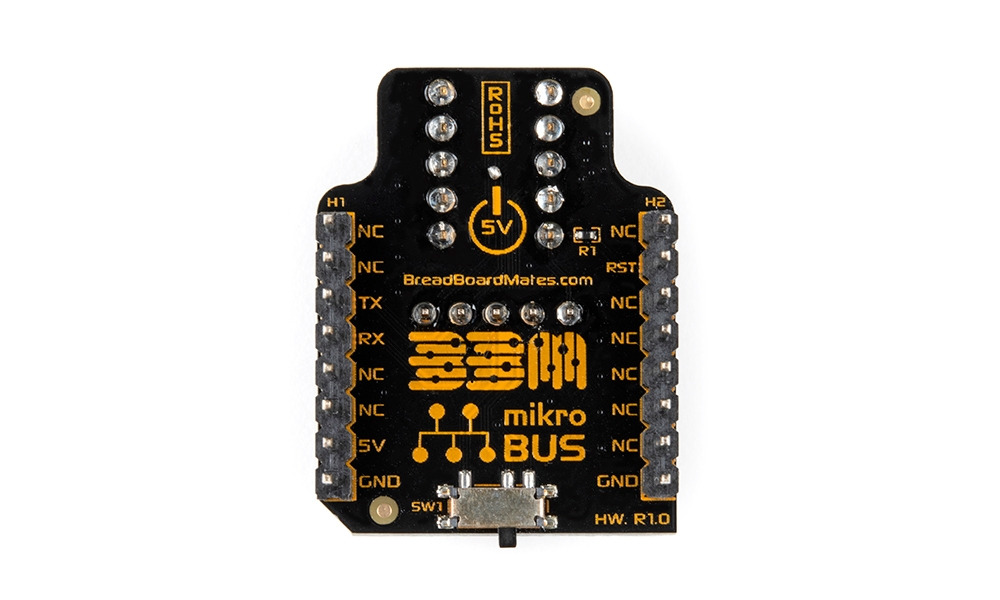

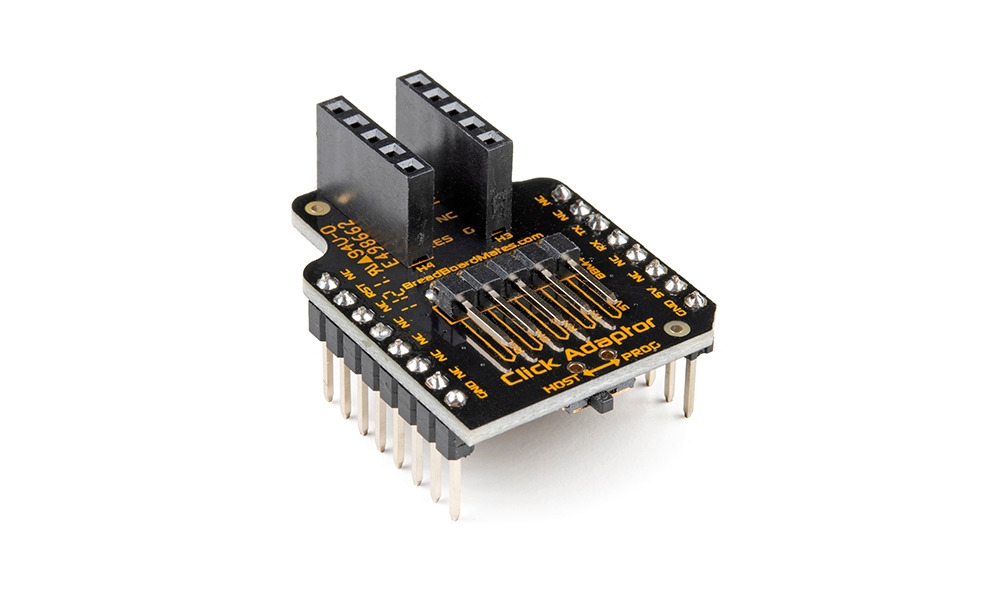

The TIMI to MikroBUS™ adapter seamlessly bridges development boards or modules equipped with a mikroBUS™ Click socket to a MatesBUS interface, facilitating direct connections with products like the TIMI-96. It supports any board with a mikroBUS™ Click socket, enabling straightforward integration with the Raspberry Pi bus. Key features include a 5-pin programming header for direct device programming via the Click Adapter and a selection switch to toggle between programming mode and device connection to the host.

This adapter is ideal for developers looking to expand their project capabilities by integrating TIMI models with existing Raspberry Pi setups. Whether you're working on a prototype or a complex design, this adapter simplifies the connection process, allowing for efficient communication and control.

One of the standout benefits is the ease of switching between programming and operational modes with a simple selection switch. This functionality is particularly useful for iterative development processes where frequent programming and testing cycles are necessary.

Communication between the host and the connected device is streamlined through a 3.3V level Asynchronous Serial UART, ensuring reliable data transfer. Additionally, the reset functionality is synchronized with the mikroBUS™ RST, providing a cohesive and stable connection environment.
