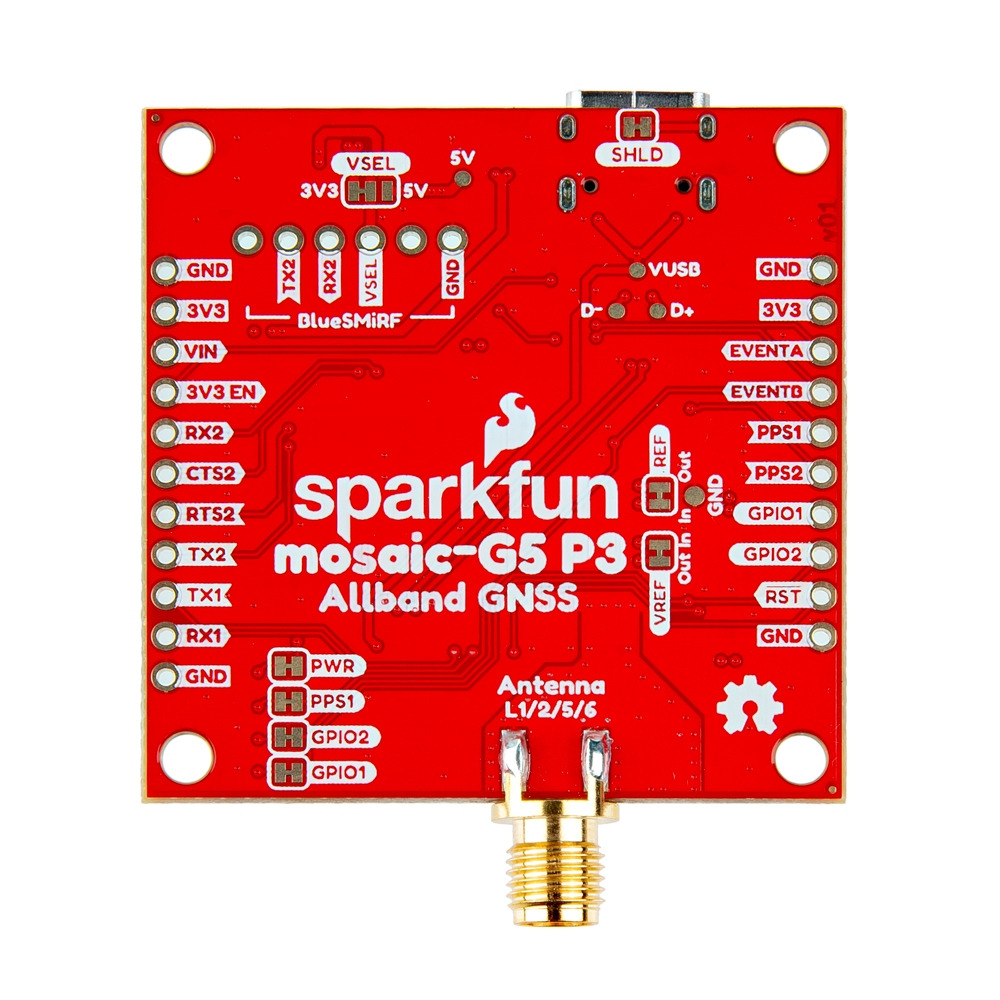

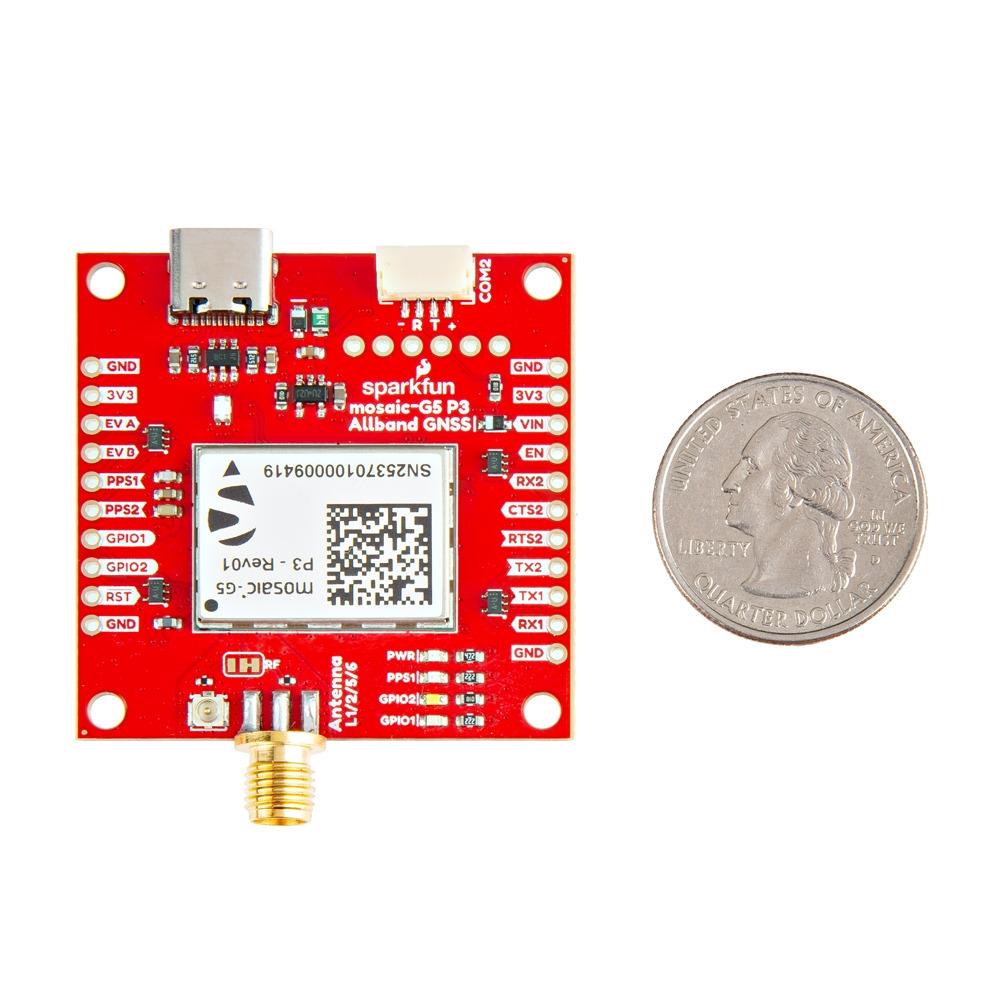

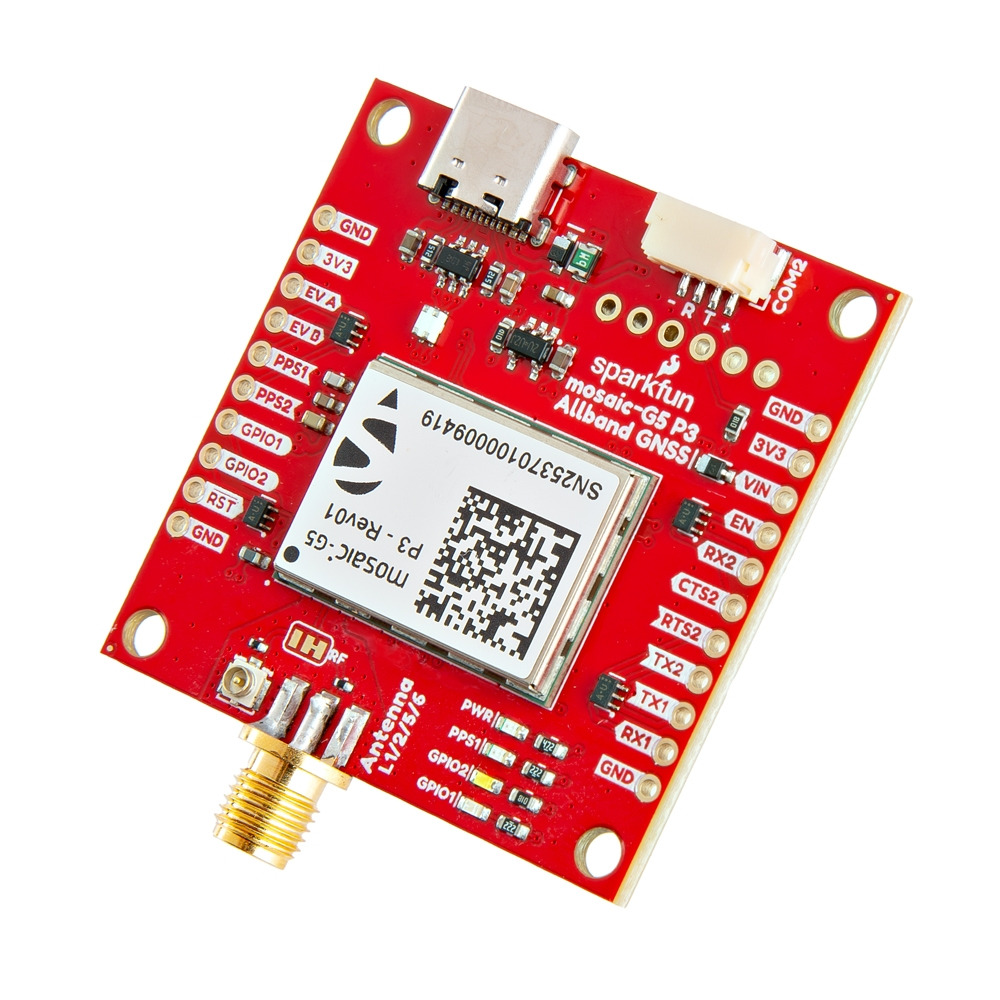

SparkFun Allband GNSS RTK Breakout - mosaic-G5 P3

Achieve survey-grade precision with the SparkFun mosaic-G5 P3 Allband GNSS RTK Breakout, designed for power-sensitive projects. This compact GNSS peripheral offers millimeter-level accuracy while being 60% smaller and using 40% less power than its counterparts. Ideal for applications like surveying, robotics, and IoT where size, weight, and power are critical, this breakout board is equipped with standard 2.54mm headers, Qwiic connectors, and a robust SMA antenna connection.

The versatility of the mosaic-G5 makes it suitable for a wide range of uses. Whether you're developing a robotics project that requires precise navigation or an IoT application that demands accurate positioning, this GNSS receiver delivers exceptional performance. Its ability to track all major global systems, including GPS, GLONASS, Galileo, BeiDou, and QZSS, ensures reliable and comprehensive coverage.

One of the standout features is its millimeter-level accuracy, providing 6mm horizontal and 1cm vertical precision with Real-Time Kinematic (RTK) technology. This level of accuracy is crucial for applications where even the smallest deviation can lead to significant errors, such as in land surveying or autonomous vehicle navigation.

Moreover, the mosaic-G5 offers precise timing capabilities, with a PPS timing resolution of 1.4 nanoseconds and event-trigger accuracy, making it perfect for time-sensitive applications. Its compact size and reduced power consumption make it a top choice for projects where efficiency and performance are paramount.
