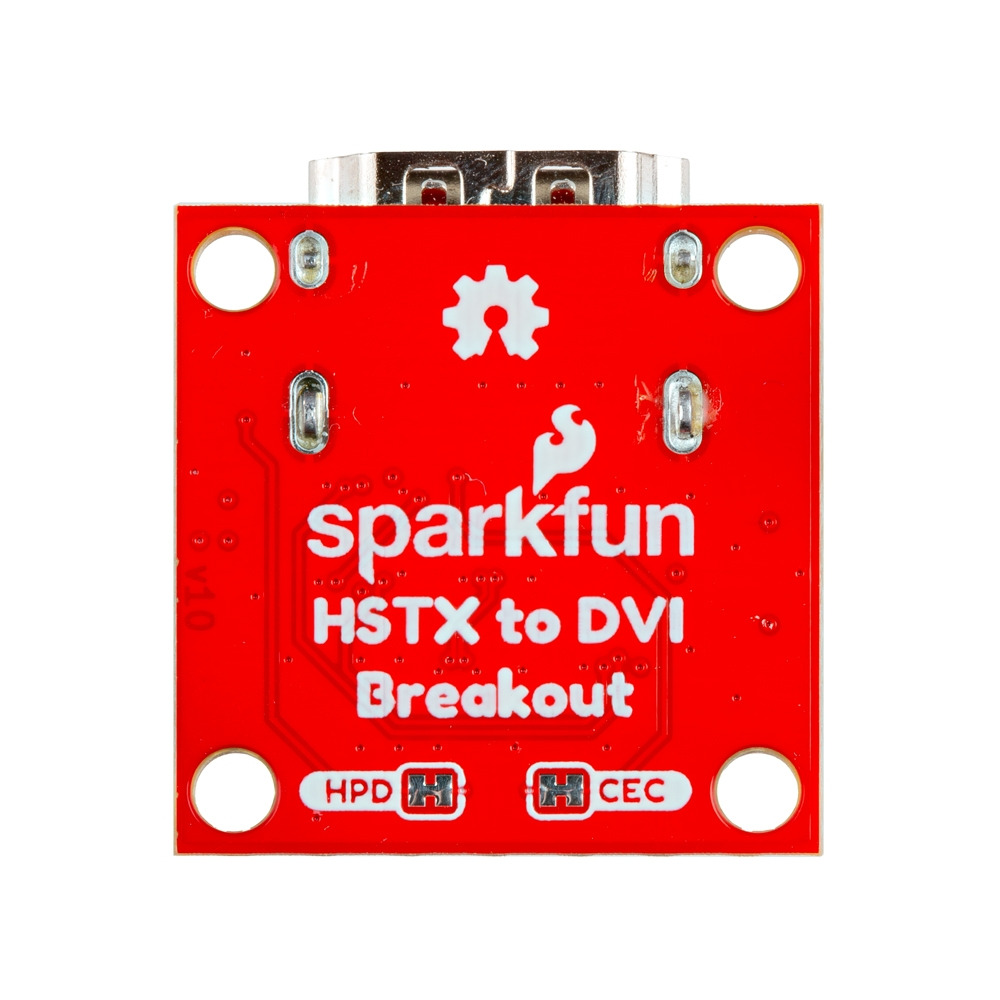

SparkFun HSTX to DVI Breakout

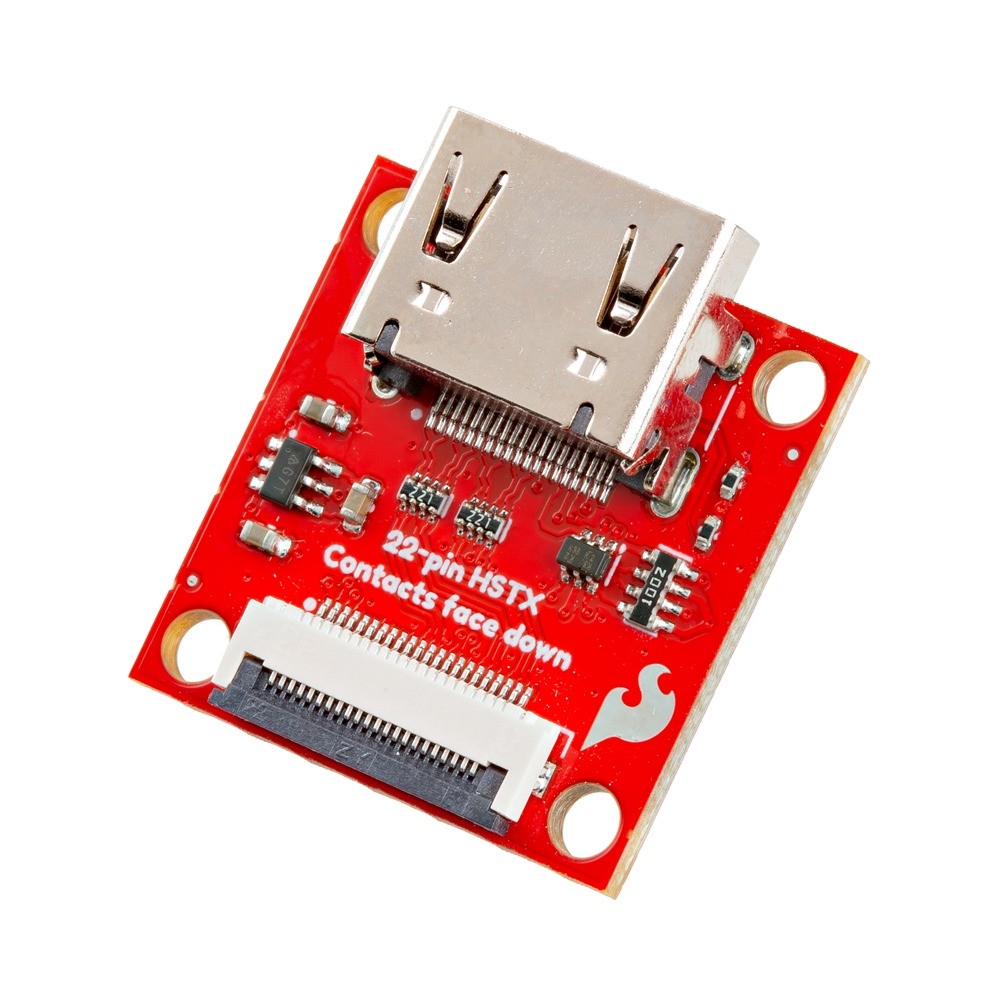

The SparkFun HSTX to DVI Breakout is a versatile solution for converting the 22-pin interface from the HSTX connector on the RP2350 IoT RedBoard or the display connector on a Raspberry Pi 5 into an HDMI connector suitable for DVI output. It features a 22-pin flex cable connector and an HDMI connector, along with essential components for level shifting and voltage boosting to ensure seamless compatibility with DVI signal standards. Please note that the 22-pin flex cable is not included.

This breakout board is perfect for projects where you need to connect your Raspberry Pi or IoT RedBoard to a DVI-compatible display. Whether you're building a custom media center, setting up a digital signage system, or creating an interactive display, this board provides a reliable and straightforward connection solution.

One of the standout benefits of this board is its ability to handle the necessary voltage adjustments and signal conversions internally, eliminating the need for additional components or complex wiring. This makes it an ideal choice for both beginners and experienced developers looking to streamline their setup process.

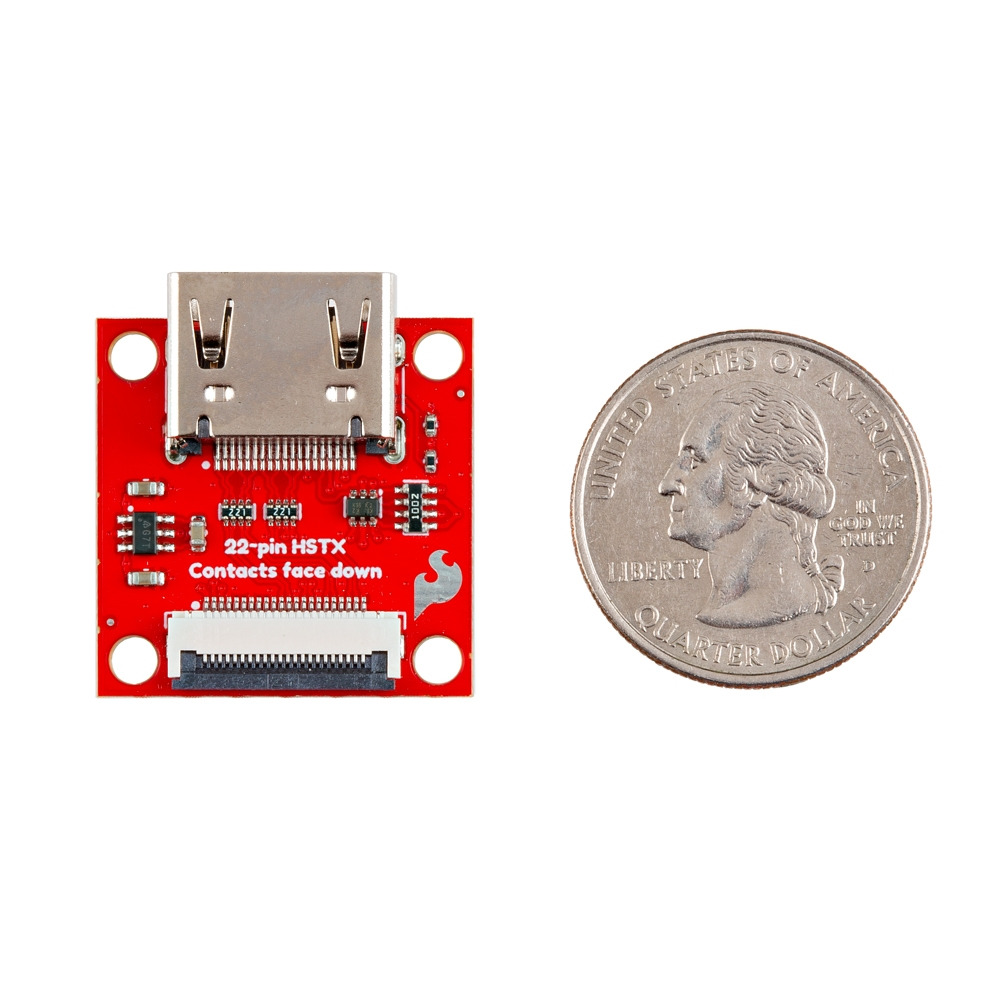

Compact and efficient, the board's design ensures it fits neatly into your project without adding unnecessary bulk. The included components work together to ensure a stable and clear video output, enhancing the quality of your visual projects. Whether for educational purposes or professional applications, this breakout board offers a practical and effective way to bridge the gap between different interfaces.
