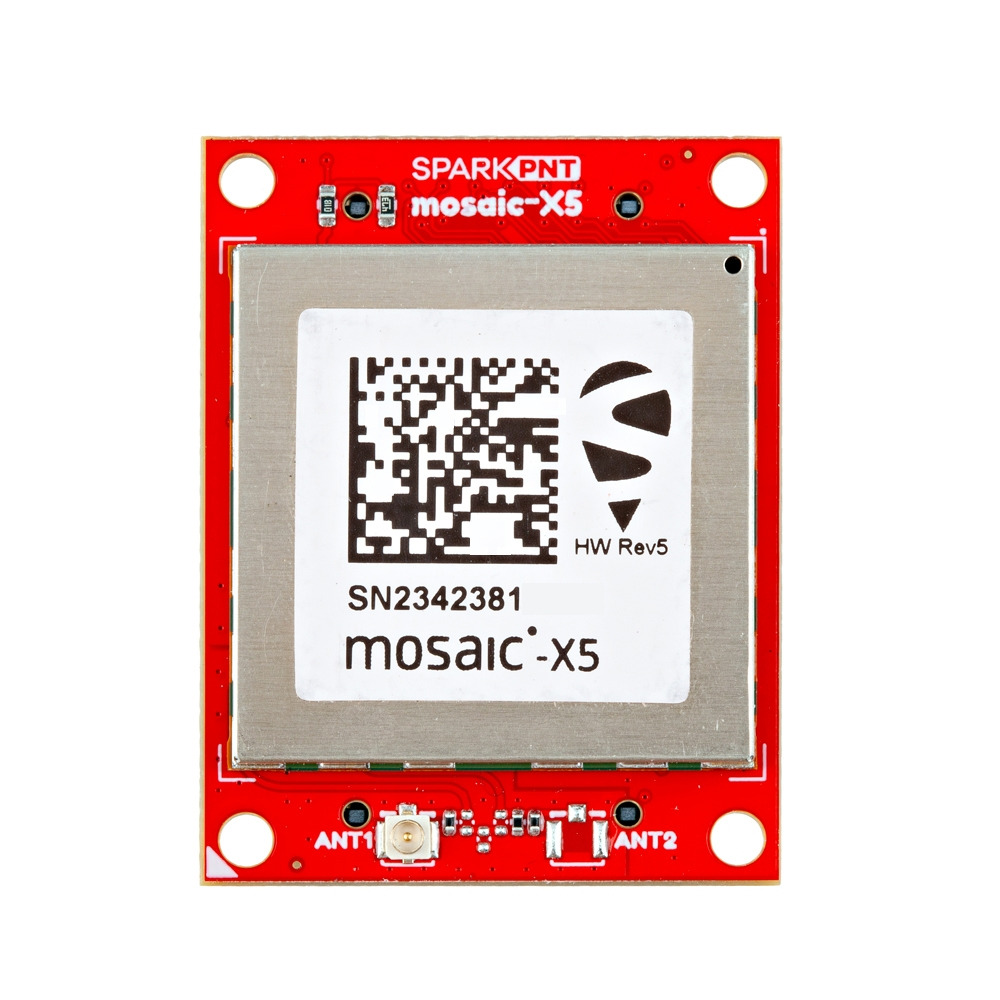

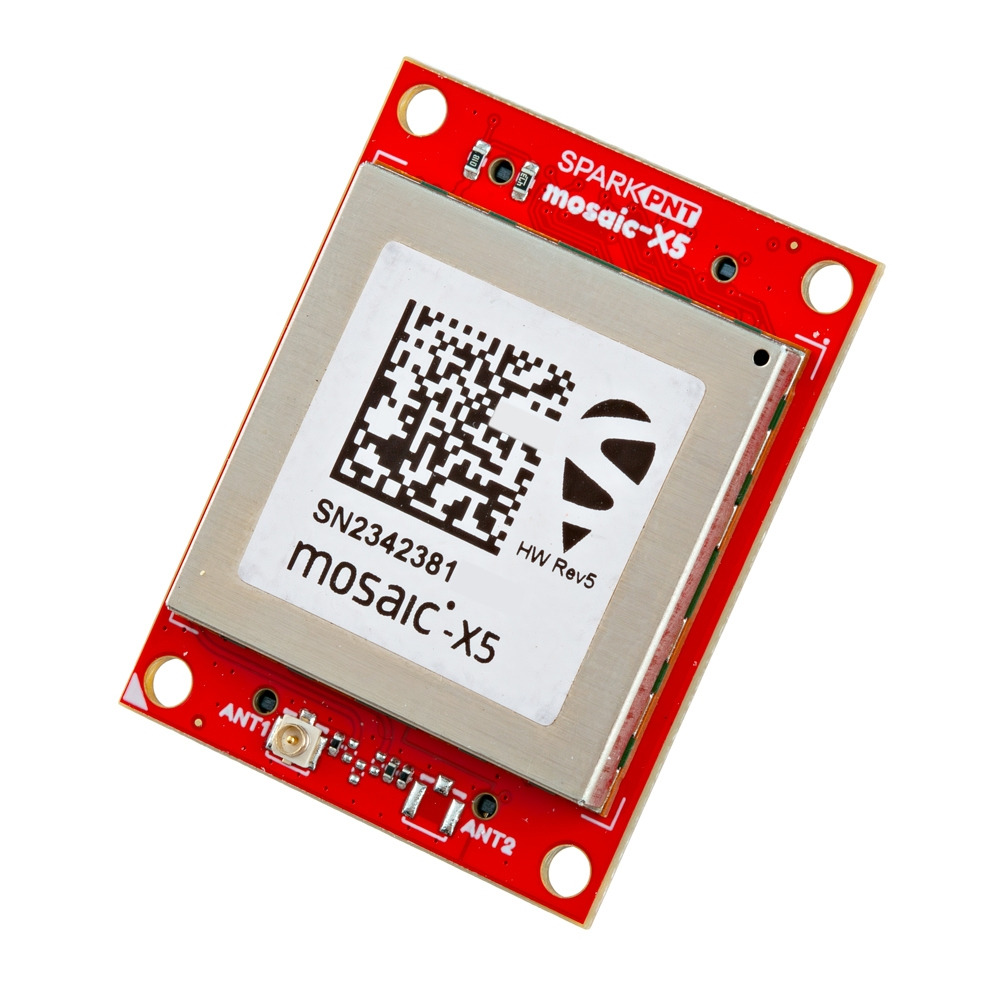

Sparkfun SparkPNT GNSS Flex Module - mosaic-X5

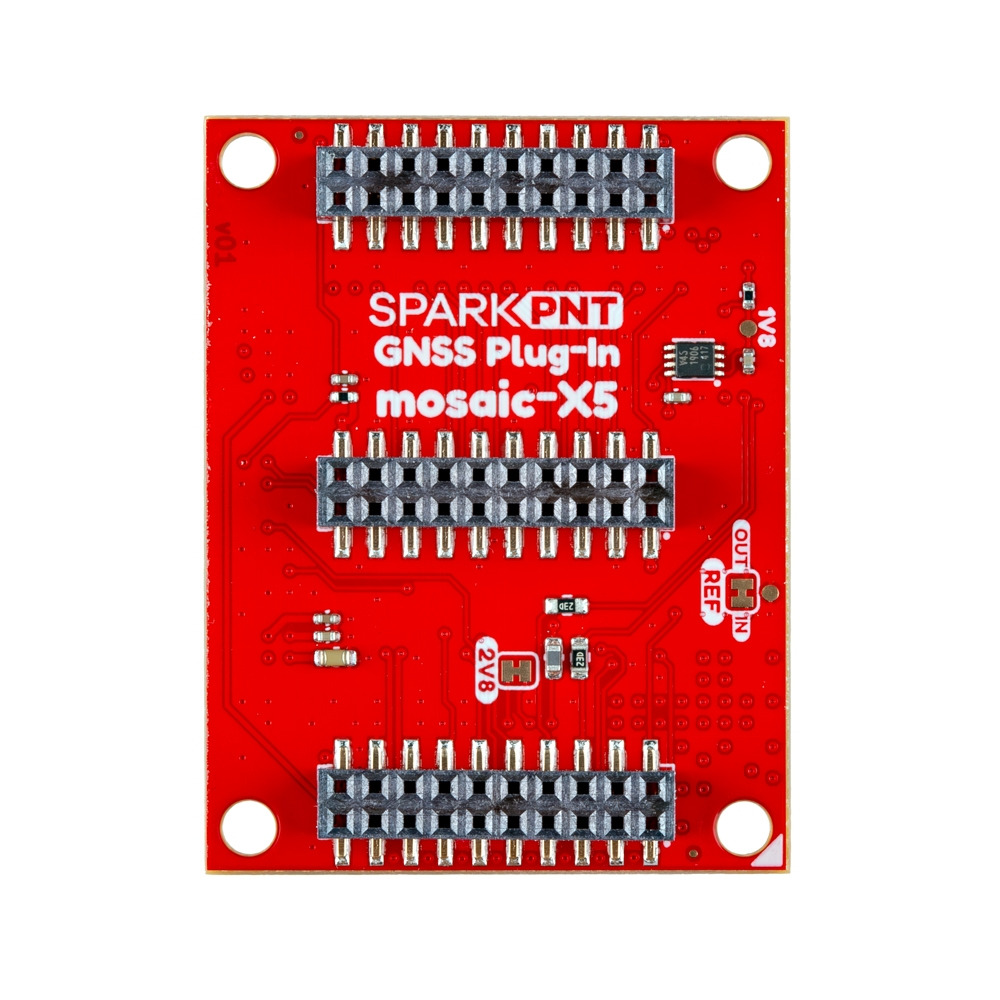

Achieve survey-grade precision with the SparkPNT mosaic-X5 GNSS Flex Module. This high-performance module features the Septentrio mosaic-X5, a compact yet powerful RTK receiver designed for demanding applications in autonomous systems, industrial automation, and scientific research. It connects seamlessly to your carrier board via standardized 2x10-pin headers, offering a variety of interfaces including quad UARTs, USB, and an SD card interface.

The SparkPNT GNSS Flex Module is ideal for applications requiring high precision. With an accuracy of 6mm horizontally and 1cm vertically using RTK, it's perfect for tasks that demand exact measurements, such as surveying, precision agriculture, and autonomous vehicle navigation. Its timing precision down to five nanoseconds makes it suitable for scientific research and synchronization tasks.

One of the standout features is its AIM+ technology, which provides robust anti-jamming and anti-spoofing capabilities. This ensures reliable performance even in environments with significant RF interference, making it a trusted choice for urban settings or industrial sites.

The module supports multi-band and multi-constellation tracking, accessing signals from all major constellations like GPS, GLONASS, Galileo, BeiDou, and NavIC. This ensures maximum satellite availability, leading to faster and more reliable location fixes.

Configuration and control are made easy with a user-friendly browser-based interface accessible via USB or Ethernet. This built-in web server allows for intuitive setup, monitoring, and data logging. For advanced users, a command-line interface (CLI) is available, offering deep configuration options and control.

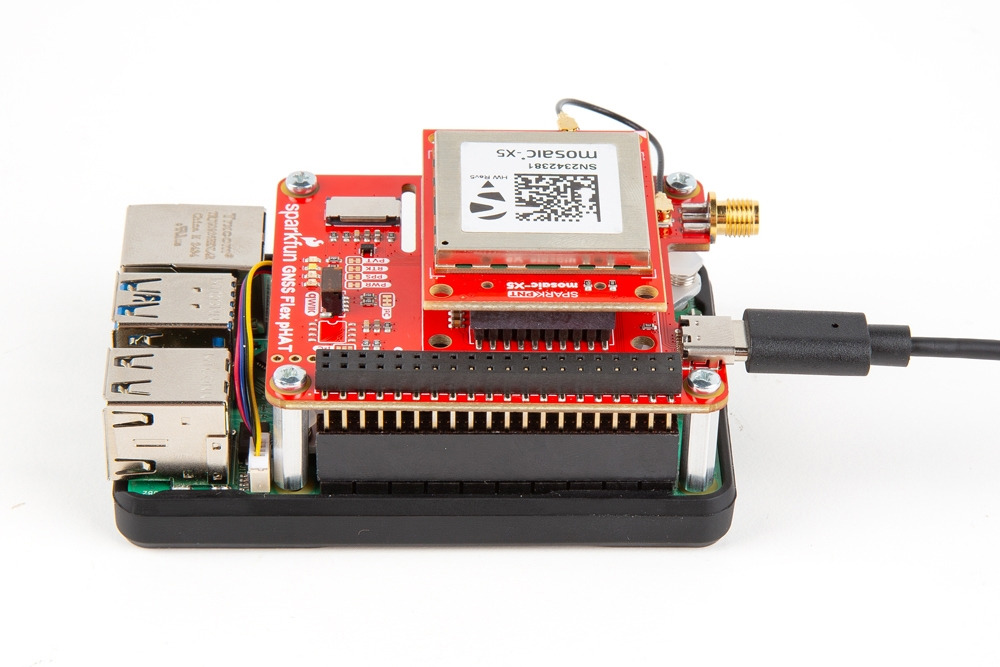

For connectivity, the module requires an external antenna and a GNSS Flex carrier board, available in pHAT and Breakout options. The module features a U.FL connector for the antenna, while the carrier board can provide a sturdier SMA connection. Users can easily connect the module to the carrier board using a short U.FL cable.
