SparkFun Qwiic SHIM Kit for Raspberry Pi

Item number 56859 Brand Sparkfun Model KIT-16987 Share Write a review
SparkFun Qwiic SHIM Kit for Raspberry Pi


The SparkFun Qwiic SHIM Kit for Raspberry Pi is a comprehensive package that facilitates the transformation of your Raspberry Pi into a device compatible with the Qwiic Connect System. The kit includes a SparkFun Qwiic SHIM for Raspberry Pi, a Qwiic SerLCD, an ICM-20948 9DoF IMU Breakout, and the required cables to connect everything. This kit is ideal for those who wish to integrate their Raspberry Pi with the Qwiic Connect System in the easiest way possible.

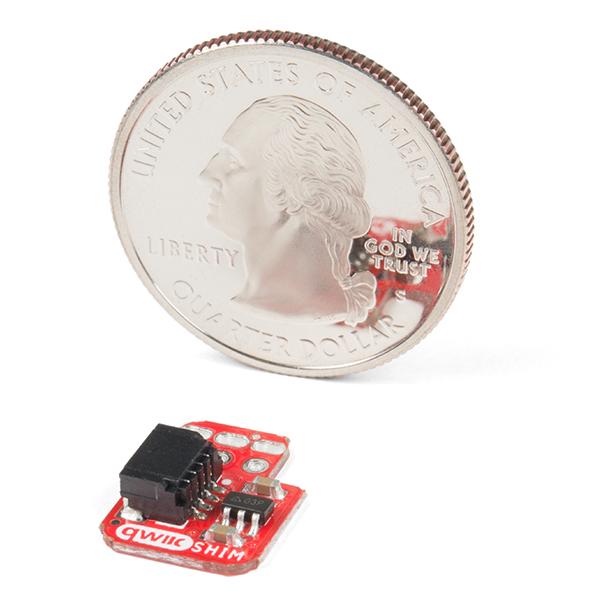

The SparkFun Qwiic SHIM for Raspberry Pi, a key component of this kit, is a compact, easily detachable breakout that enables the addition of a Qwiic connector to your Raspberry Pi. This SHIM allows you to connect directly to the Pi's I2C bus without the need for soldering. Thanks to its slim PCB design, it can be fitted onto your Pi GPIO alongside other HATS. The Qwiic SHIM is perfect if you don't need the full capabilities of the Qwiic pHAT for Raspberry Pi or if you're short on space for another HAT.

Please note that this kit does not include a Raspberry Pi. You will need to purchase a Raspberry Pi development board separately. The Hookup Accessories section provides options for Raspberry Pi, and the Includes tab lists everything that comes with this kit.

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields, and cables designed to make prototyping quicker and less error-prone. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector, which minimizes the required PCB space. The polarized connections prevent incorrect hook-ups.

The kit includes:

  • 1x 16x2 Qwiic Serial LCD
  • 1x Qwiic SHIM for Raspberry Pi
  • 1x 9DoF IMU Breakout - ICM-20948
  • 1x Qwiic Cable 50mm
  • 1x Qwiic Cable 100mm

Useful documents:

  • Qwiic SHIM Kit for Raspberry Pi Hookup Guide
  • Qwiic SHIM Hookup Guide
  • 9DoF IMU (ICM-20948) Breakout Hookup Guide
  • Serial LCD Hookup Guide
  • GitHub
  • Python Modules (i.e., Libraries)
  • Qwiic SHIM Kit for Pi Demo Code
  • Qwiic Resource Page
  • Raspberry Pi Resource Page


Brand information
Brand Sparkfun
More infoQwiic SHIM Kit for Raspberry Pi Hookup Guide - SparkFun Learn
