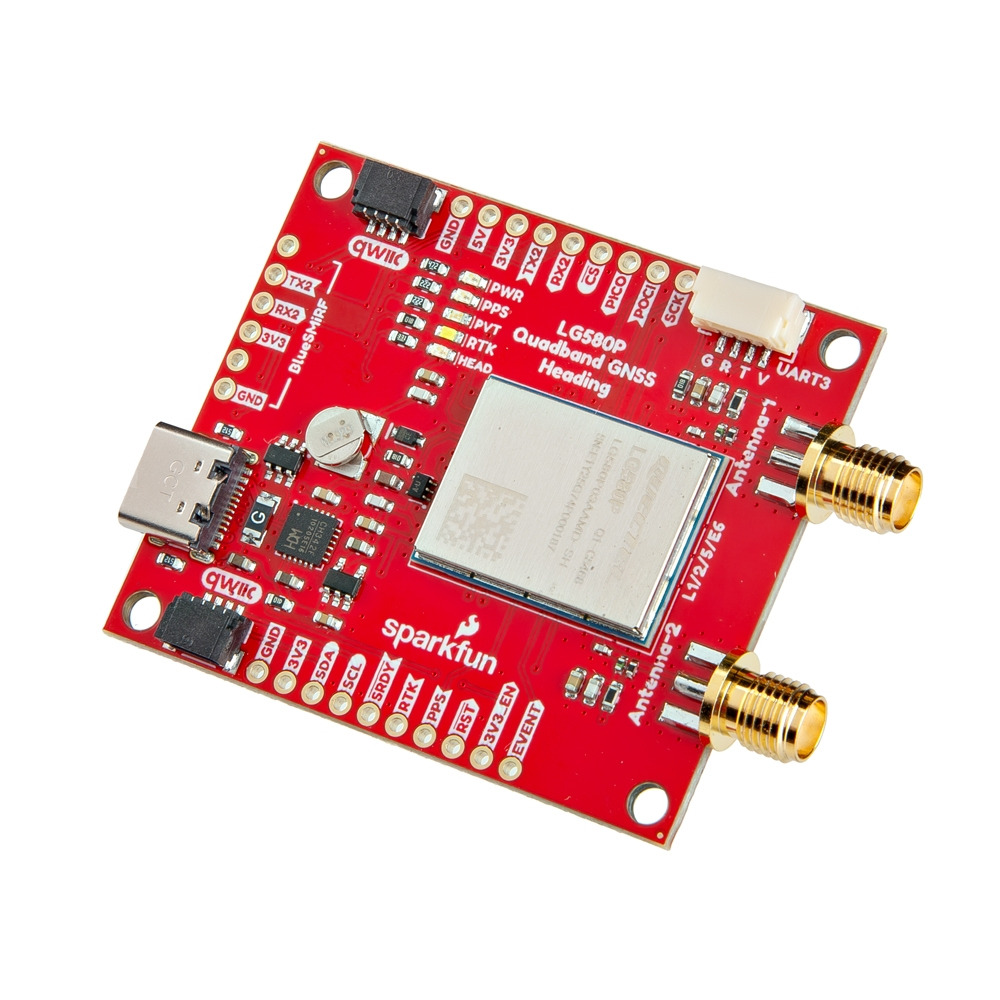

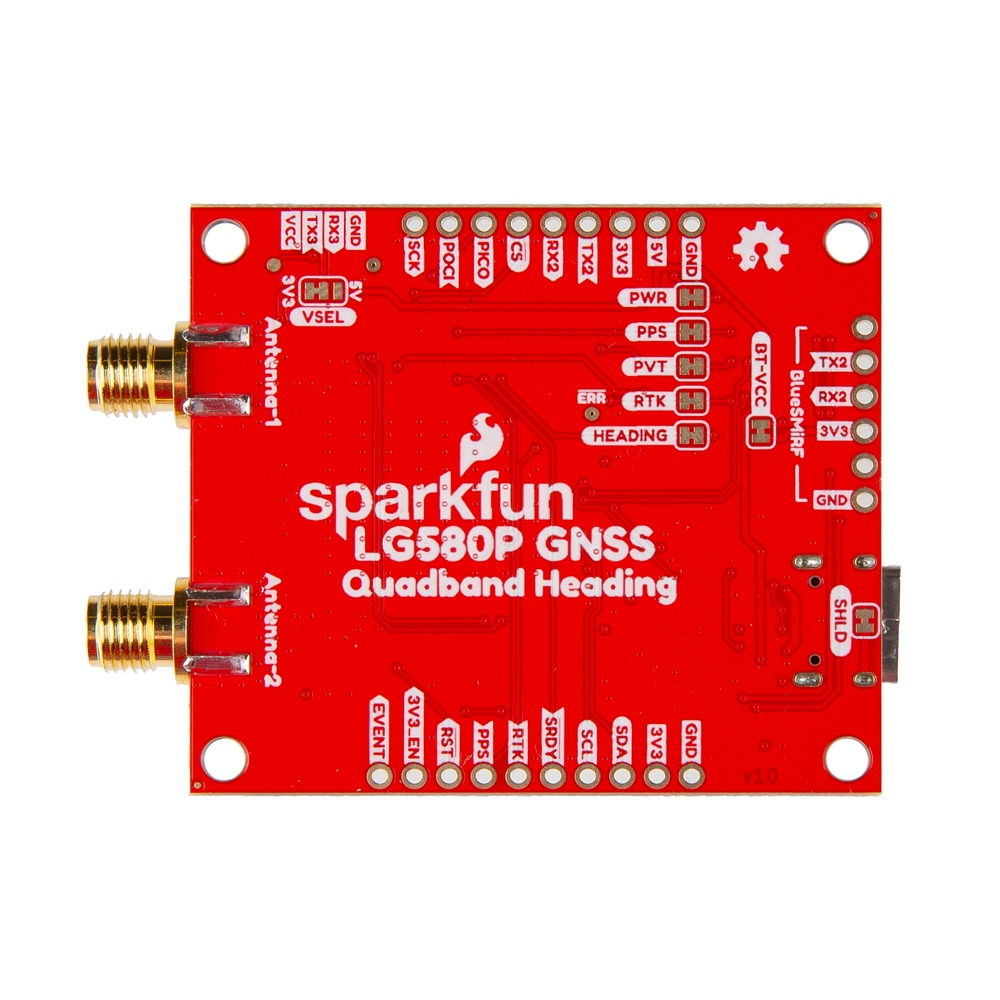

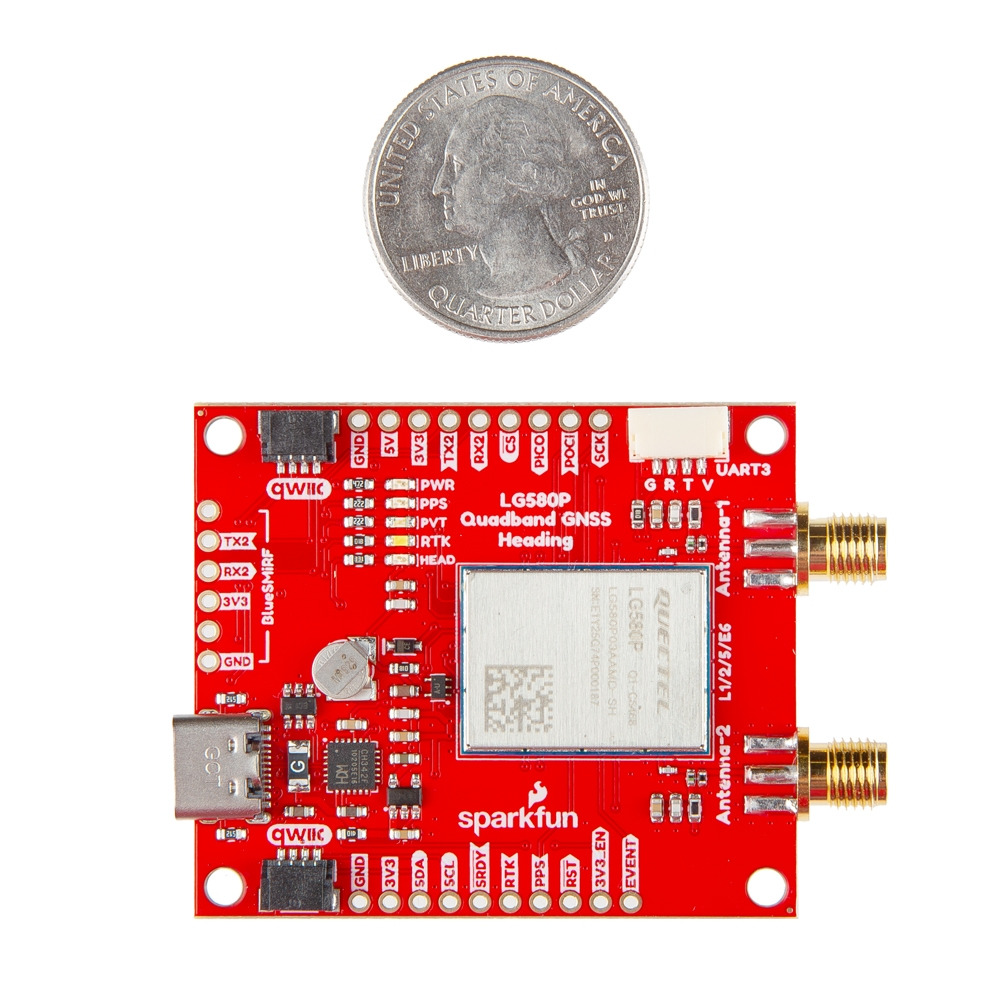

SparkFun Quadband GNSS RTK with Heading Breakout - LG580P (Qwiic)

The SparkFun Quadband GNSS RTK with Heading Breakout, utilizing the Quectel LG580P module, offers a cutting-edge solution for precise positioning and orientation. With centimeter-level RTK accuracy and the ability to determine instantaneous heading, this board is a significant upgrade featuring dual antenna inputs and robust quad-band reception.

Imagine navigating with precision from a standstill. The LG580P excels here by using two GNSS antennas to instantly calculate heading upon activation, eliminating the need for movement to determine direction. This feature is indispensable for applications like autonomous driving, precision agriculture, and robotics, where immediate and accurate orientation is crucial.

This module is a technical powerhouse, capable of tracking signals from the L1, L2, L5, and L6/E6 bands across multiple constellations, including GPS, GLONASS, Galileo, BDS, QZSS, and NavIC. It supports a comprehensive range of correction services, such as RTK and RTCM corrections and SBAS augmentation, ensuring rapid convergence and high precision in positioning.

Engineered for challenging environments, the LG580P employs advanced interference detection and elimination algorithms to enhance signal reception even in complex electromagnetic conditions. Its sophisticated RTK and heading algorithms provide reliable positioning in urban canyons or dense forests. With an update rate of up to 20 Hz and low power consumption, it is perfect for high-precision navigation tasks.

Connectivity is straightforward with the LG580P. It includes solder-free Qwiic connectors for I²C communication and breaks out interfaces such as UART, SPI, and CAN. Note that support for the I²C interface is under development and will be available through a future firmware update, and some PPP services corrections are yet to be implemented.
