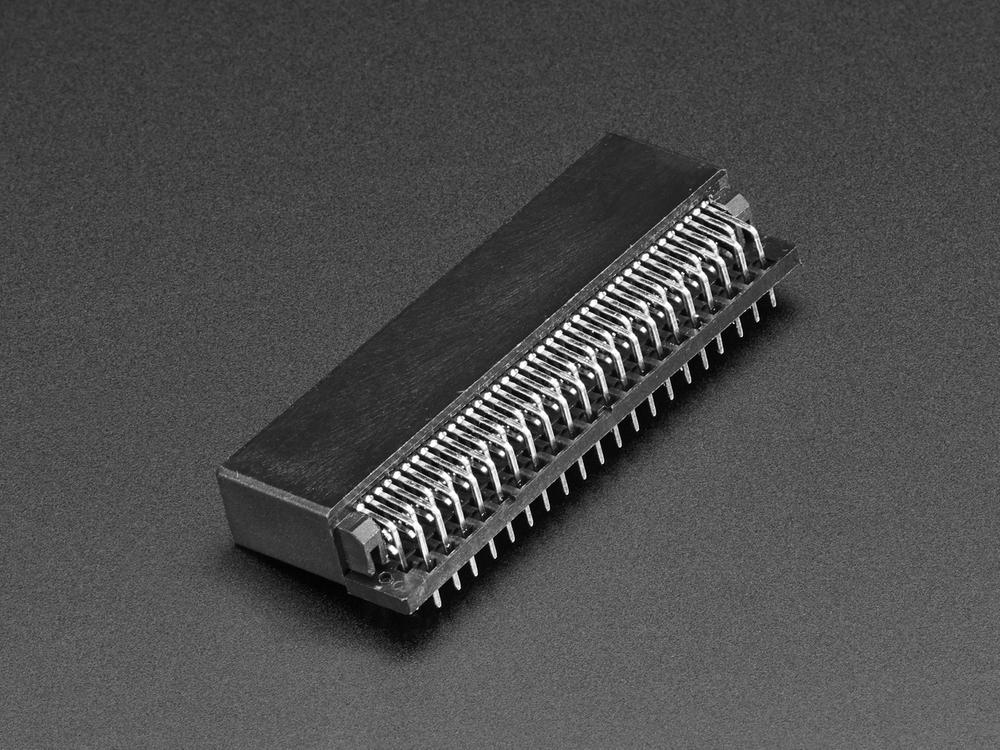

Adafruit 2x40 Right Angle Edge Connector for micro:bit

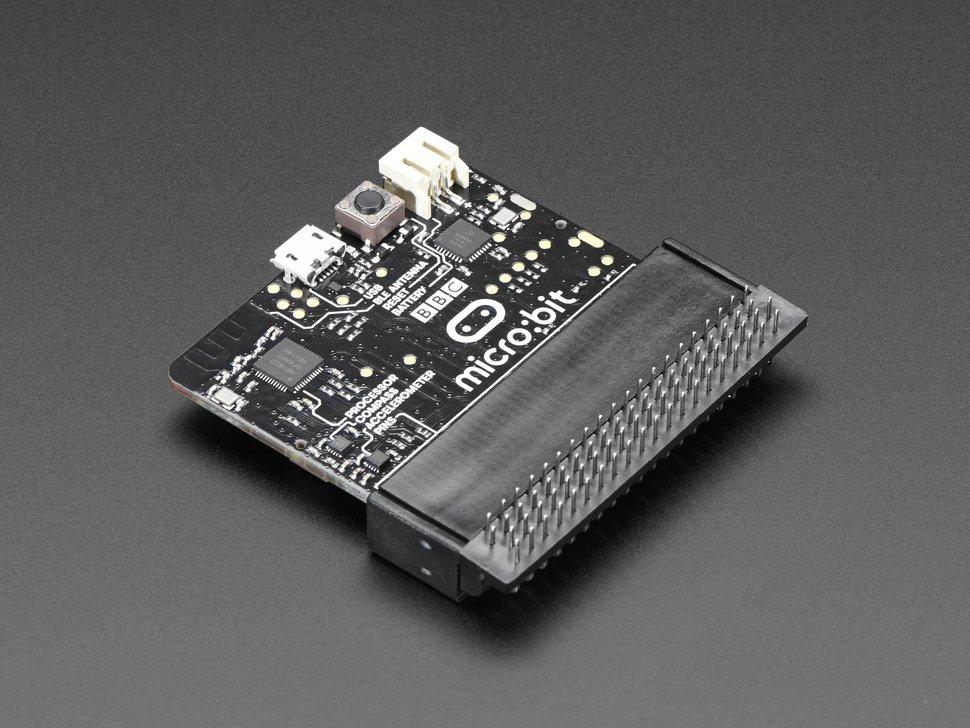

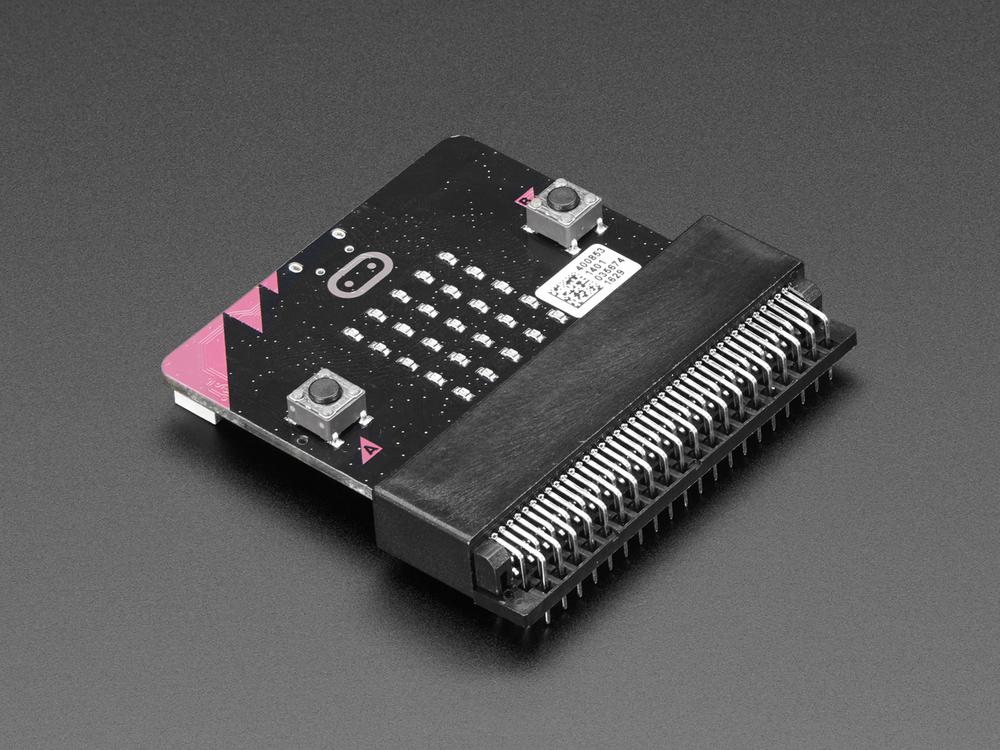

This connector efficiently aligns with the edge contacts of a BBC micro:bit, providing seamless integration and connectivity. It features 80 pins, but due to varying contact widths, some micro:bit contacts map to multiple pins, ensuring reliable connections.

Access all crucial pins located on the micro:bit's bottom edge through this meticulously designed connector. Despite its 80 pins, the design prioritizes the most essential connections. Note that the back half of the pins remain unused, focusing functionality where it matters most.

The connector's configuration is ideal for custom PCBs, offering flexibility and precision for intricate projects. For exact pin spacing and orientation, reference the datasheet to optimize setup. Enhance your micro:bit projects with this versatile edge connector.
