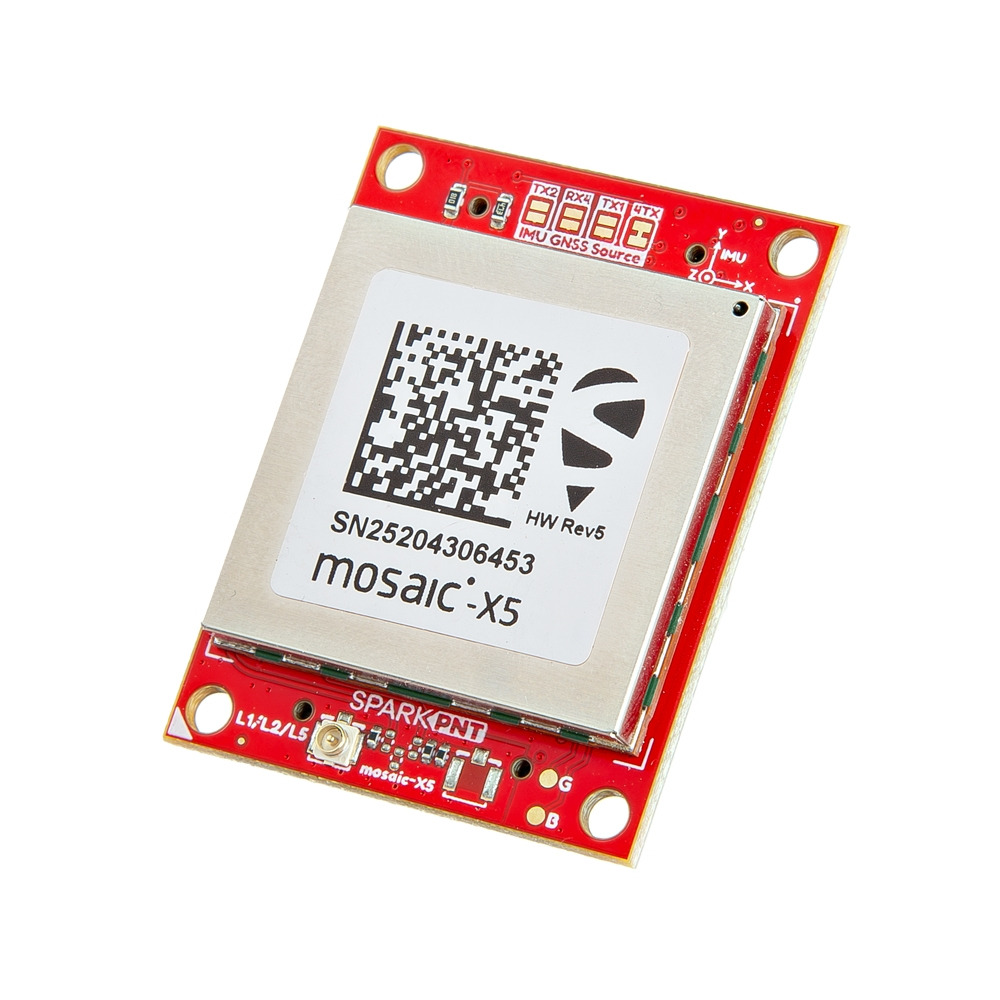

Sparkfun SparkPNT GNSS Flex Module - mosaic-X5 & IM19 IMU

Achieve unparalleled positioning precision with the SparkPNT GNSS Flex Module, featuring the Septentrio mosaic-X5 RTK receiver and the high-precision IM19 IMU. This advanced module offers millimeter-level accuracy and full tilt compensation, making it ideal for professional surveying, industrial robotics, and critical autonomous systems. Designed for easy integration, it connects to your carrier board via standardized headers, supporting interfaces such as quad UARTs, USB, and an SD card slot.

This module excels in a variety of applications. For surveying, its tilt compensation feature eliminates the need for perfectly vertical survey poles, allowing for efficient and flexible field data collection. In industrial robotics and autonomous systems, the module's ability to maintain navigation accuracy even during GNSS signal loss ensures reliable operation in urban or obstructed environments.

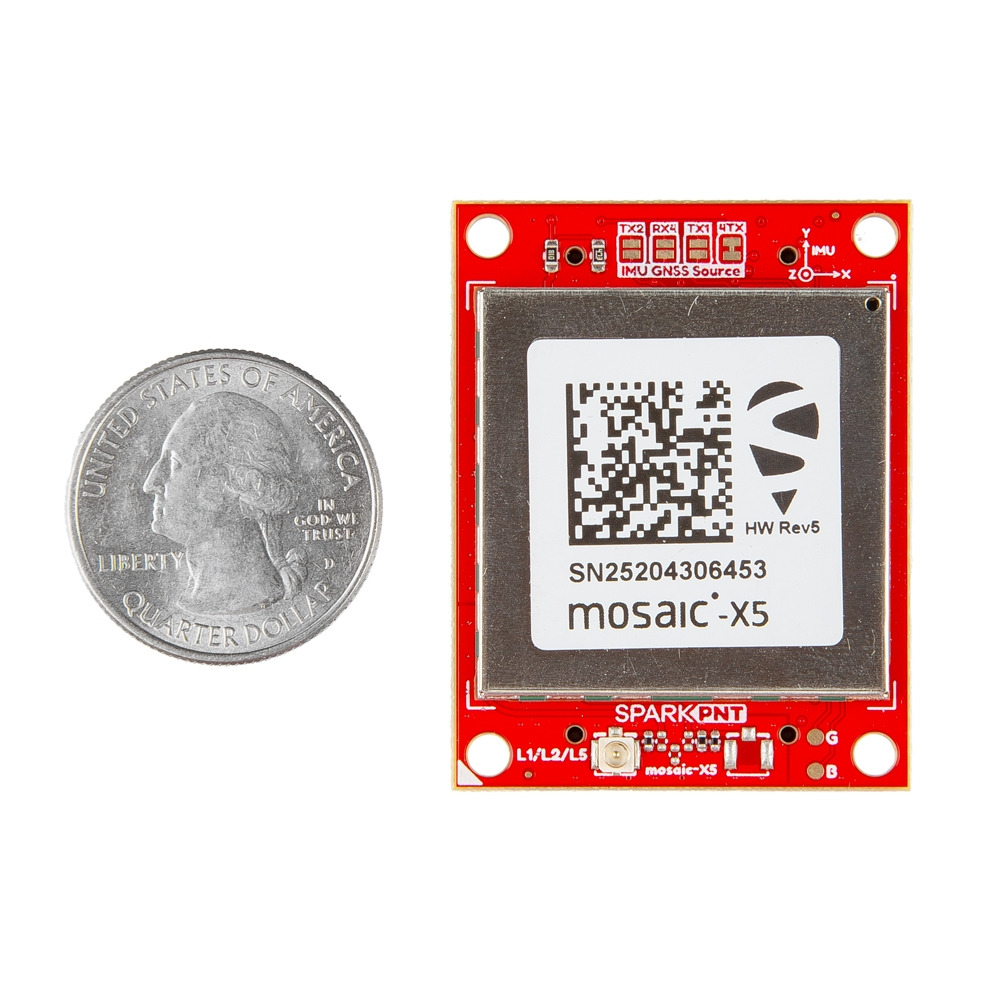

One of the standout features is the Septentrio mosaic-X5's survey-grade RTK precision, offering 6mm horizontal and 1cm vertical accuracy. The module's AIM+ technology provides robust anti-jamming and anti-spoofing capabilities, ensuring reliable performance in noisy RF environments. With multi-band and multi-constellation tracking, it maximizes satellite availability for fast and reliable fixes.

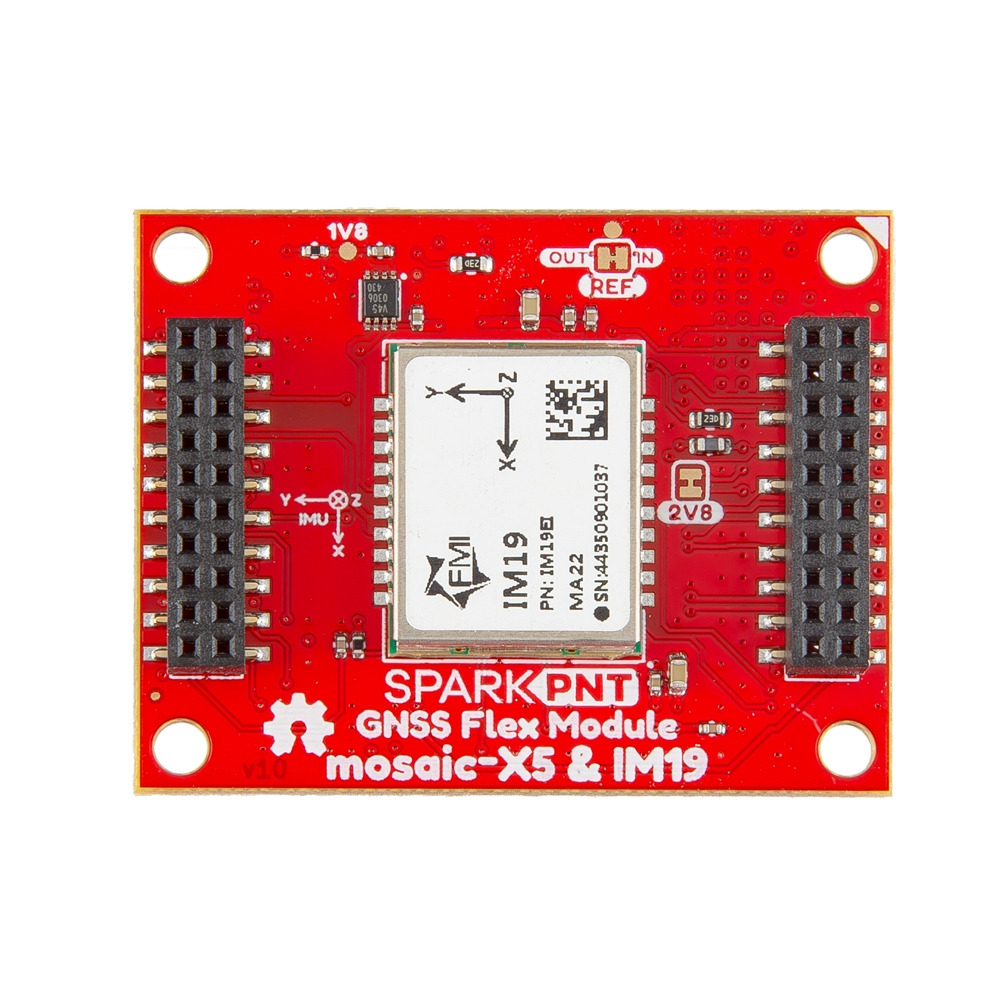

The integration of the IM19 IMU with the GNSS receiver enables high-precision attitude measurements and advanced navigation features. The module delivers roll and pitch accuracy to within 0.05 degrees, and its sensor fusion technology provides continuous navigation through dead reckoning, even during brief GNSS outages.

Designed for user-friendly operation, the module offers a browser-based interface for intuitive setup and monitoring, and a command-line interface for advanced configuration. Pre-configured for seamless integration, the module's communication ports are linked to provide fully compensated position and attitude data, with easy reconfiguration options available.

To use the module, an external antenna and GNSS Flex carrier board are required. It features a U.FL connector for connecting an external antenna, and for a more robust connection, an SMA connector on a GNSS Flex pHAT carrier board can be utilized, offering flexibility in setup to suit specific project needs.
