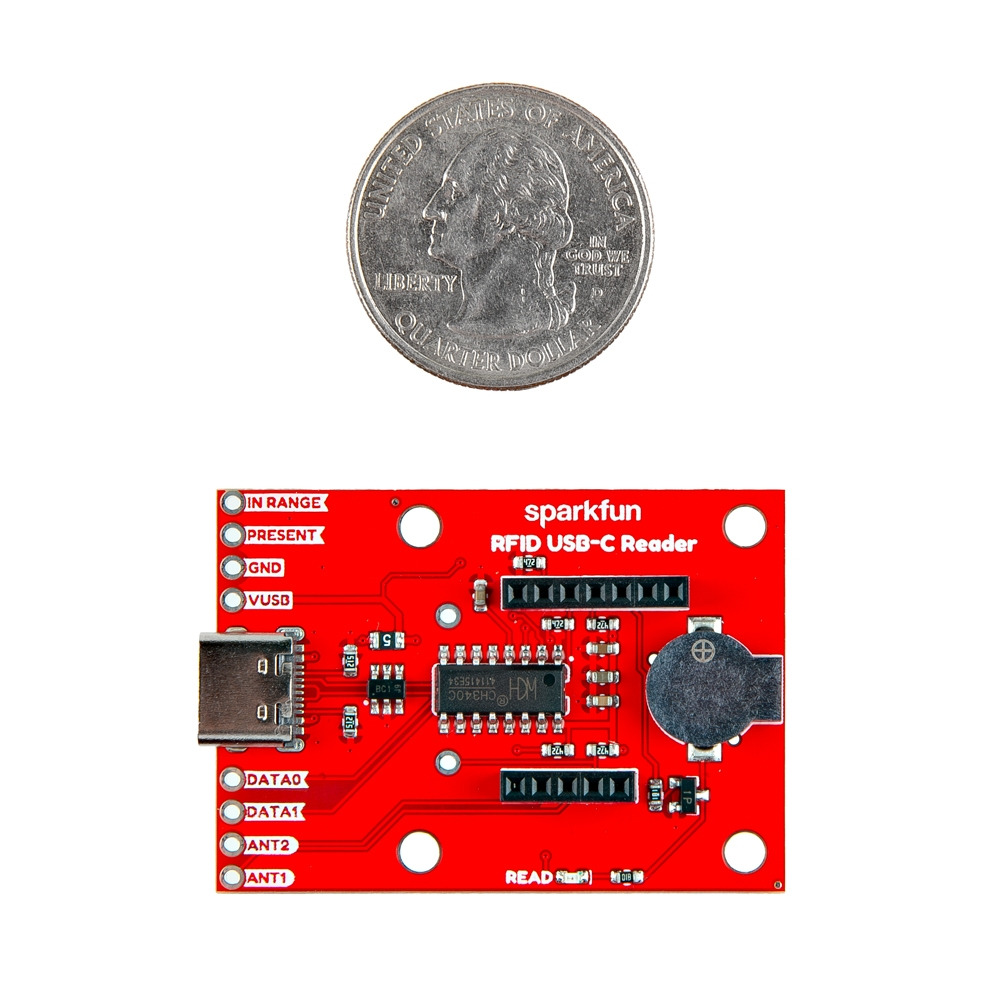

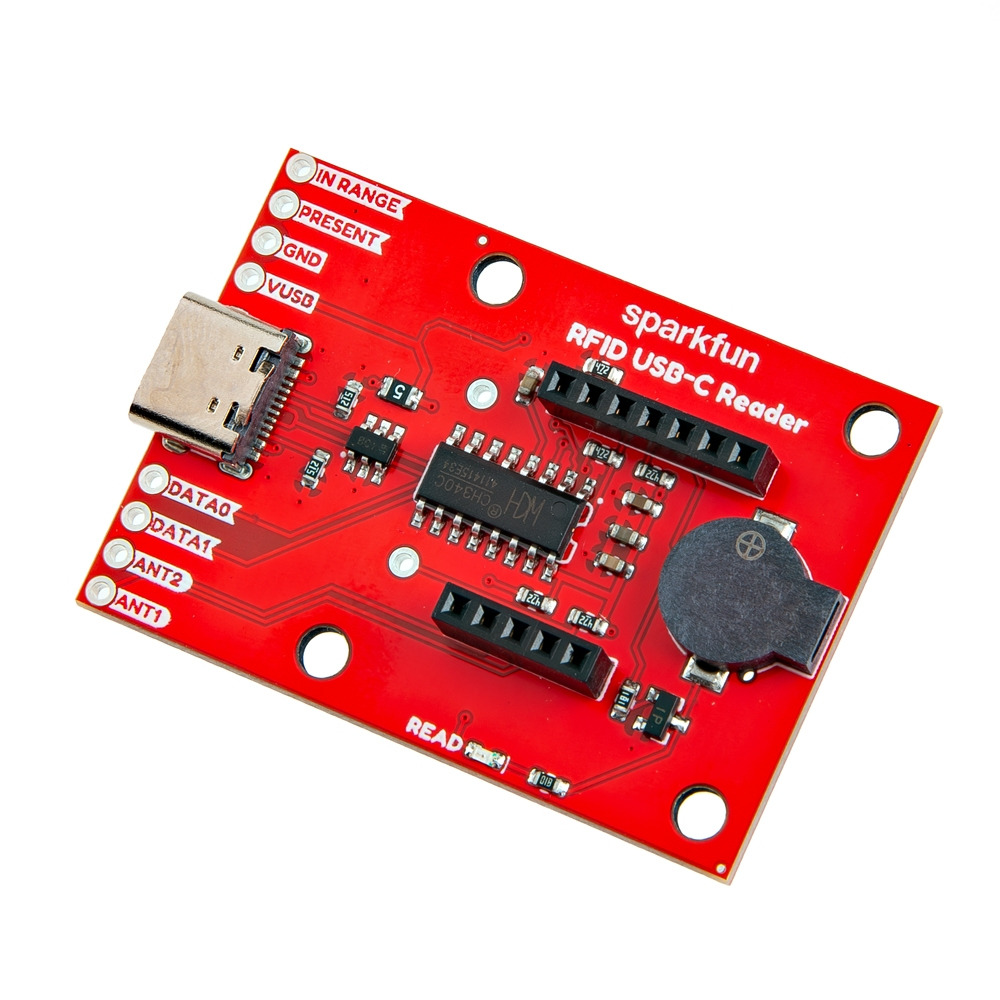

SparkFun RFID USB-C Reader

Effortlessly connect low-frequency RFID tags to your computer with the SparkFun RFID USB-C Reader. This enhanced scanning solution is compatible with ID Innovation's ID-12LA and ID-20LA reader modules, featuring a CH340C USB-to-serial chip and a modern USB-C connection. It simplifies the process by translating module outputs directly to your terminal program, eliminating the need for complex programming. Note that ID-3XX modules may require an external antenna, and Mifare and ID-3XX models marked with “MF” are not compatible with this board.

Experience streamlined RFID integration with this versatile reader. It offers multiple output formats, allowing you to switch between ASCII, Magnetic Emulation, and Wiegand26 using onboard jumpers. This flexibility ensures compatibility with a wide range of systems and environments.

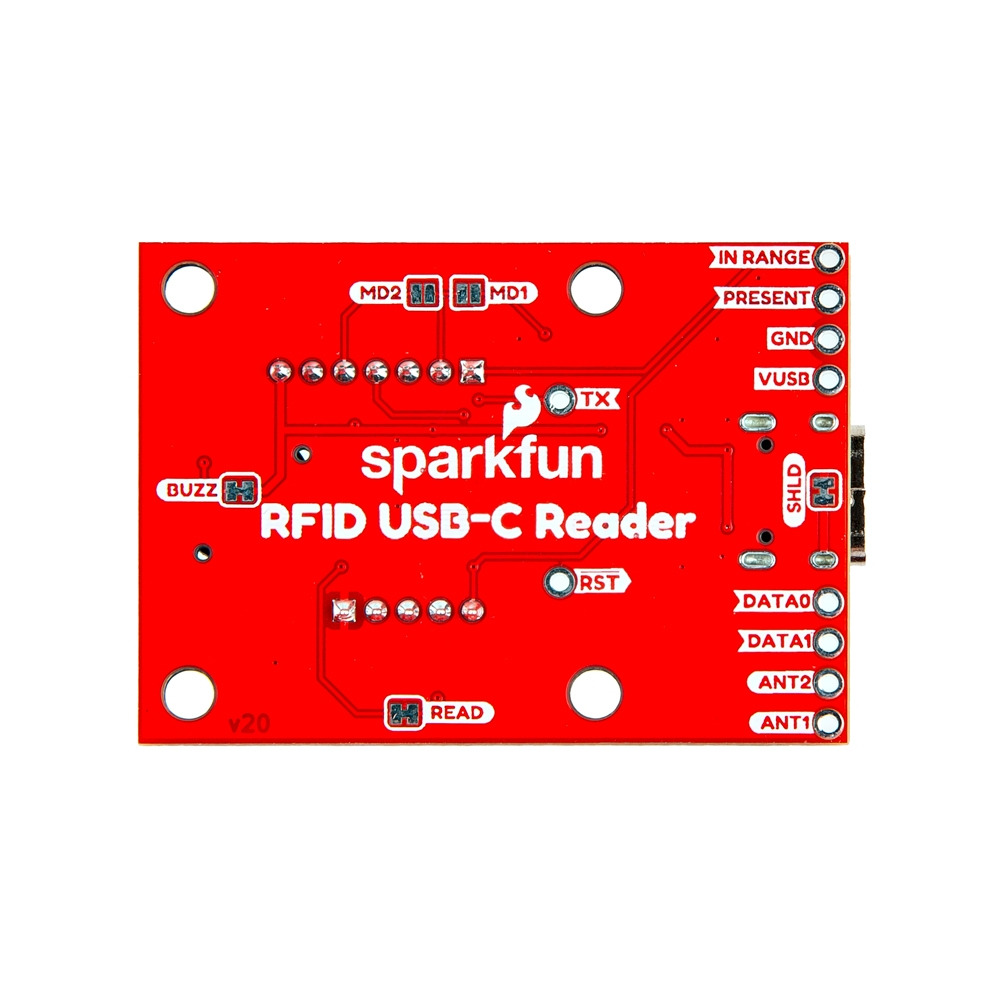

Benefit from audio and visual confirmation with an integrated LED and magnetic buzzer that provide instant feedback when a tag is successfully scanned. For projects requiring stealth, the LED and buzzer can be disabled via solder jumpers, offering customizable feedback options.

Protect your hardware with added safety features, including a 5V/1A resettable fuse and ESD protection diodes on the USB data pins, safeguarding against unexpected voltage spikes.

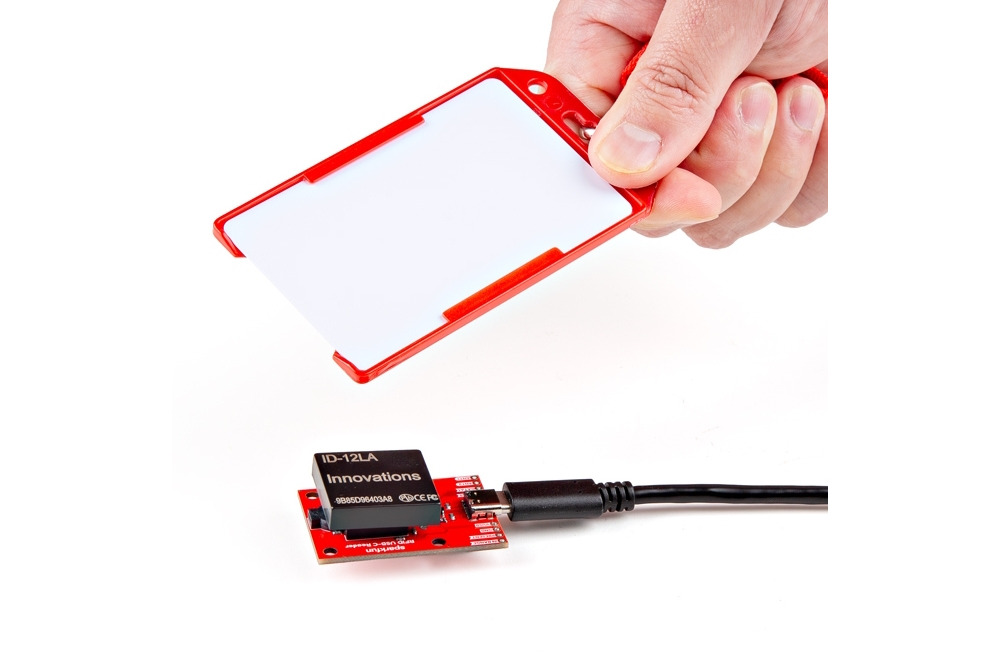

Getting started is a breeze. Simply insert your compatible RFID module into the 2mm headers, connect the USB-C cable to your computer, and launch a terminal program set to 9600bps 8-N-1. Once set up, scanning a tag will immediately display its ID on your screen, making the reading process intuitive and efficient.
