SparkFun Red Vision Camera Board - HM01B0 (Color)

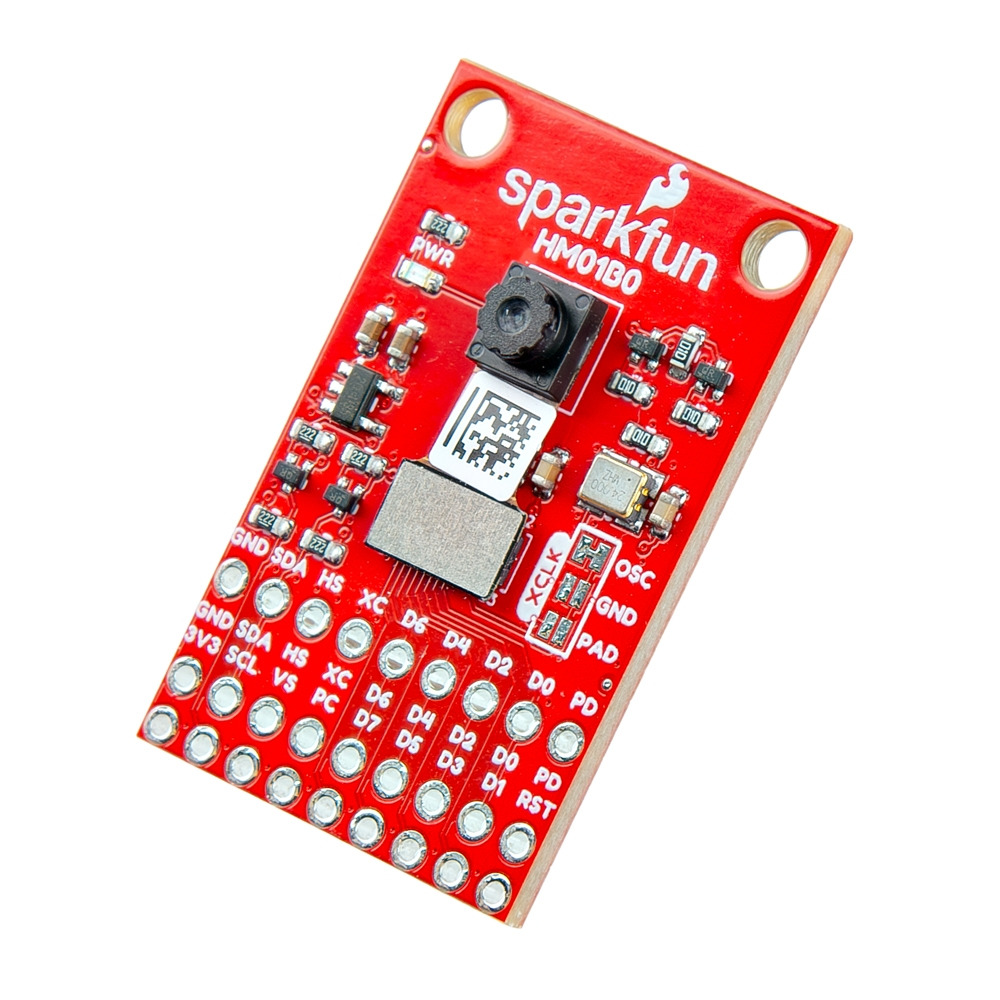

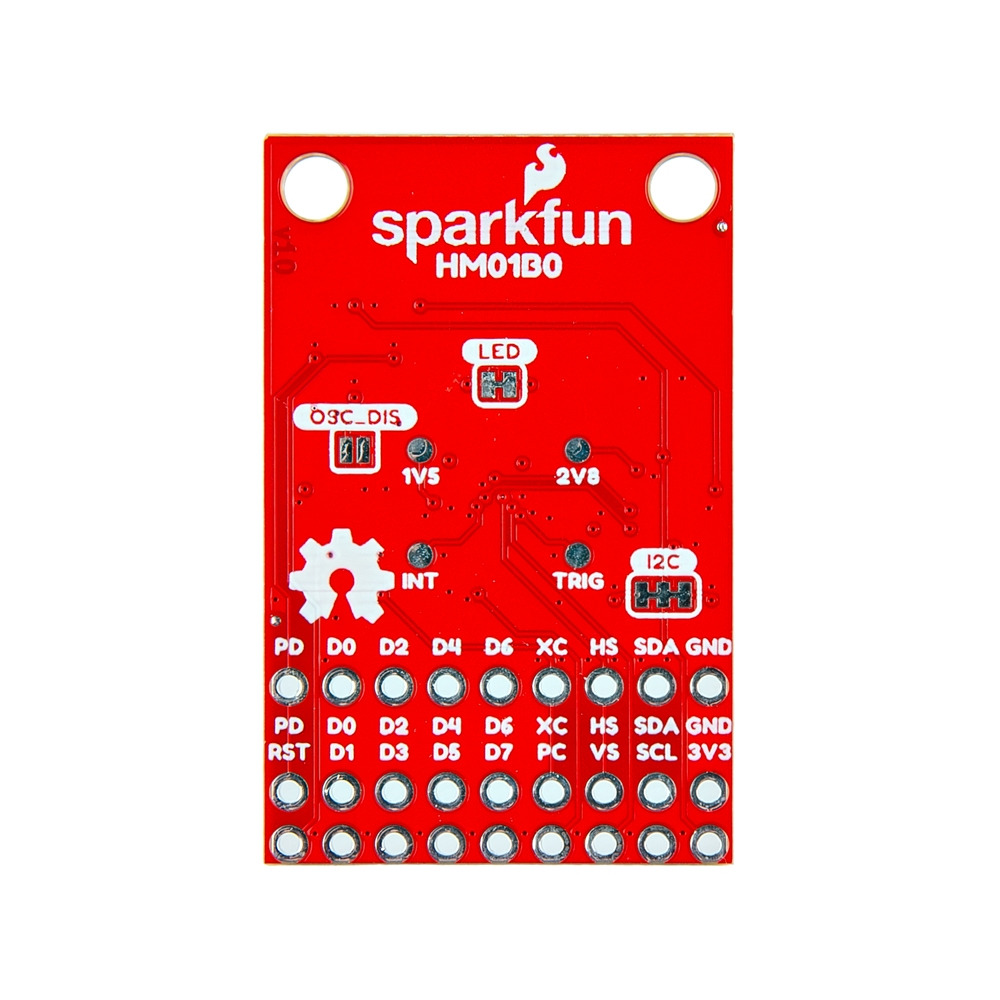

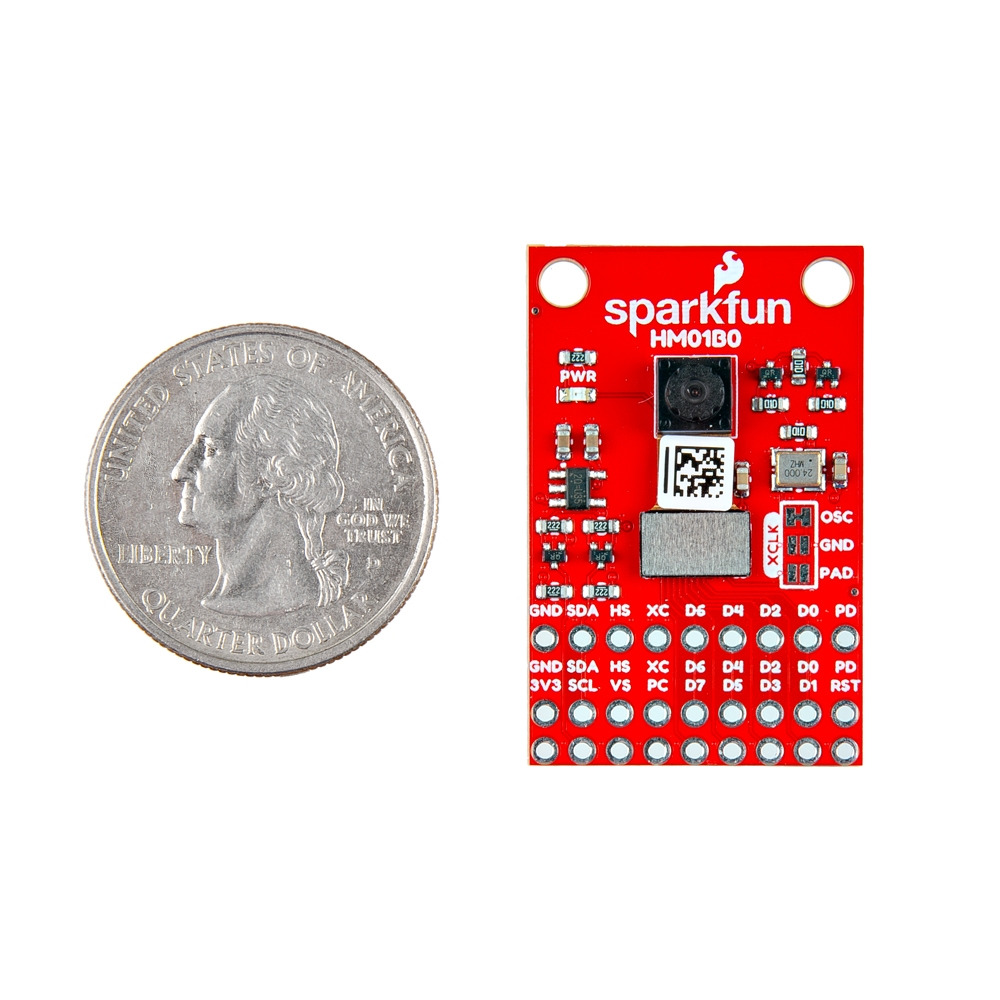

The SparkFun Red Vision Camera Board - HM01B0 is a compact breakout board designed for the HM01B0 320 x 320 color camera module from Himax©. This board provides easy access to all the pins from the camera module's ribbon cable through three sets of 2.54mm-spaced plated through-hole headers. It supports frame rates up to 51 frames per second at full resolution and up to 60 frames per second in a windowed mode. The module also features a 2x2 monochrome binning mode for up to 120 frames per second, motion detection with interrupt output, and a configurable data interface for synchronizing multiple cameras.

The camera board excels in projects requiring live image processing, such as robotics and automation. It can be paired with the SparkFun Red Vision Touch Display for Pico to enhance the Experiential Robotics Platform (XRP) Kit. With the integration of the OpenCV image processing library, users can implement advanced features like object and contour detection, making it ideal for educational and experimental purposes.

One of the standout features is its motion detection capability, which can be programmed to activate the camera upon sensing movement, adding a layer of interactivity to your projects. Additionally, the board's ability to handle multiple frame synchronization makes it suitable for applications requiring composite imaging from multiple sources.

The board offers flexibility with three oscillator options: an on-board 24MHz oscillator, the camera module's internal 48MHz oscillator, or an external clock input. This flexibility allows users to tailor the board to specific project needs, ensuring optimal performance. The voltage regulation feature ensures safe operation by adjusting the supply voltage to the required 2.8V, making it a reliable choice for various electronic projects.
