SparkFun Quadband GNSS RTK Breakout - LG290P (Qwiic)

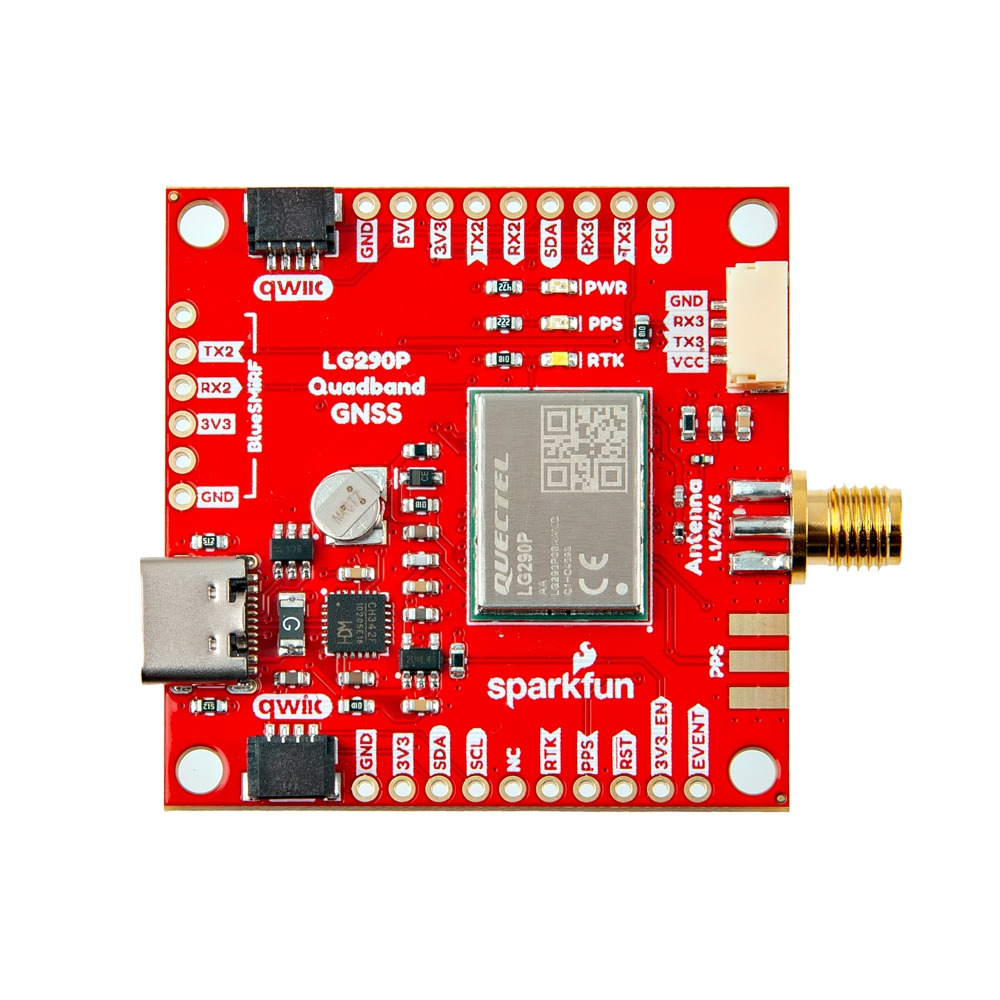

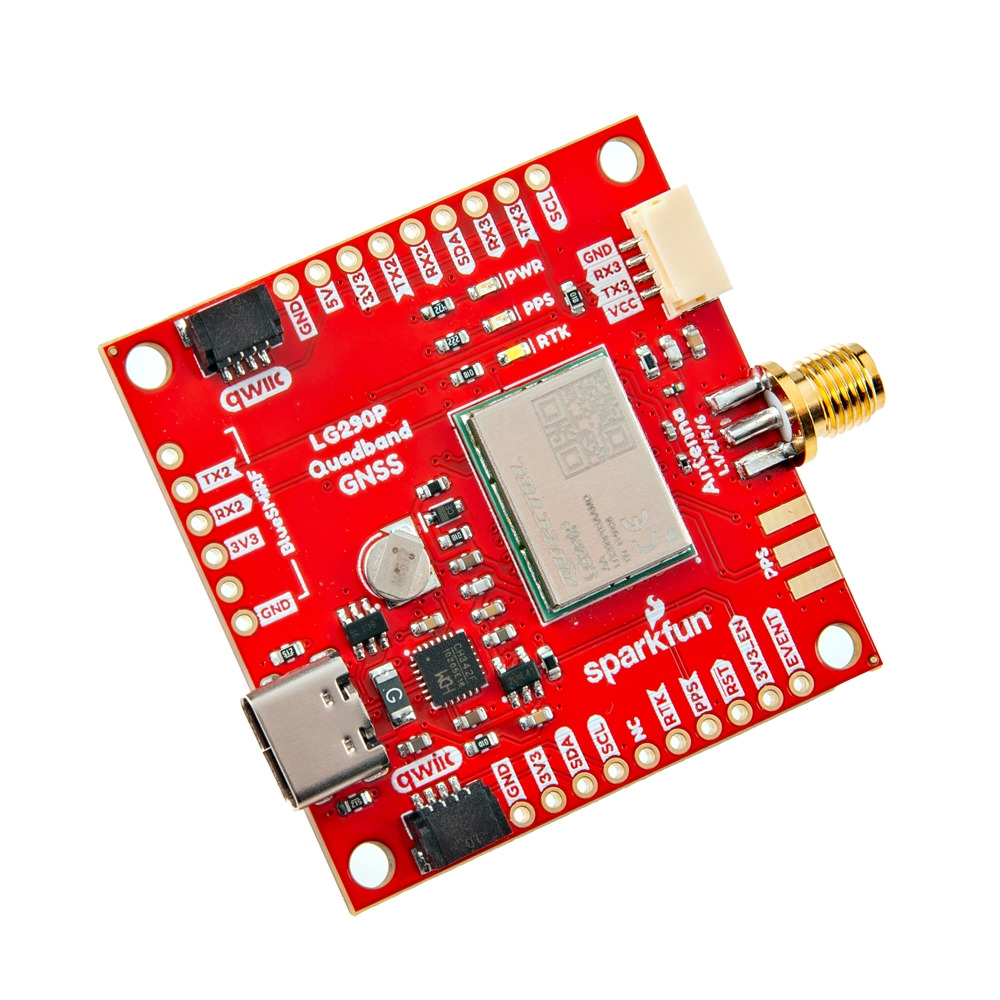

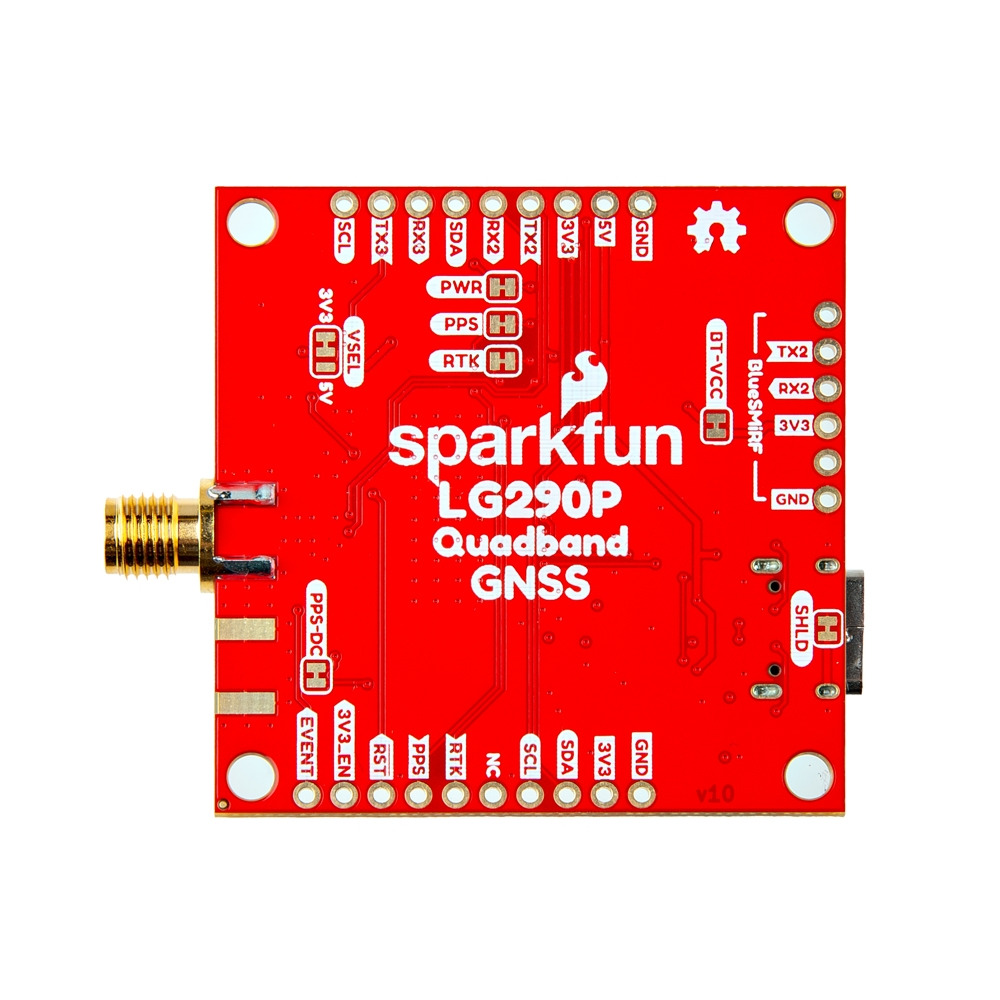

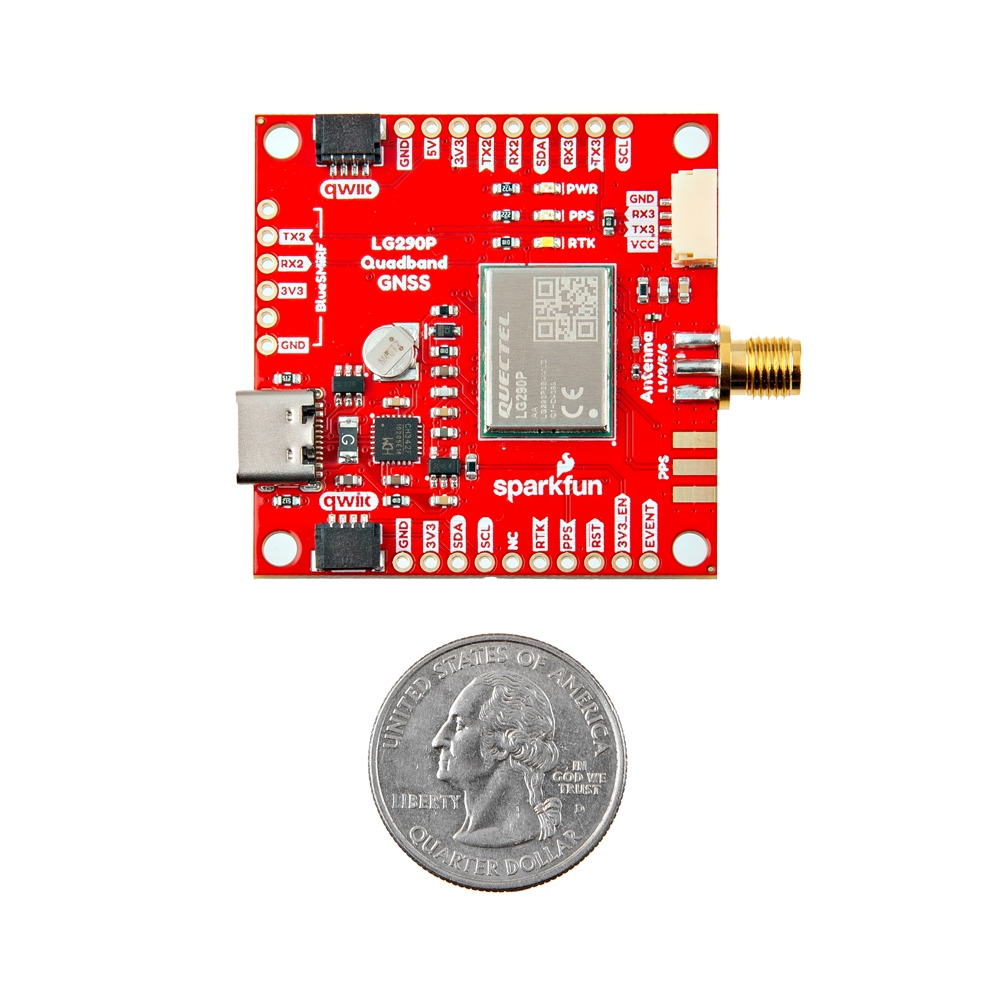

The SparkFun Quadband GNSS RTK Breakout - LG290P (Qwiic) is a compact and versatile module that brings exceptional positioning accuracy to your projects. Equipped with the Quectel LG290P GNSS module, it provides multi-constellation, high-precision RTK GNSS reception across L1, L2, L5, and L6/E6 frequency bands. The board maintains the same dimensions and pin layout as the popular SparkFun GPS-RTK-SMA Breakout, ensuring compatibility and ease of integration. It supports connections via UART, SPI, and I2C interfaces, with a convenient Qwiic connector for straightforward setup.

The LG290P module is perfect for applications requiring precise navigation, such as intelligent robotics, UAVs, precision agriculture, mining, surveying, and autonomous navigation. Its ability to receive signals from multiple GNSS constellations, including GPS, GLONASS, Galileo, BDS, QZSS, and NavIC, ensures robust performance even in challenging environments.

One of the standout features of this module is its professional-grade NIC anti-jamming unit, which effectively detects and eliminates interference, enhancing signal reception in complex electromagnetic settings. This makes it particularly useful in urban areas or locations with dense tree cover, where maintaining signal integrity is crucial.

The board's high-precision capabilities are complemented by low power consumption, making it an ideal choice for applications where efficiency is key. While currently supporting the UART interface, it offers flexibility with three UART ports accessible via a USB-C connector, a 4-pin locking JST connector, and a BlueSMiRF 6-pin header.

Although some PPP services are still under development, the module's support for SBAS augmentation systems and RTK corrections ensures fast convergence times and reliable performance. Whether you're developing cutting-edge technology or enhancing existing systems, this breakout board provides a reliable and precise solution for your positioning needs.
