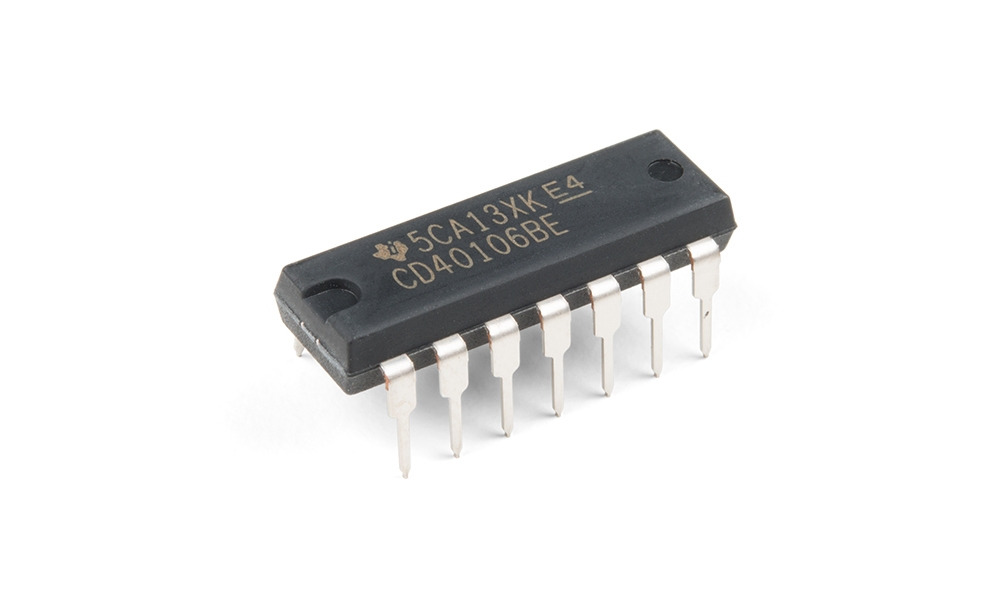

Sparkfun Schmitt Trigger - CD40106B

The CD40106BE is a versatile integrated circuit featuring six Schmitt-trigger circuits, each operating as an inverter with distinct trigger points for both rising and falling signals. This unique functionality, known as hysteresis, ensures stable performance by defining a voltage difference between the positive-going and negative-going signals.

One of the primary applications of this component is in signal conditioning, where it effectively cleans up noisy input signals, transforming them into clean, digital outputs. This makes it an excellent choice for projects involving sensors or any input that might be subject to electrical interference.

In addition to signal conditioning, the Schmitt-trigger circuits are ideal for use in waveform shaping, where they can convert a sine wave or other analog signals into a square wave. This is particularly useful in creating clock signals or timing circuits, ensuring consistent and reliable operation.

The CD40106BE's ability to handle varying input signals with precision is a standout feature, making it indispensable for designers looking to implement robust digital logic systems. Its compact design and efficient functionality provide a reliable solution for a wide range of electronic applications.
