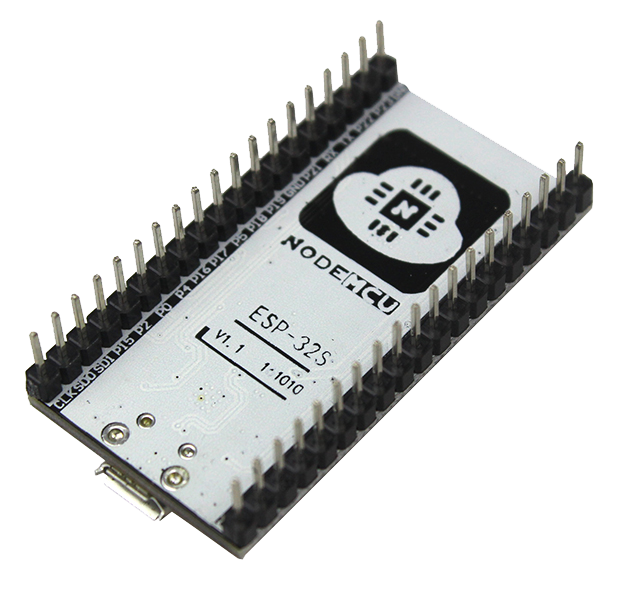

NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board

Item number 52435 Share
NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board
€ 13,30€ 11,00 Excl. BTW (NL)
Ordered before 23:59, shipped today. ... pieces in stock
Show volume discounts Shipped from € 2,95 (NL) 30 days cooling-off
+ + =
Frequently bought together Total price:

Description

The NodeMcu ESP-32S is an open-source board with built-in ESP-WROOM-32 WIFI module. This is not a weakness like the Arduino's, with 512kb of memory and a dual-core processor at 240Mhz, there is not a shortage of sources. In addition, the new 32-bit microcontroller has an integrated Bluetooth 4.2 (BLE) module. This sign is extremely suitable for starting IoT (Internet of Things) applications. Programming the NodeMcu is slightly different than normal, with the API similar to NodeJS, this module receives the commands through the LUA scripts that are uploaded.

Drivers for the built-in 2102 serial chip can be found here
https://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

Properties
Wireless 802.11 b / g / n standard
Supports STA / AP / STA + AP
Standard on 9600 baud

Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 channel ADC
Power input: 4.5V ~ 9V (10VMAX), USB powered
Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
Transfer rate: 110-460800bps
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
