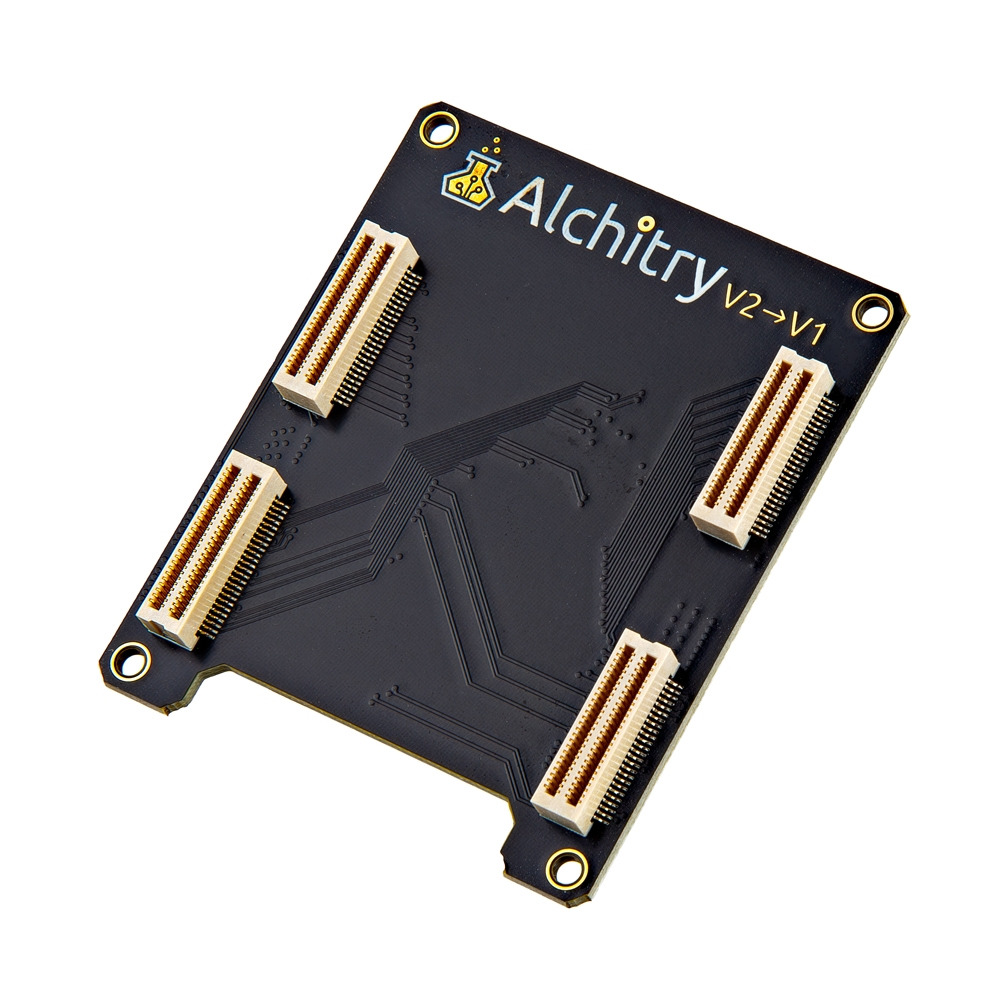

Sparkfun Alchitry V2 -> V1 Adapter

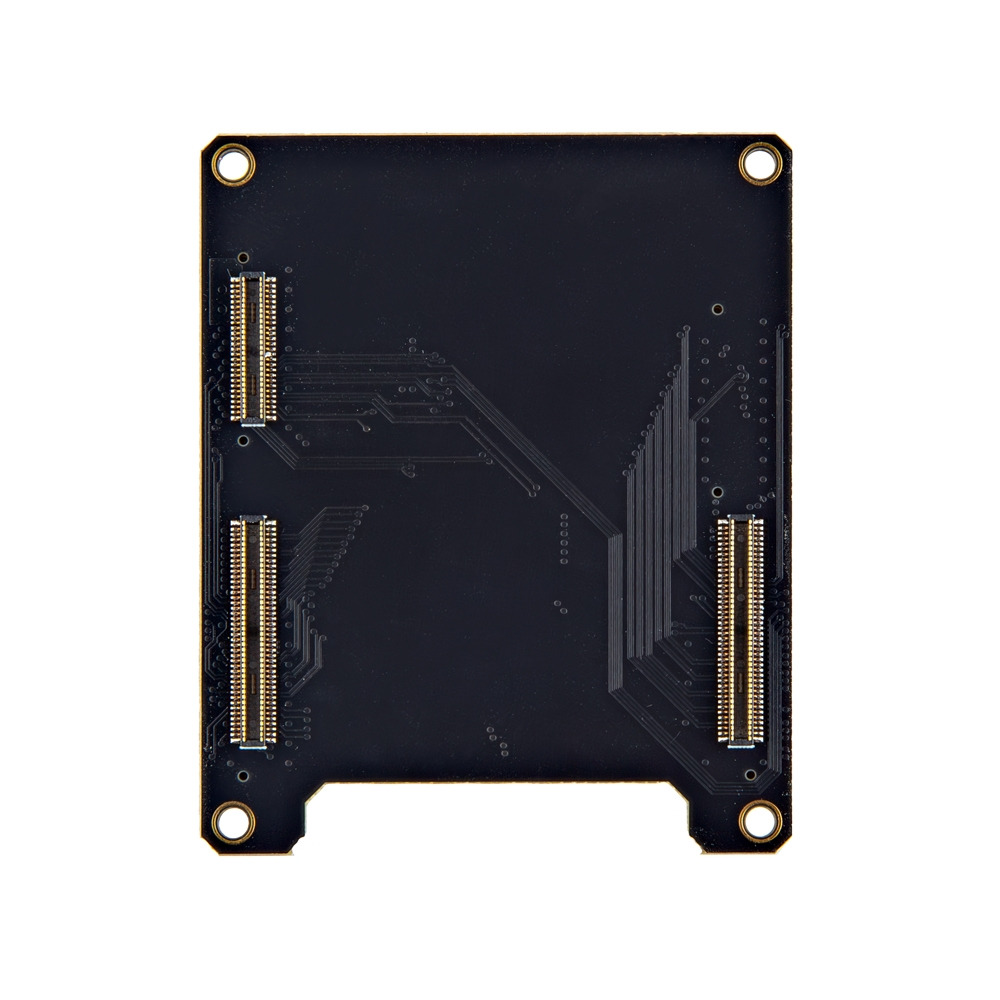

The Alchitry V2 to V1 Adapter bridges the gap between your new Alchitry V2 boards and older V1 add-on boards. Featuring the updated connectors on the bottom and the classic style on top, this adapter ensures seamless integration while accommodating updated specifications. Note that while it facilitates compatibility, it does not support the 100 MHz clock signal or UART Tx and Rx signals from V1.

Use this adapter to extend the life of your existing V1 add-on boards, allowing them to function with the latest V2 boards. This is particularly useful for projects that rely on specific V1 components but benefit from the enhanced capabilities of the V2 boards.

The adapter's design efficiently aligns the global clock inputs for the Au, maintaining consistency in functionality. Additionally, the dual voltage pins have been updated to 2.5V from the previous 1.8V, providing a more robust power supply for your projects.

This adapter is ideal for those looking to transition to the new Alchitry V2 ecosystem without abandoning their investment in V1 add-ons. It offers a practical solution for maintaining compatibility with minimal adjustments to existing setups.
