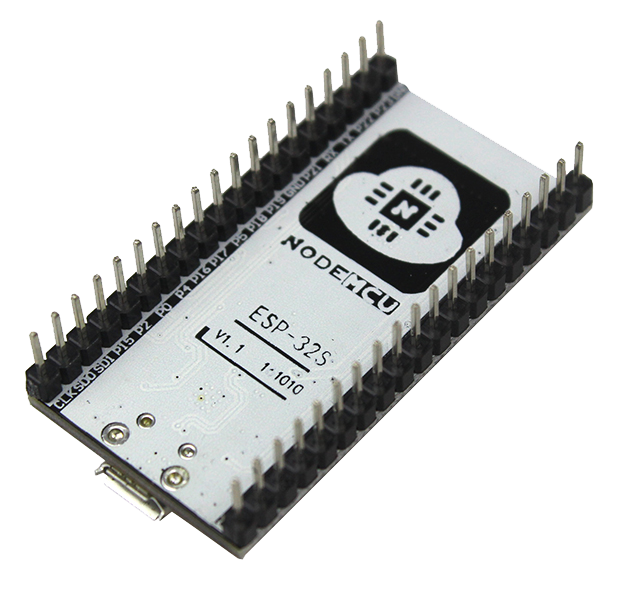

NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board

Model 52435 Schrijf een review Share
NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board
  • NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board
  • NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board
  • NodeMcu ESP-32S Lua ESP-WROOM-32 WIFI Development Board
Sold per piece
€ 9,70€ 9,70 Excl. BTW
Add to cart
Staffelkortingen weergeven
... Pieces In stock Need a larger number? Expected delivery date: Saturday 11 December.
Shipped from  € 25,--United States
+ + =
Frequently bought together Total price: Add to cart

Description

The NodeMcu ESP-32S is an open-source board with built-in ESP-WROOM-32 WIFI module. This is not a weakness like the Arduino's, with 512kb of memory and a dual-core processor at 240Mhz, there is not a shortage of sources. In addition, the new 32-bit microcontroller has an integrated Bluetooth 4.2 (BLE) module. This sign is extremely suitable for starting IoT (Internet of Things) applications. Programming the NodeMcu is slightly different than normal, with the API similar to NodeJS, this module receives the commands through the LUA scripts that are uploaded.

Drivers for the built-in 2102 serial chip can be found here
https://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

Properties
Wireless 802.11 b / g / n standard
Supports STA / AP / STA + AP
Standard on 9600 baud

Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 channel ADC
Power input: 4.5V ~ 9V (10VMAX), USB powered
Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
Transfer rate: 110-460800bps
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
