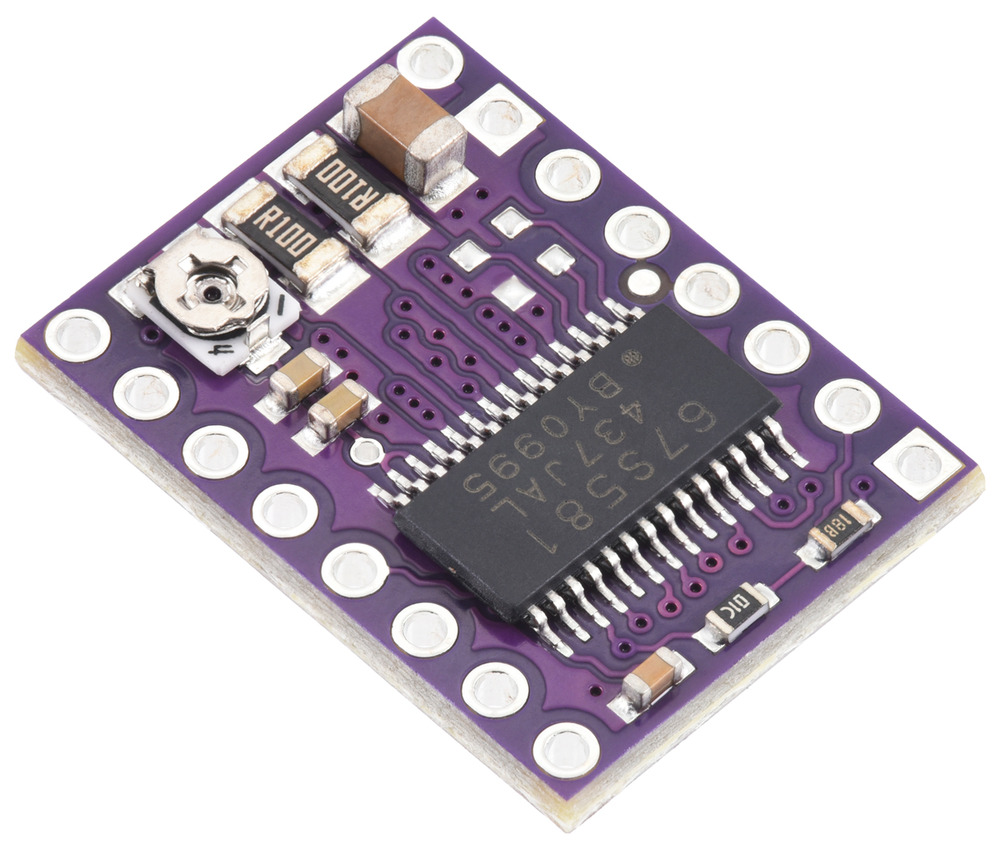

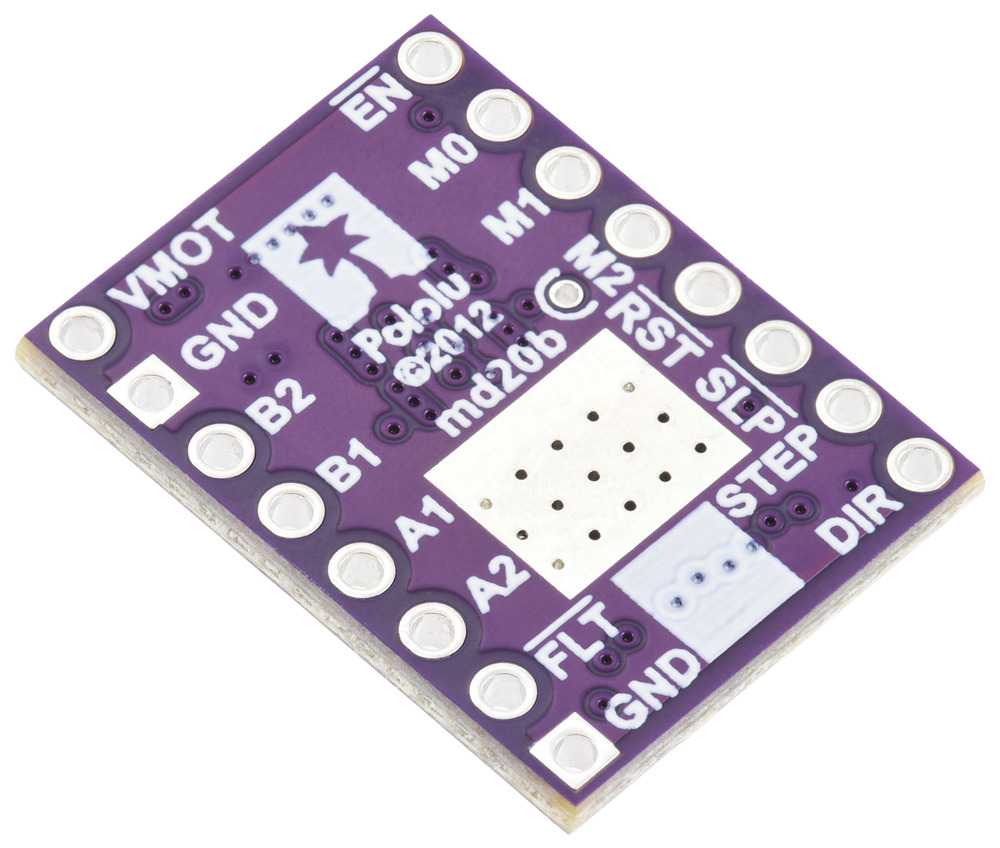

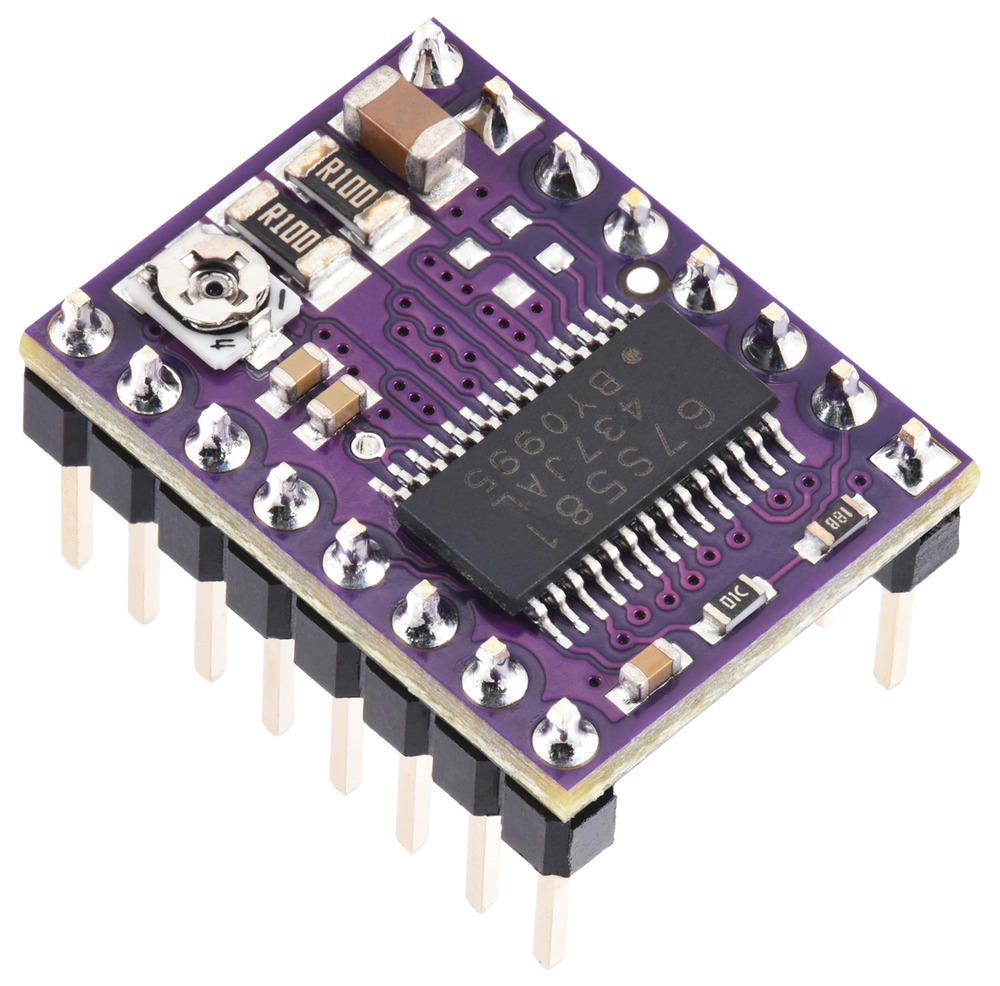

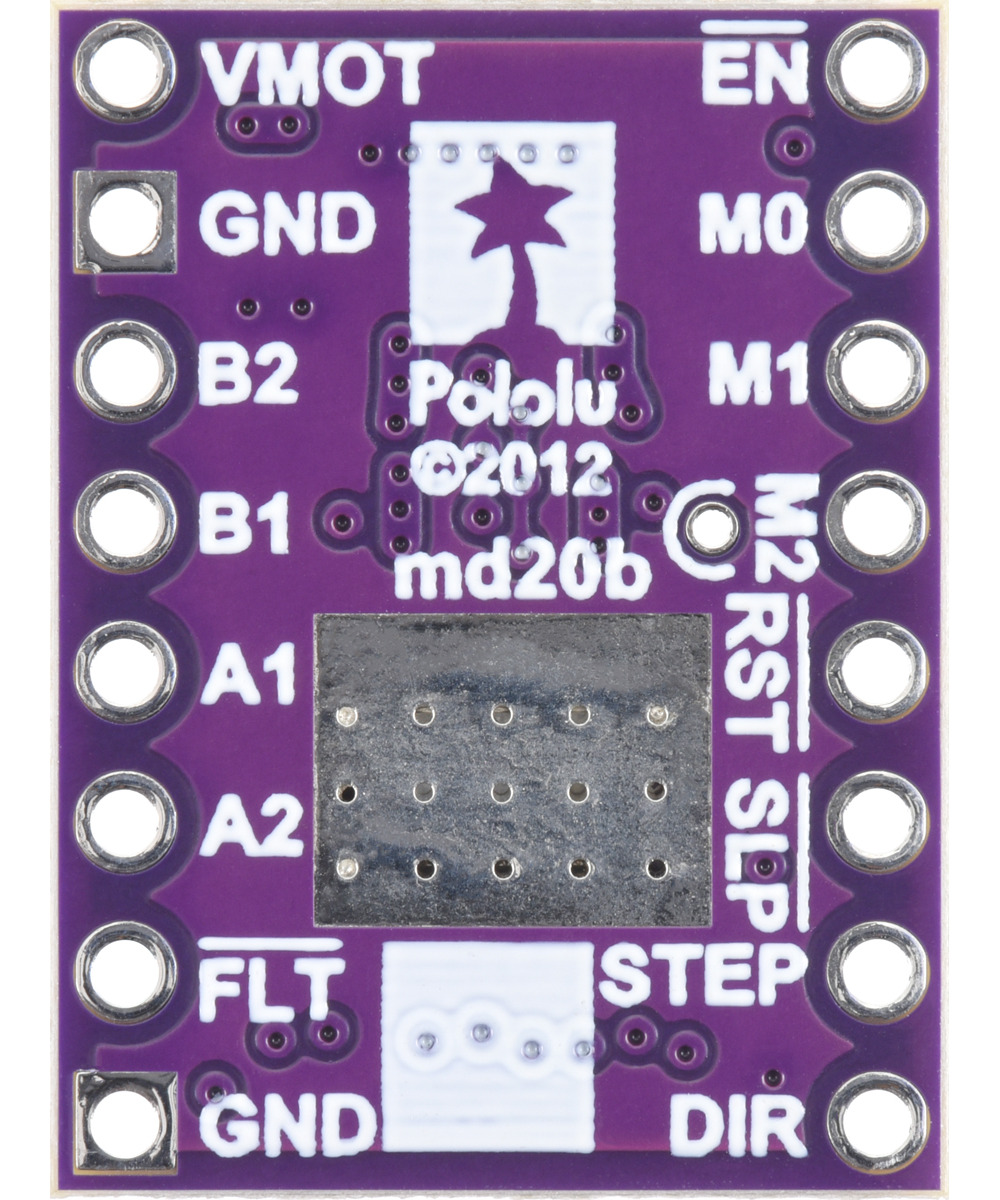

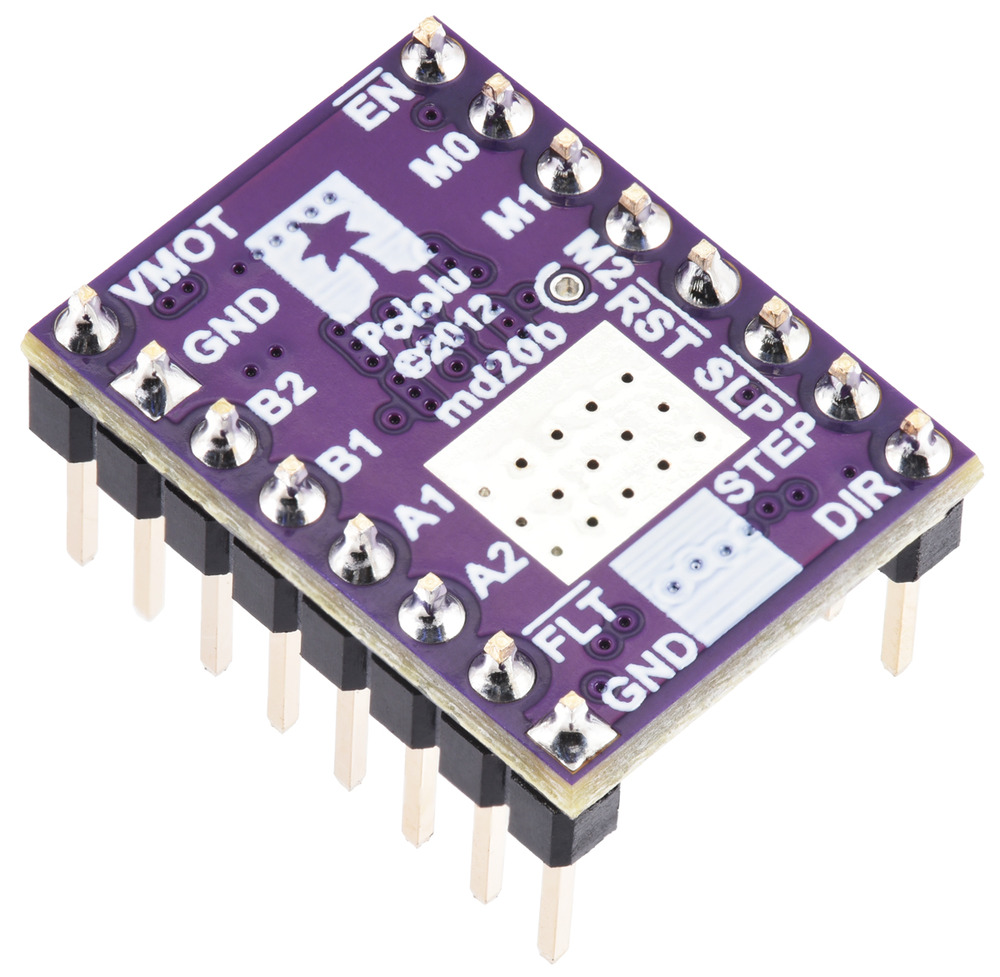

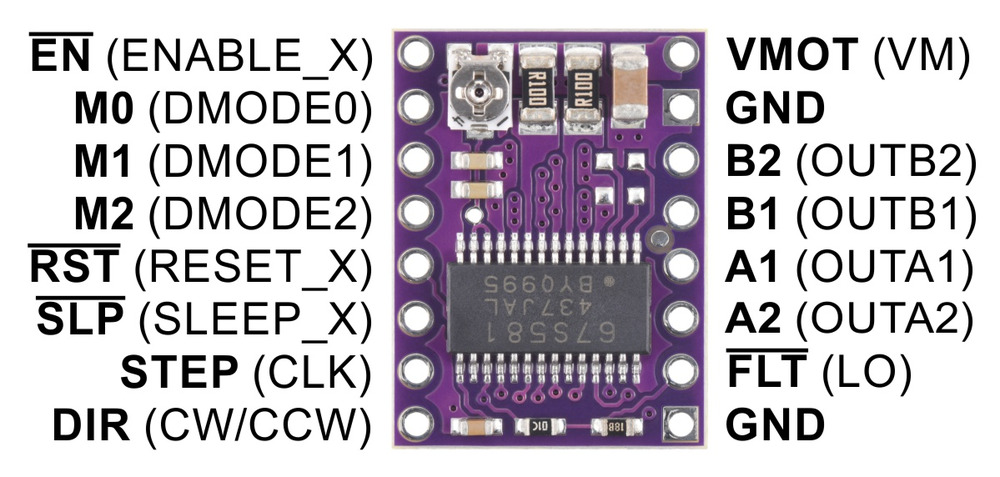

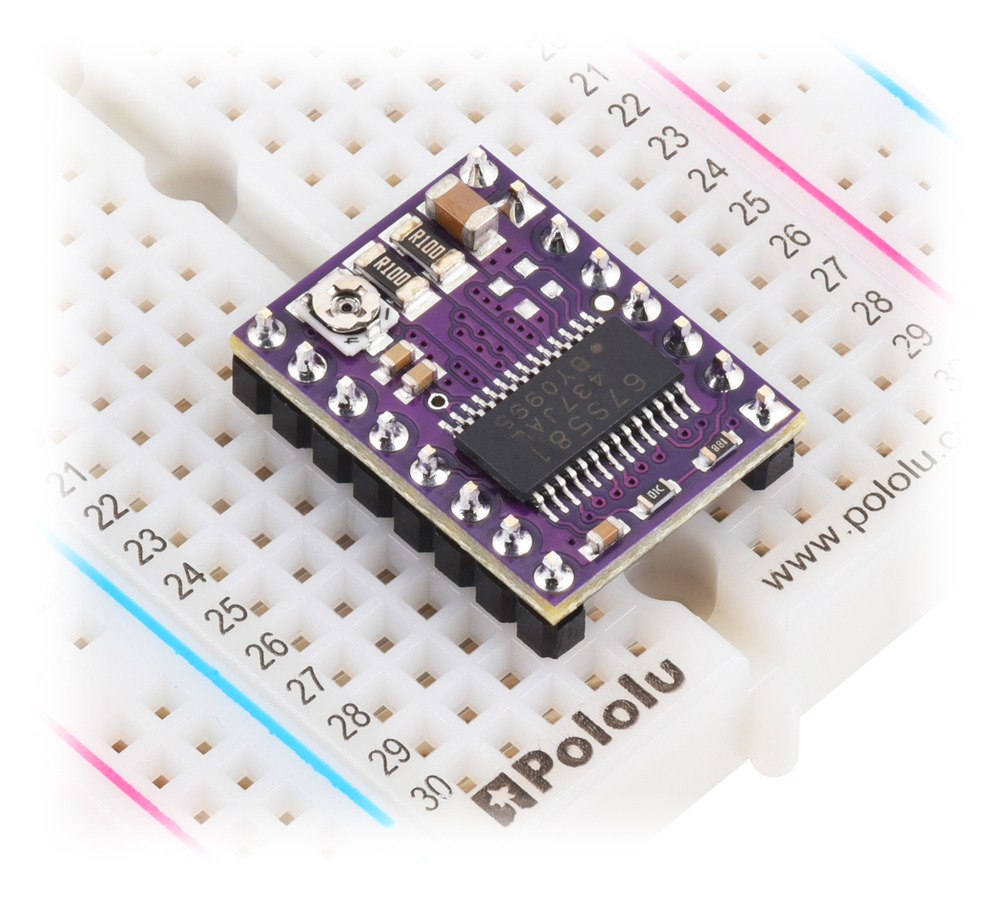

Pololu TB67S581FNG Stepper Motor Driver Carrier

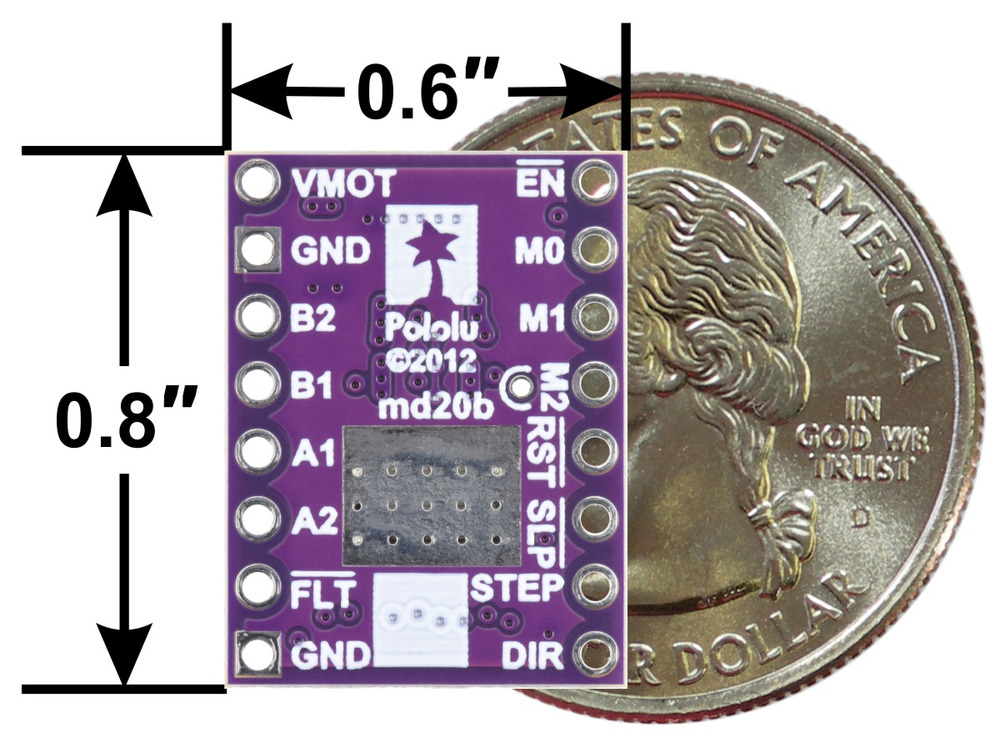

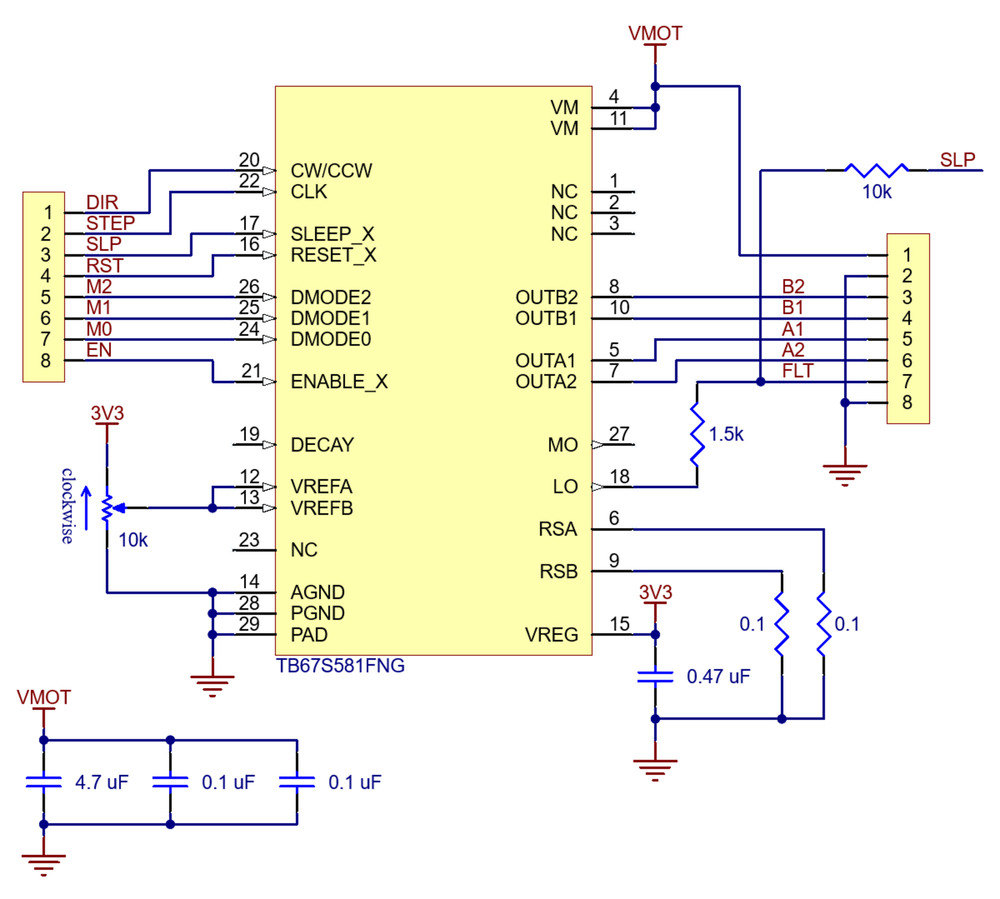

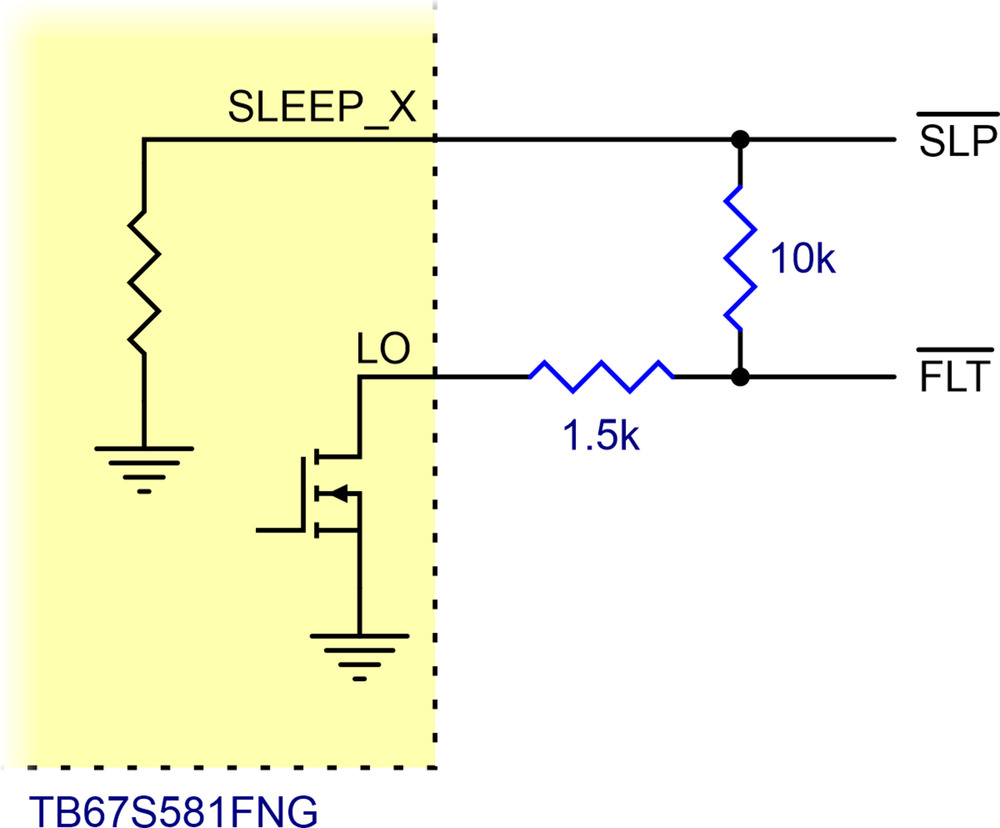

The TB67S581FNG stepper motor driver carrier is an advanced solution for controlling bipolar stepper motors, offering up to 2.2 A output current per coil. Key features include a straightforward step and direction control interface, six step resolutions ranging from full-step to 1/32-step, adjustable current control, and a maximum supply voltage of 44 V. It is equipped with protective features such as over-temperature shutdown, short-to-ground protection, and shorted-load protection, ensuring reliability and safety. The compact design includes a 4-layer, 2 oz copper PCB for enhanced heat dissipation and compatibility with 3.3 V and 5 V systems.

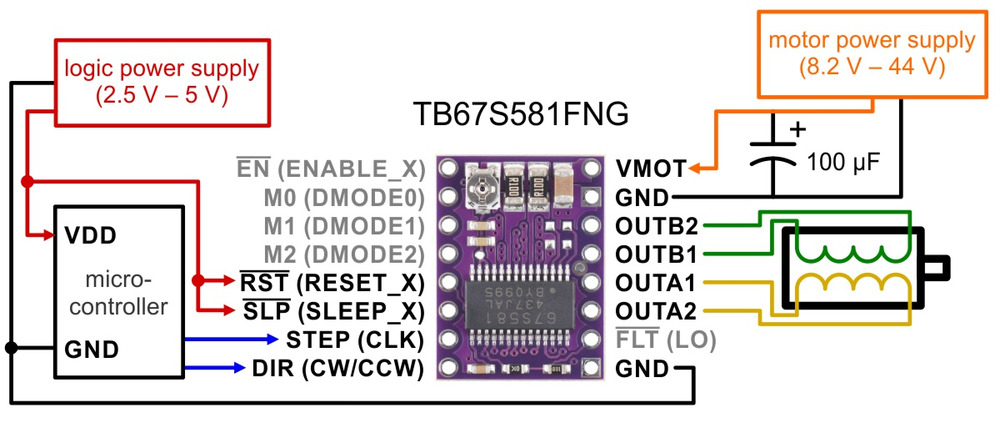

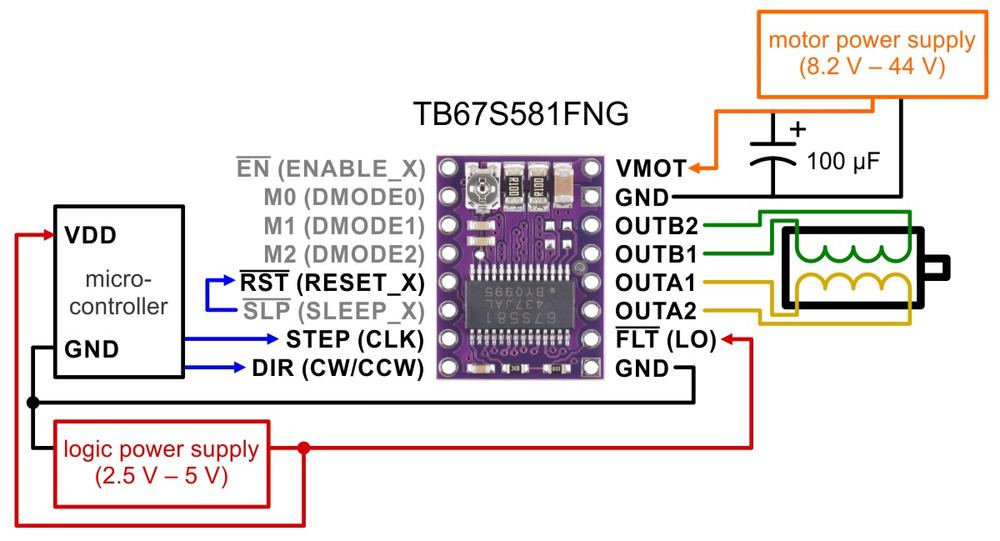

The TB67S581FNG driver is ideal for a variety of applications, from 3D printers to CNC machines, where precise motor control is essential. Its microstepping capability allows for smooth and accurate positioning, making it suitable for projects requiring high-resolution movement. The driver can easily interface with microcontrollers, providing flexibility for custom automation solutions.

One of the standout benefits of this driver is its ability to operate at higher voltages than many other drivers, reducing the risk of damage from voltage spikes and allowing for higher step rates. The built-in regulator eliminates the need for an external logic voltage supply, simplifying the setup process. Additionally, the driver’s compatibility with existing systems designed for DRV8825 and A4988 drivers makes it a versatile choice for upgrades and replacements.

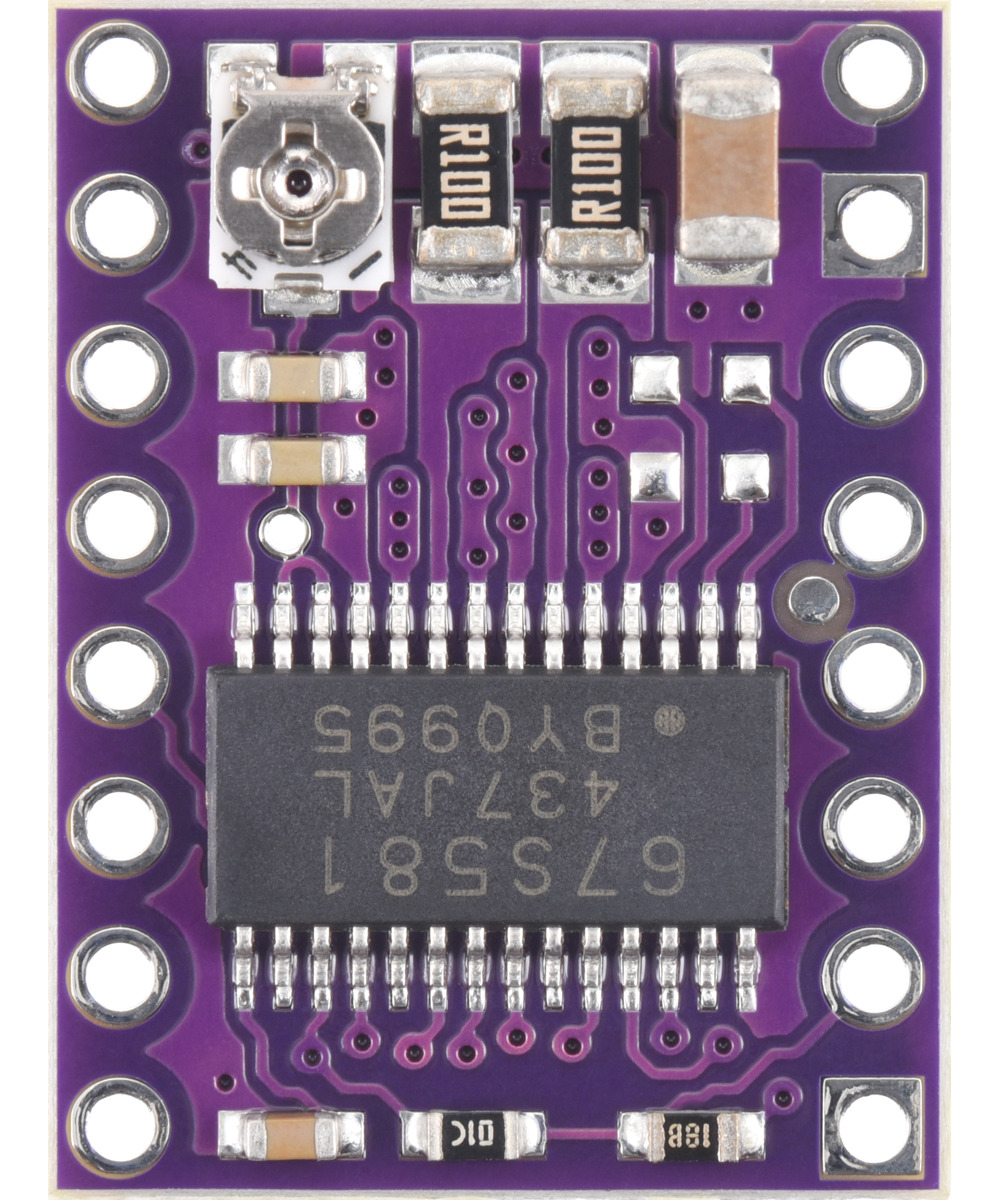

Setting the current limit is straightforward with the onboard trimmer potentiometer, ensuring that the motor operates within its safe limits while maximizing performance. This feature, combined with the driver’s protective mechanisms, helps prevent damage to both the motor and the driver itself. For those looking to push the performance envelope, adding a heat sink can further enhance the driver’s current handling capabilities.

In summary, the TB67S581FNG stepper motor driver carrier offers a robust and adaptable solution for precise motor control in a variety of applications. Its advanced features, protective mechanisms, and compatibility with existing systems make it a valuable component for any project involving stepper motors.
