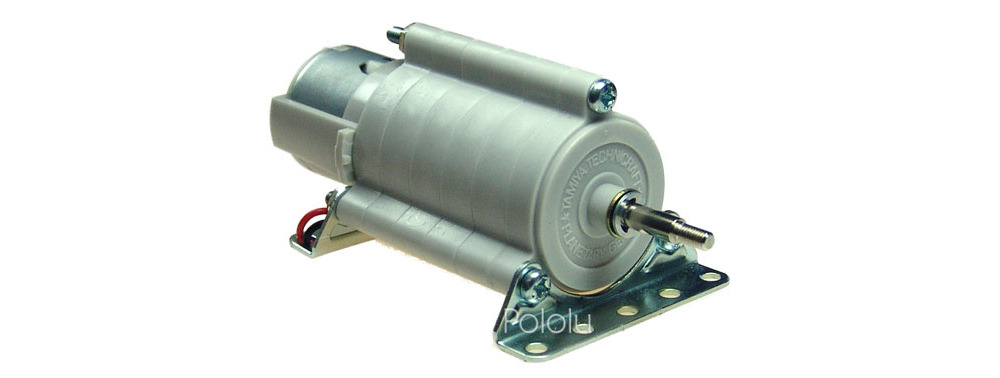

Pololu Tamiya 72001 Planetary Gearbox Kit

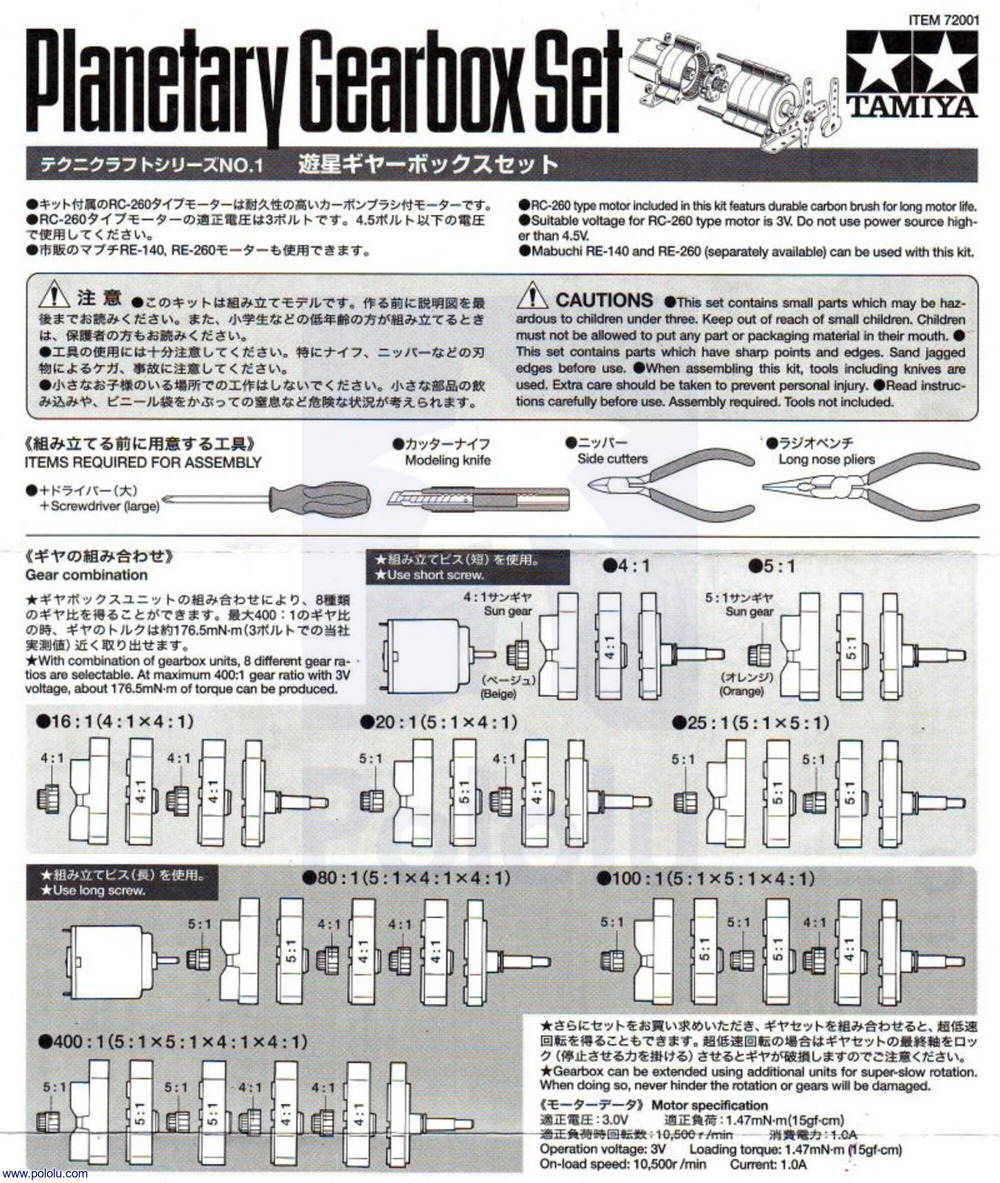

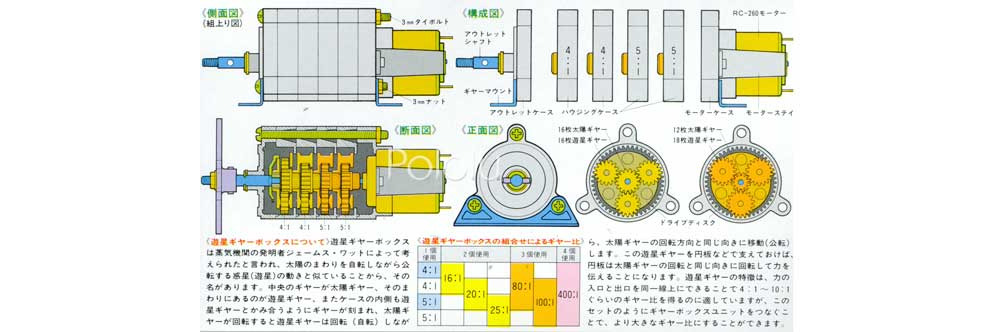

The Tamiya 72001 Planetary Gearbox Kit is a highly efficient and versatile component offering multiple gear ratios, including 4:1, 5:1, 16:1, 20:1, 25:1, 80:1, 100:1, and 400:1. It features two 4:1 and two 5:1 stages that can be combined for varied configurations, allowing for a wide range of applications. The output is aligned with the motor shaft, simplifying integration into your projects. Operating on 3-6 volts, this gearbox is ideal for low-voltage applications and is compatible with the DRV8833 motor driver carrier.

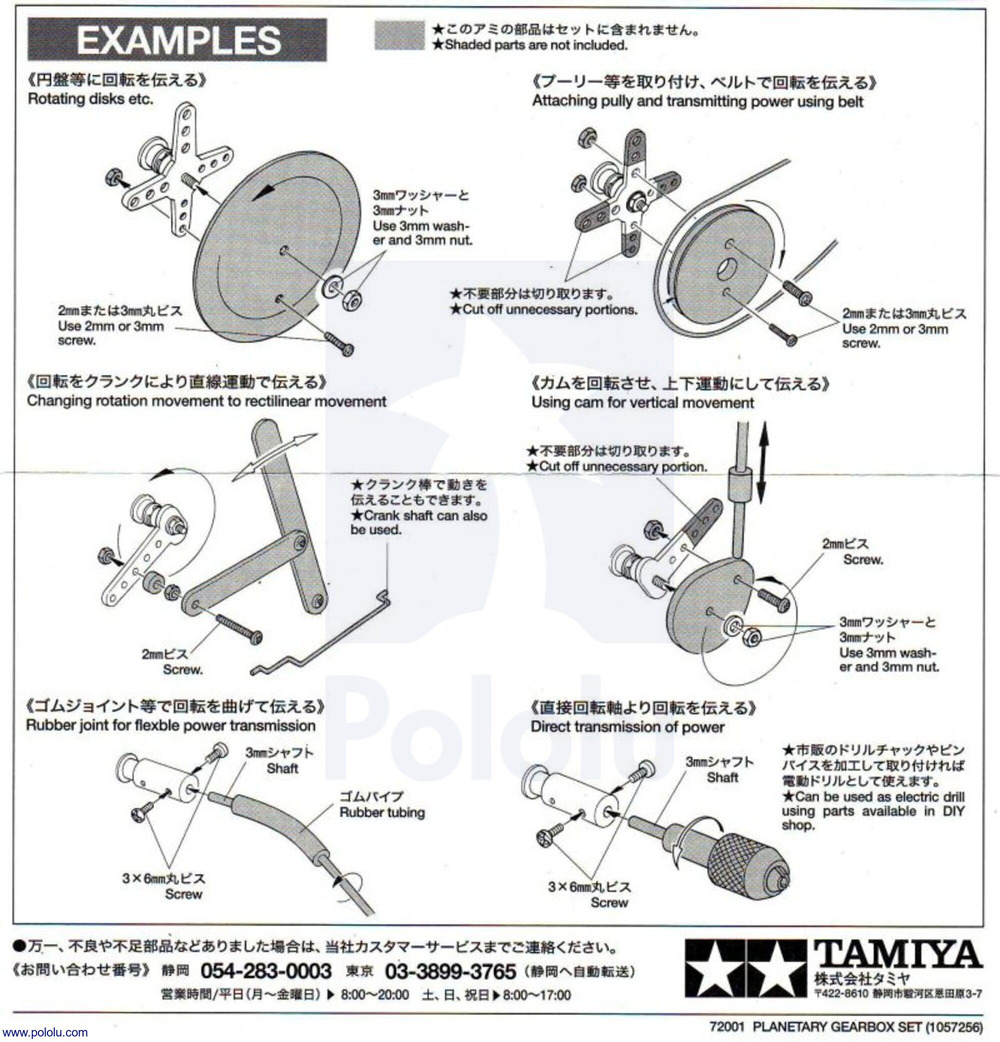

Perfect for hobbyists and professionals alike, this gearbox can be used in a variety of robotics and engineering projects. Its flexible gear ratio options enable users to tailor the gearbox to specific needs, from simple to complex mechanical tasks. By combining two kits, users can achieve even larger gear ratios, expanding the potential uses of this kit.

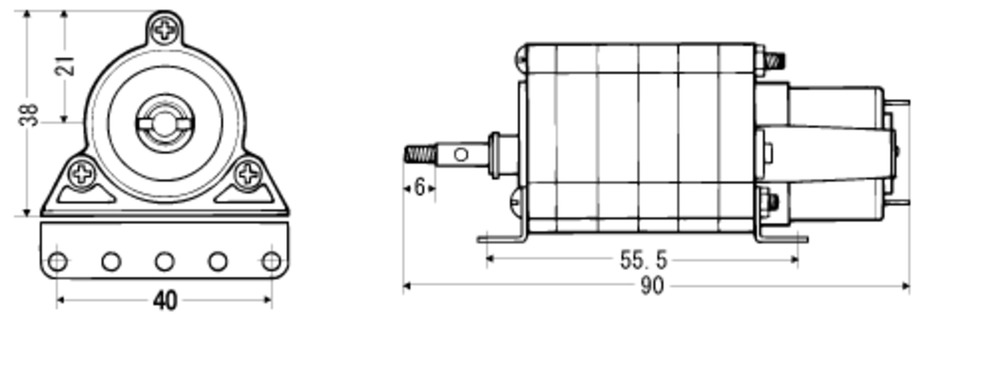

A major benefit of this kit is its compatibility with a range of Tamiya wheels, thanks to its 4 mm diameter round output shaft. This ensures seamless incorporation into existing projects or new designs. Additionally, the gearbox is designed to work with the 3 mm universal mounting hub, offering further flexibility in mounting options.

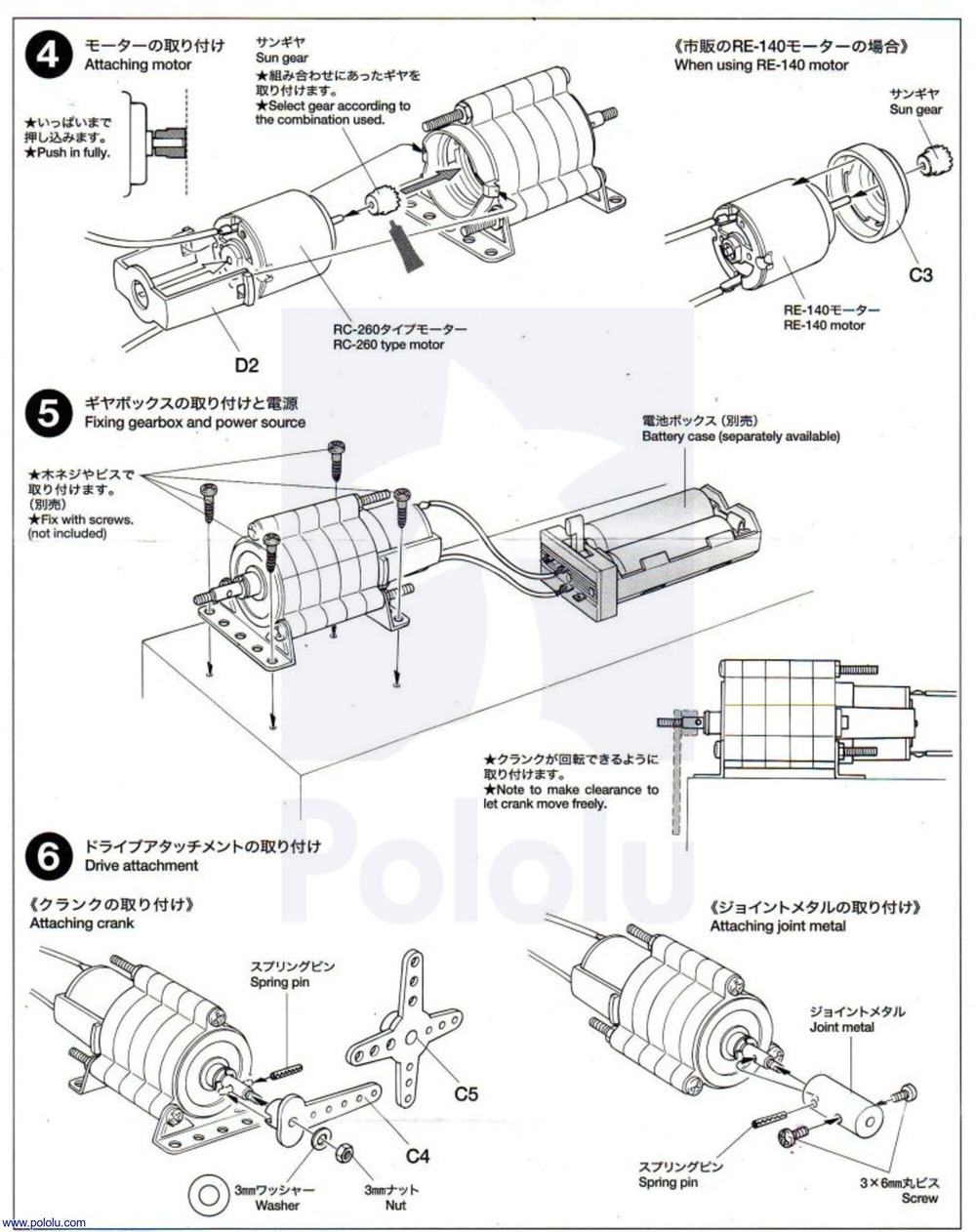

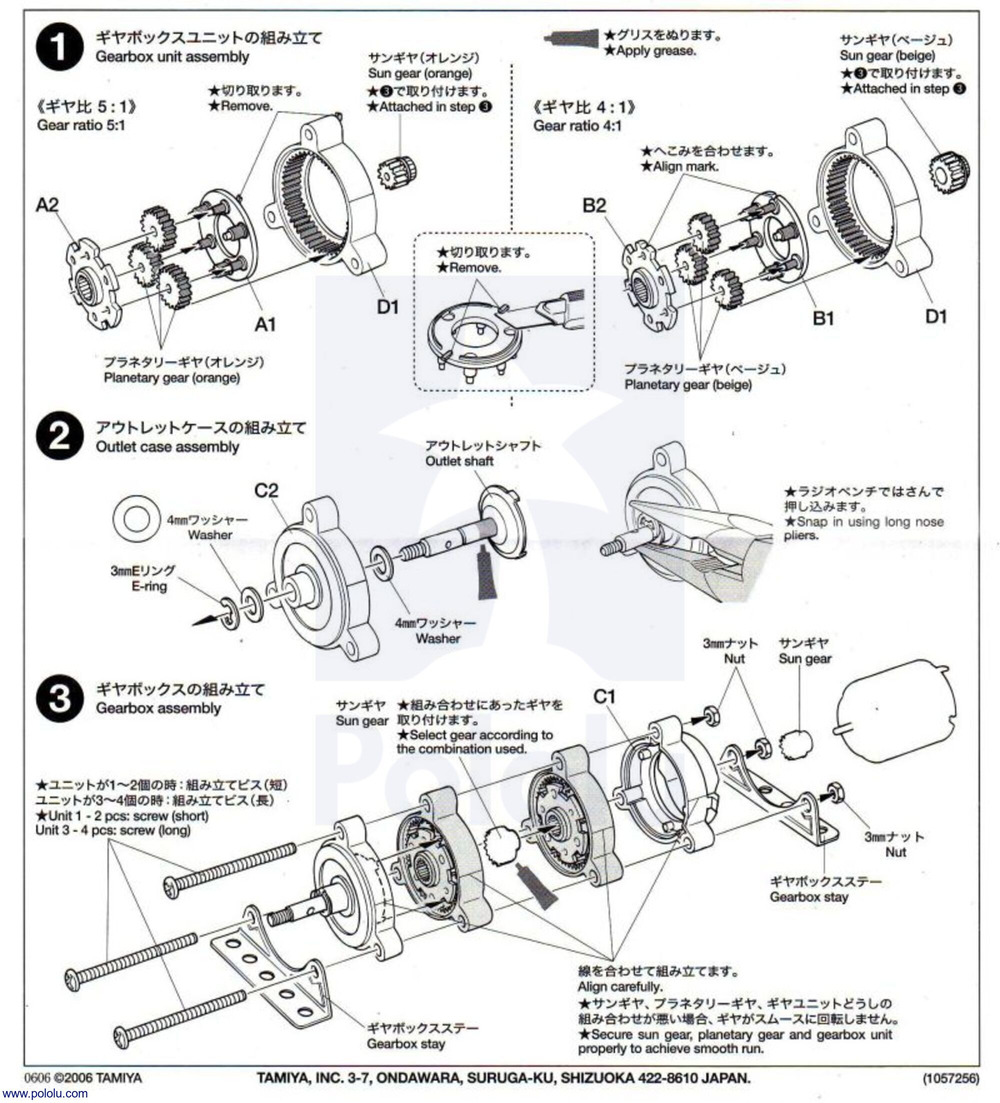

The planetary gearbox kit requires assembly, making it an engaging project for those interested in building and customizing their own mechanical systems. It is essential to connect the motors to a robot controller to fully utilize the kit in robotics applications. For detailed motor specifications, refer to the Mabuchi motor RC-260 data sheet.
