SparkFun RJ45 Breakout

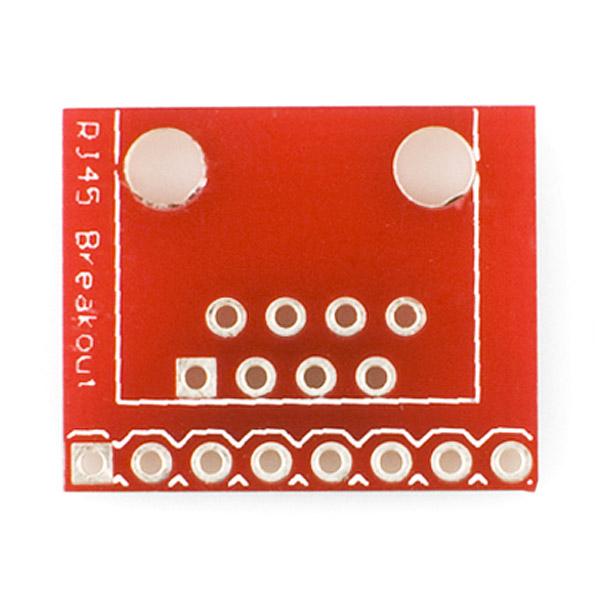

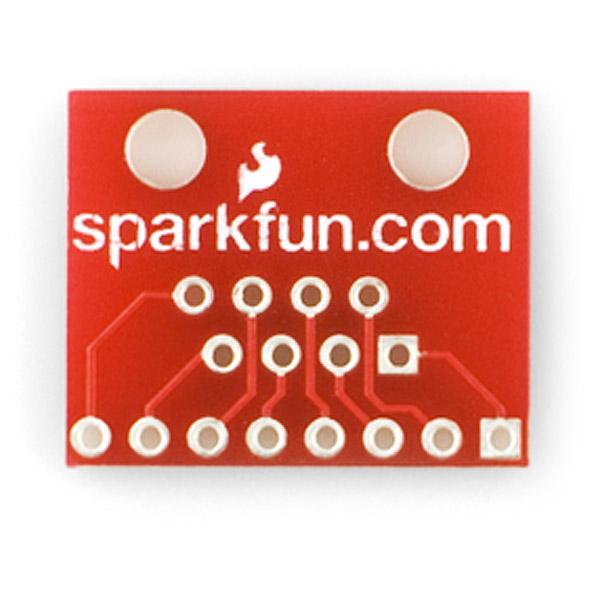

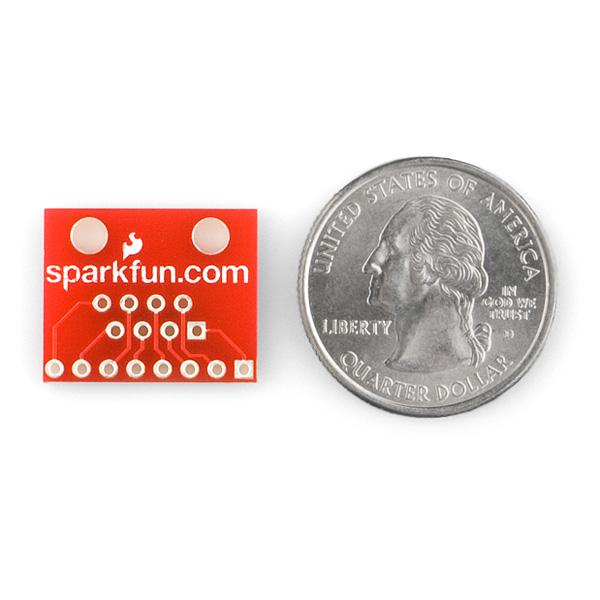

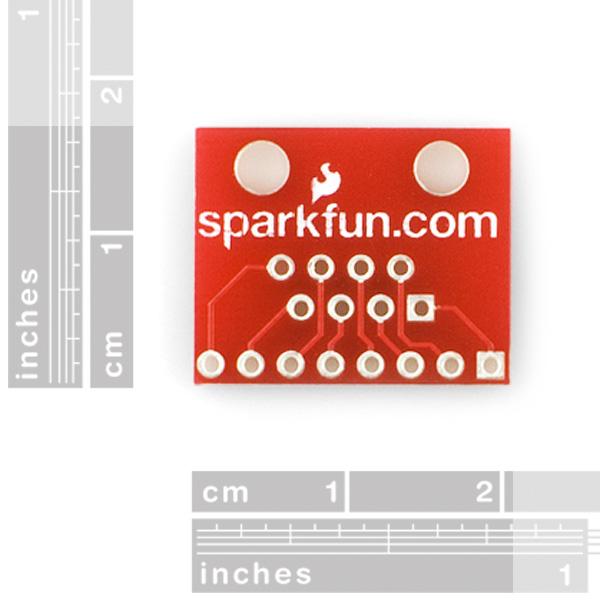

The SparkFun RJ45 Breakout is an innovative product that makes the most of RJ45 connectors. Primarily used for Ethernet jacks, these connectors also serve as fantastic general-purpose connectors when a multitude of conductors is required. The SparkFun RJ45 Breakout is a compact PCB that brings out the pins of the RJ45 connector to an in-line 2.54mm footprint. It can be used with break-away headers for breadboarding or to create your own RJ45 cable. Its dimensions are approximately 1.78cm x 2.032cm.

The SparkFun RJ45 Breakout is versatile and can be used in a variety of projects. For instance, it was used extensively in the Sound Squid demo. This product allows for the easy integration of a multitude of conductors, making it perfect for complex electronics projects or even simple breadboarding.

Please note that this product is the PCB only. You can get the specific RJ45 8-Pin Connector separately. This ensures you have the freedom to choose the exact components you need for your project, without being tied to a specific connector.

Key features of the SparkFun RJ45 Breakout include its compact size and the ability to bring out the pins of the RJ45 connector to an in-line 2.54mm footprint. This makes it an ideal choice for those needing a versatile and flexible solution for their projects.

SparkFun provides comprehensive documentation for the RJ45 Breakout. This includes a detailed schematic, Eagle Files for design and layout, and a GitHub repository for software and firmware resources. These resources make it easier for you to integrate this product into your projects and understand its full capabilities.
