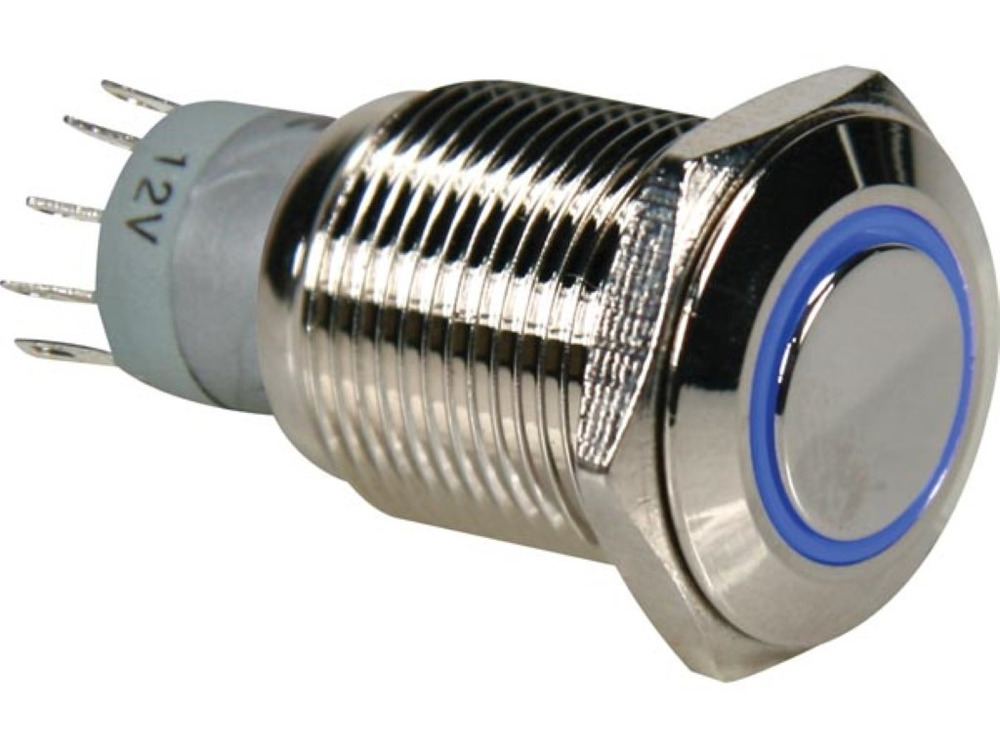

Onpow Sleek Round Metal SPDT Switch with Blue Ring Indicator
Description
This sleek round metal switch combines form and function with its SPDT (Single Pole Double Throw) configuration, offering both 1NO (Normally Open) and 1NC (Normally Closed) contacts.
Precision-engineered for reliability, it features a striking blue ring indicator, providing a clear visual cue. The switch is an ideal choice for applications requiring seamless toggling between circuits.
Perfect for both enclosure panels and control desks, its robust metal construction ensures durability. Whether it's for activating machinery or controlling lighting systems, this component shines under constant use.
Properties
Brand information
| Brand | Onpow |
| Model | R1610B |
Other
| Type | on-off |
| Insulation resistance | Over 1000M ohms |
| Working temperature | -4°F ~ +158°F |
| Electric lifespan | 50,000 cycles |
| Contact resistance | less than 50 megaohms |
| Contact material | cashed in |
| IP value | IP40/IP65 |
| Humidity level | 45 ~ 85% humidity |
| Between terminals of the same group | 1000 volts AC |
| Between the terminal and the lamp terminal | 1500 volts AC |
| Housing material | Nickeled brass |

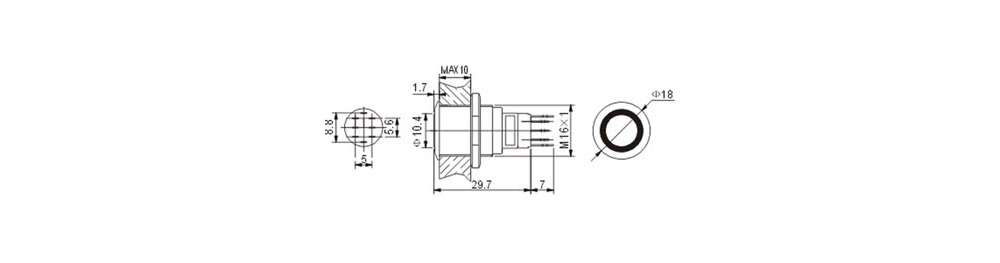

| Boring | Diameter 16 mm |
| Mechanical lifespan | 1,000,000 cycles |
| Between terminals of different poles | 2000 volts AC |
Datasheet
| Color | The text translates to "blue" in English. |
€ 12,00€ 9,95 Excl. VAT (NL)
