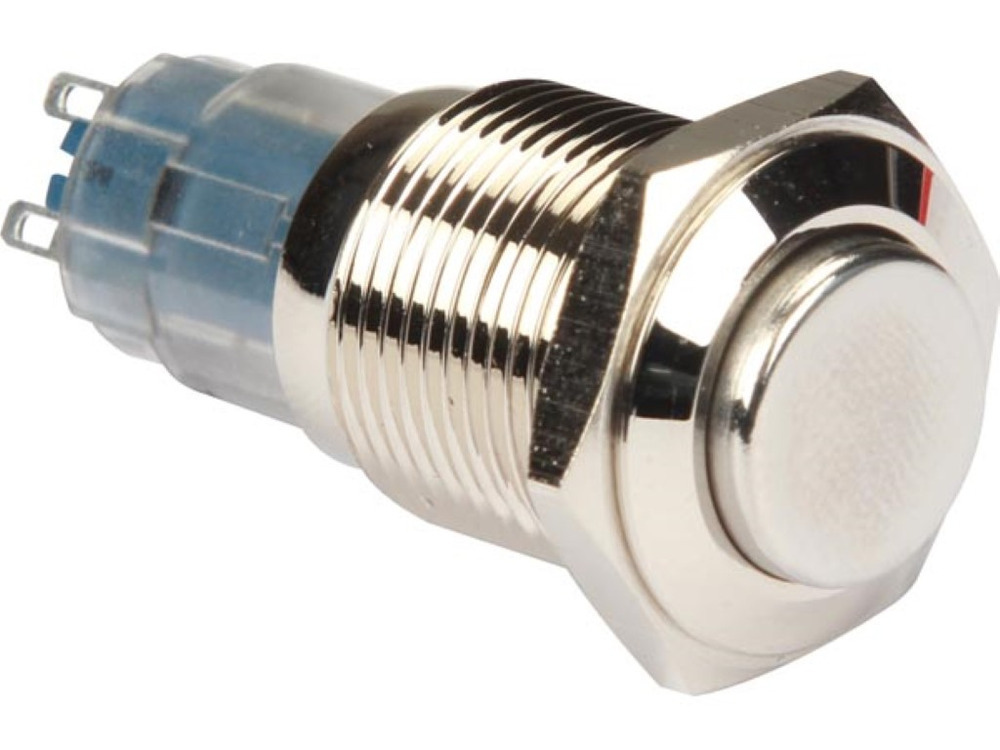

The Hoge Ronde Metalen Schakelaar DPDT 2NO 2NC offers precise control with dual-pole, dual-throw capability, ensuring seamless use in both complex and simple circuits.
Effortlessly switch between two circuits using the 2NO (normally open) and 2NC (normally closed) configurations, delivering reliable performance every time. Its robust metal casing guarantees durability and consistent operation in various environments.
Ideal for diverse applications such as controlling motor direction, light switches, or instrumentation tasks, this switch serves as the heart of any electrical setup needing versatility and dependability.
| Brand | Onpow |
| Model | R1711 |
| Type | on-off |
| Insulation resistance | > 100M ohm |
| Working temperature | -25°C to +55°C |
| Electric lifespan | 50,000 cycles |
| Contact resistance | less than 50 million ohms |
| Contact material | cashed in |
| IP value | IP40 |
| Mechanical lifespan | 1,000,000 cycles |
| Humidity level | 45 ~ 85% humidity |
| Between terminals of the same group | 1000 volts AC |
| Between terminals of different poles | 2000 volts AC |
| Housing material | Nickeled brass |
| Boring | Diameter 16 mm |
| Hey, druk! | 5.5 N |
