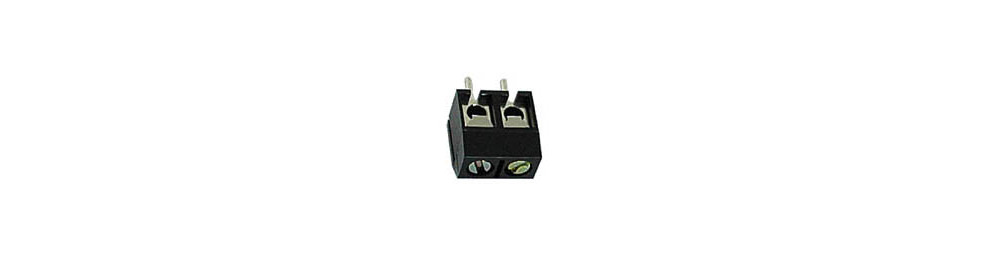

Goosvn SCHROEFKLEM, 2 POLEN, LAAG PROFIEL, PITCH 5mm
Description
The SCHROEFKLEM, 2 POLEN, LAAG PROFIEL, PITCH 5mm stands as a model of precision and durability in electrical connectivity. Its compact low-profile design ensures seamless integration into tight spaces, maximizing efficiency and functionality.
With a 5mm pitch, this terminal block offers optimal spacing for secure and reliable wiring. Whether connecting circuit boards or linking components in an apparatus, its dual-pole capability guarantees stable and uninterrupted connections.
Built to endure, the SCHROEFKLEM withstands varying environments, ensuring long-lasting performance. Its simplified assembly makes installation quick and hassle-free, much like fitting puzzle pieces together with precision and ease.
Properties
Brand information
| Brand | Goosvn |
| Model | SCREW02BL |
Other
| Primary colors | Black |
| Depth of the product | 7.5 mm |
| Height of the product | 10 mm |
| Width of the product | 15 mm |
| Weight Product | 1.8 g |
| Stackable | Yes |
| "Shape" | Square |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | Circuit board, Through hole |
| Extra material | Polyamide 66 |
| Number of Contacts | 2 |
| Maximum operating temperature | 105°C (221°F) |
| Minimum operating temperature | -40 °C |
| Diameter guide | 1 mm |
| Type of connection | The translation of "Schroefaansluiting" to English is "screw connection." |
| Diameter mounting hole (mm) | 1.5 mm |
| You can translate "Contact materiaal" informally to "Get in touch materials" in English. | Brass |
| Flammability | The text "UL 94 V-0" doesn't contain anything to translate since it's a standard name, which is the same in English. It's a flammability rating used for plastics, meaning the material stops burning within 10 seconds after being exposed to a flame. Let me know if there's anything else you need help with! |
| Maximum wire gauge AWG | 26 AWG |
| Minimum wire gauge AWG | 14 gauge |
| Dielectric strength voltage value VAC | It looks like "2000 V" might be a specific reference, possibly to voltage (2000 volts) or something else depending on the context. Could you provide a bit more information or context so I can help you translate it accurately? |
| Form connector | "Law" |
| Wire gauge | 2.5 mm² |
| Maximum current per road | 16 A |
| "Spanning VAC per weg" can be translated informally to English as "Voltage VAC per line." | 300 V |
| Temperature of the soldering iron | 260°C |
| The material of soldering pens | Ranked |
| Insulation resistance at 1000 VDC | 5000 MΩ |
| Wire protection | Yes |
Connection data
| Pitch | mm |

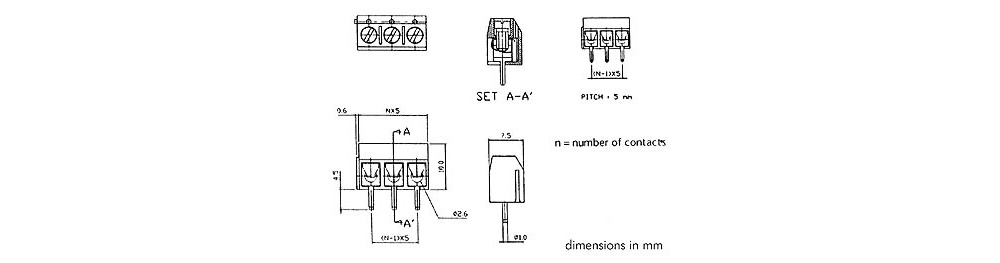

Datasheet
| Material | Glass-filled polyester |
€ 0,60€ 0,50 Excl. VAT (NL)
