  2. Onpow Ronde Metalen Schakelaar SPDT 1NO 1NC with Green LED Ring

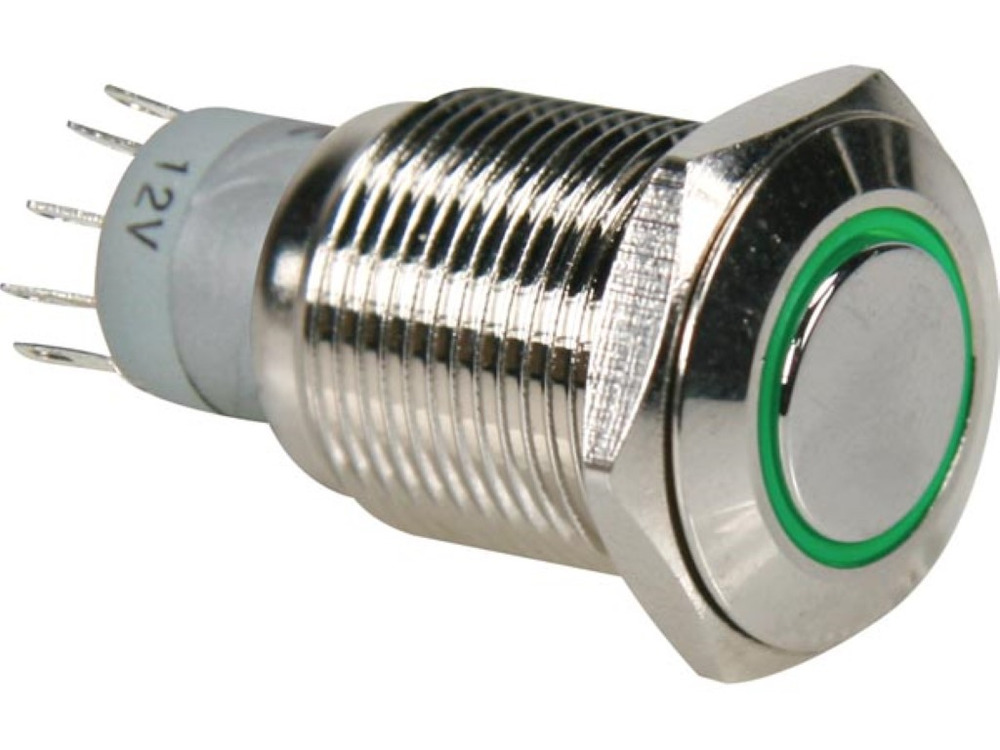

Onpow Ronde Metalen Schakelaar SPDT 1NO 1NC with Green LED Ring

Item number R1610G Share Write a review
New
Onpow Ronde Metalen Schakelaar SPDT 1NO 1NC with Green LED Ring



Description

The Ronde Metalen Schakelaar SPDT 1NO 1NC with a green LED ring offers precision and durability in one compact design. Crafted from robust metal, this switch is built to withstand rigorous usage while maintaining seamless functionality.

Benefit from its SPDT (Single Pole Double Throw) configuration, providing both normally open (NO) and normally closed (NC) contacts for versatile applications. The integrated green LED ring provides clear visual feedback, making it easy to identify switch status even in low-light conditions.

Perfect for use in electronic projects, industrial controls, or custom equipment panels, this switch exemplifies reliability and efficiency. Whether toggling between circuits or activating systems, it ensures smooth and accurate operations comparable to a finely tuned instrument.

Properties

Brand information
Brand Onpow
ModelR1610G
Other
Type Sure thing! The text "on-off" can be translated to English as "on-off." However, if you meant to translate something else or need help with another expression, just let me know!
Insulation resistance Over 1000M ohms
Working temperature -4°F ~ +158°F
Electric lifespan 50,000 cycles
Contact resistance less than 50 megaohms
Contact material Sure! The translation of "verzilverd" to English is "cashed in" or "redeemed," depending on the context. If it's about making use of an opportunity or benefit, "cashed in" would be appropriate. If it's about exchanging something like a coupon or voucher, "redeemed" would fit better. Let me know if you need more help with specifics!
IP value The text "IP40/IP65" refers to Ingress Protection ratings, which classify the level of protection against solids and liquids for electrical enclosures. There's no direct translation needed for "IP40/IP65" itself, as these are standard codes. However, if the context has additional information, let me know!
Humidity level 45 ~ 85% humidity
Between terminals of the same group 1000 volts AC
Between the terminal and the lamp terminal 1500 volts AC
Housing material Nickeled brass
Boring Diameter 16 mm
Mechanical lifespan 1,000,000 cycles
Between terminals of different poles 2000 volts AC
Datasheet
Color The translation of "groen" to English, while keeping it informal, would be "green".
€ 10,45€ 8,65 Excl. VAT (NL)
Out of stock
Onpow Ronde Metalen Schakelaar SPDT 1NO 1NC with Green LED Ring € 10,45
Show volume discounts Shipped from € 3,50 (NL) 30 days cooling-off Excellent service
