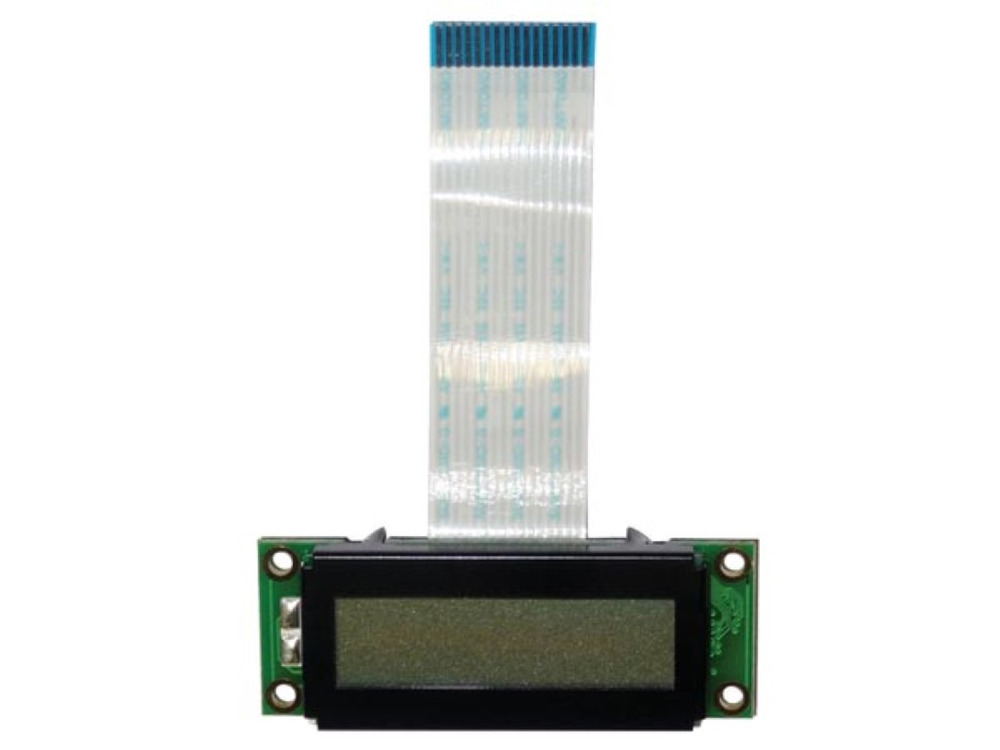

Velleman LCD 16 x 2 STN Transflective Display with Grey Positive Screen

Item number PC1602WRS-KWA-E Brand Velleman Model PC1602WRS-KWA-E  Share Write a review

New

Velleman LCD 16 x 2 STN Transflective Display with Grey Positive Screen

Description

Experience crystal-clear visibility with the LCD 16 x 2 STN Transflective Display. This versatile screen offers a perfect balance between readability in both direct sunlight and dimly lit conditions, thanks to its transflective technology.

Featuring a grey positive display against a white backlight, the interface is easy on the eyes, providing clarity without straining vision. With a 16-character by 2-line configuration, communicate messages effortlessly without sacrificing space.

Ideal for various applications, it excels in environments where lighting varies. Whether used in outdoor kiosks or indoor appliances, trust in consistent performance and reliability.

Properties

Brand information

Brand	Velleman
Model	PC1602WRS-KWA-E

Other

Working temperature	0°C to +50°C
Screen size	36 x 10mm
Size of the dots	0.33 x 0.35mm
Character size	3.15 x 1.85mm
At 0°C	Typical 4.8V.
At 25°C (power supply for LCD driver (Vdd-Vo))	4.6V typical.
At 50°C	4.4V typical.
At 25°C (power supply for logic (Vdd-Vss))	5.0V typical.
Storage temperature	-20°C to +70°C
