Pololu FEETECH High-Torque Digital Servo FT5313M

The FT5313M is a robust digital servo from FEETECH that offers exceptional torque, more than double that of standard servos with plastic gears. This is achieved through its coreless motor and all-metal gear train, with the output shaft supported by dual ball bearings to minimize friction.

Ideal for applications demanding high torque, this servo is perfect for hobbyists and professionals working with robotics, RC vehicles, or any project requiring precise control. The servo's compatibility with standard RC pulses makes it versatile and easy to integrate into various systems.

One of the standout features is its 120° running angle, controlled by a pulse range between 900 µs and 2100 µs. While some servos can operate beyond their standard ranges, the FT5313M maintains reliable performance within its specified limits, ensuring consistent and precise movements.

The 25 cm cable, ending in a JR-style connector compatible with Futaba systems, simplifies connectivity and installation. This makes it easy to pair with a wide range of controllers and devices, enhancing its usability across different projects.

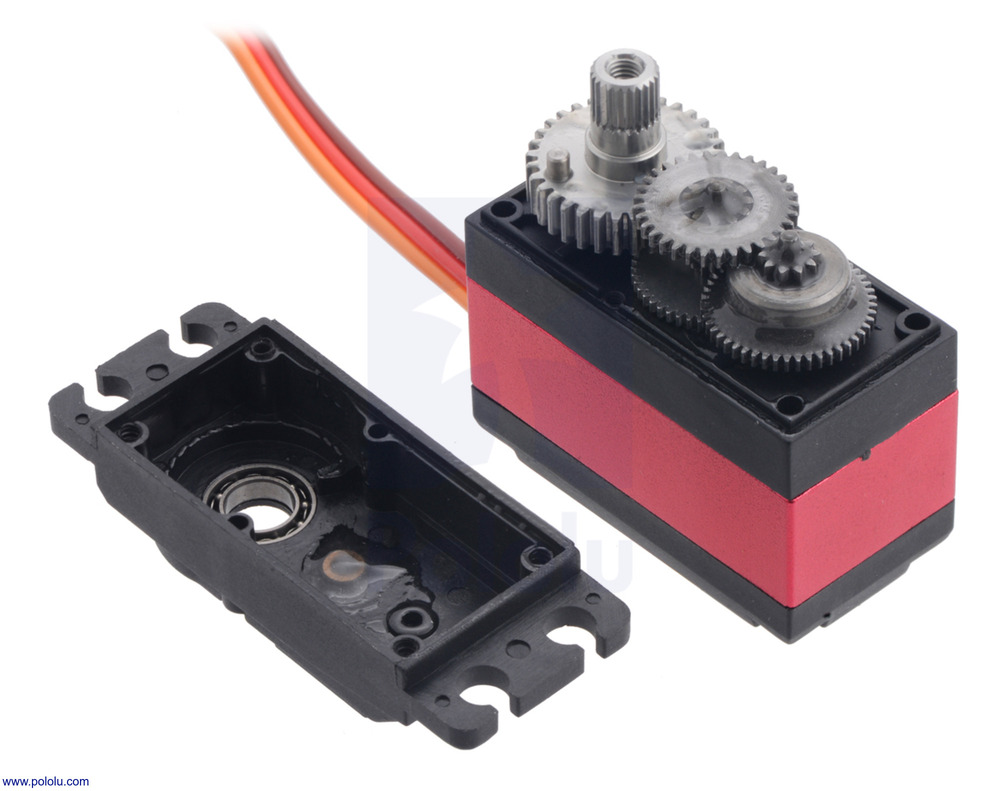

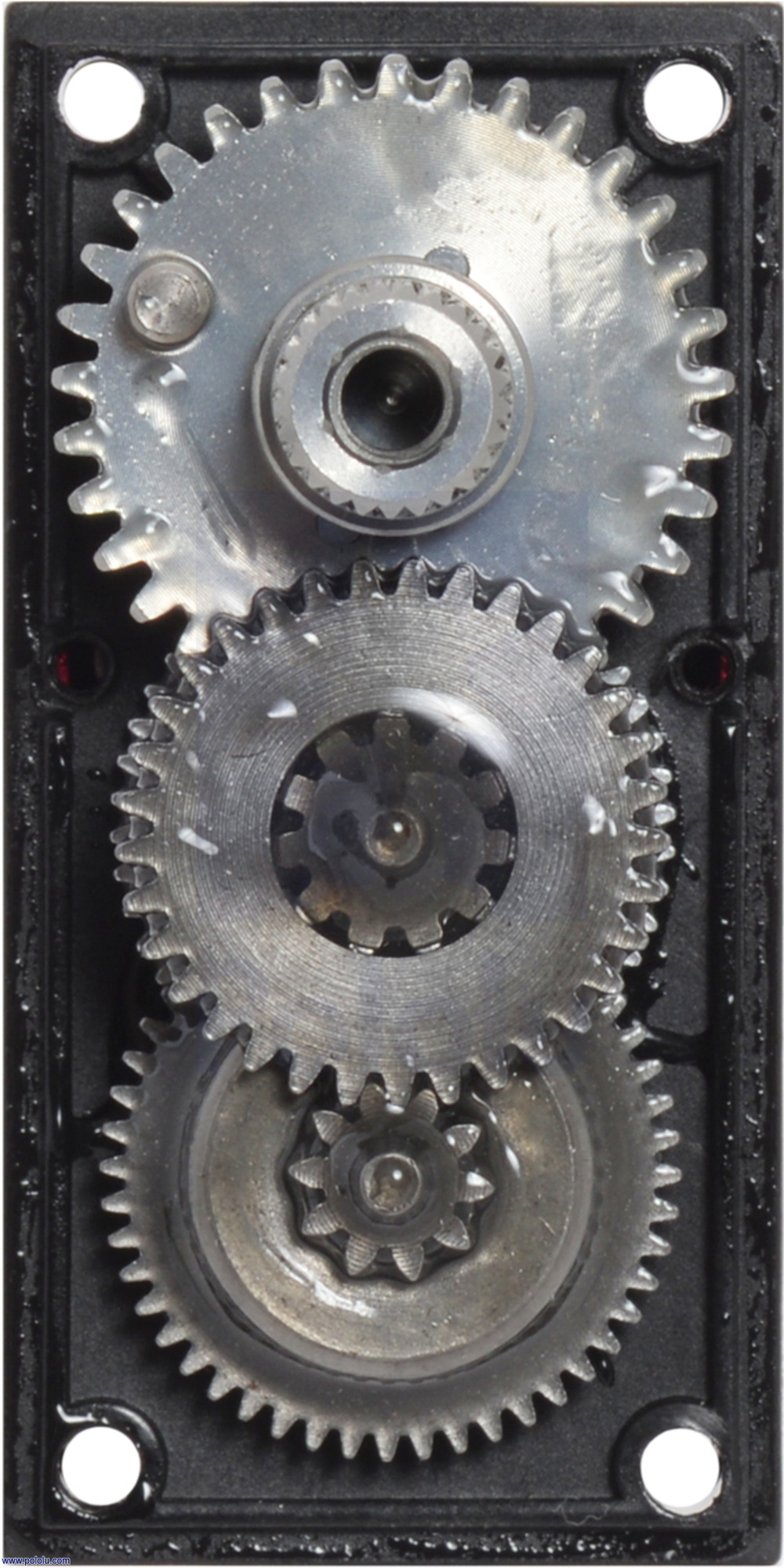

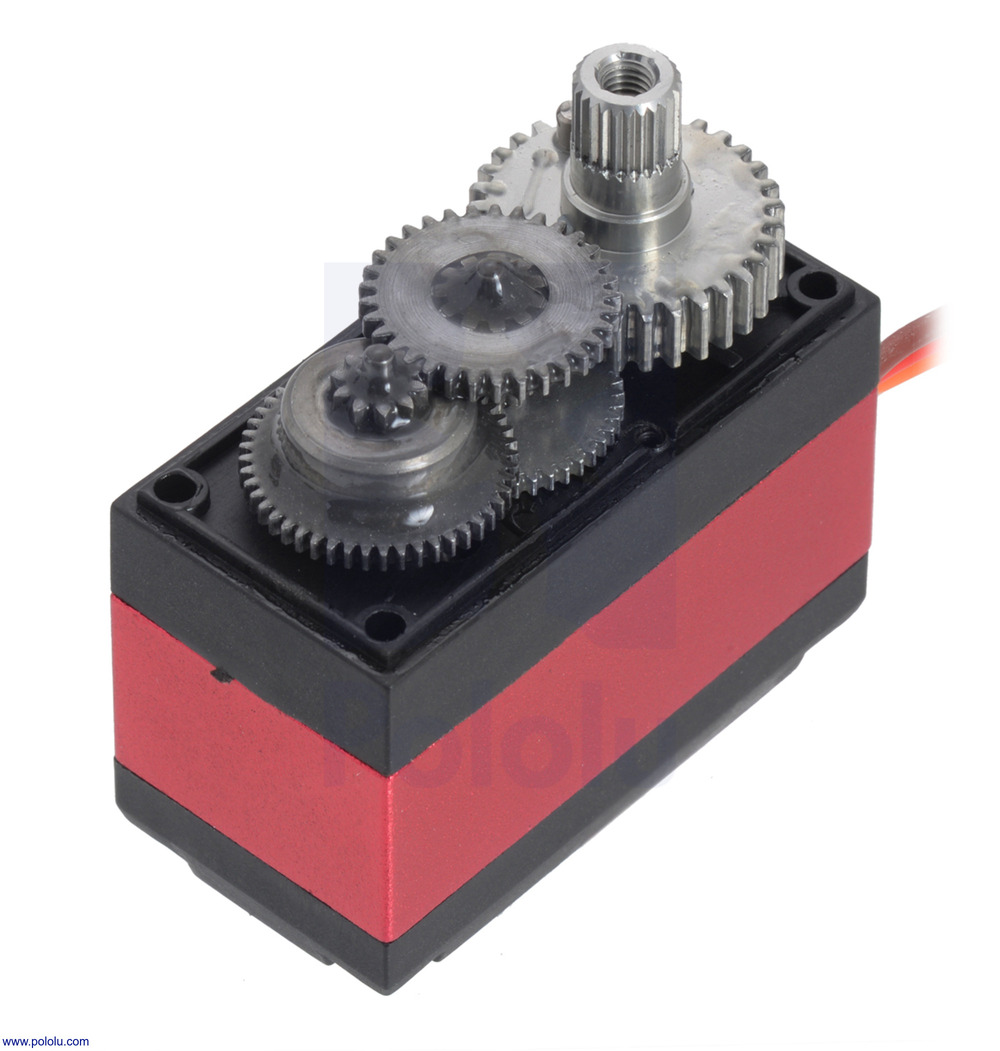

Constructed with an all-metal gear train, this servo is designed to handle high-torque demands while maintaining durability. The dual ball bearings further enhance its longevity and performance by reducing wear and tear during operation.

It's important to note that, like most hobby servos, the FT5313M can be damaged if stalled or back-driven. It can also draw bursts of current exceeding 4 A at 6 V, so a suitable power supply is necessary to prevent damage, especially compared to standard servos which typically draw around 1 A under strain.
