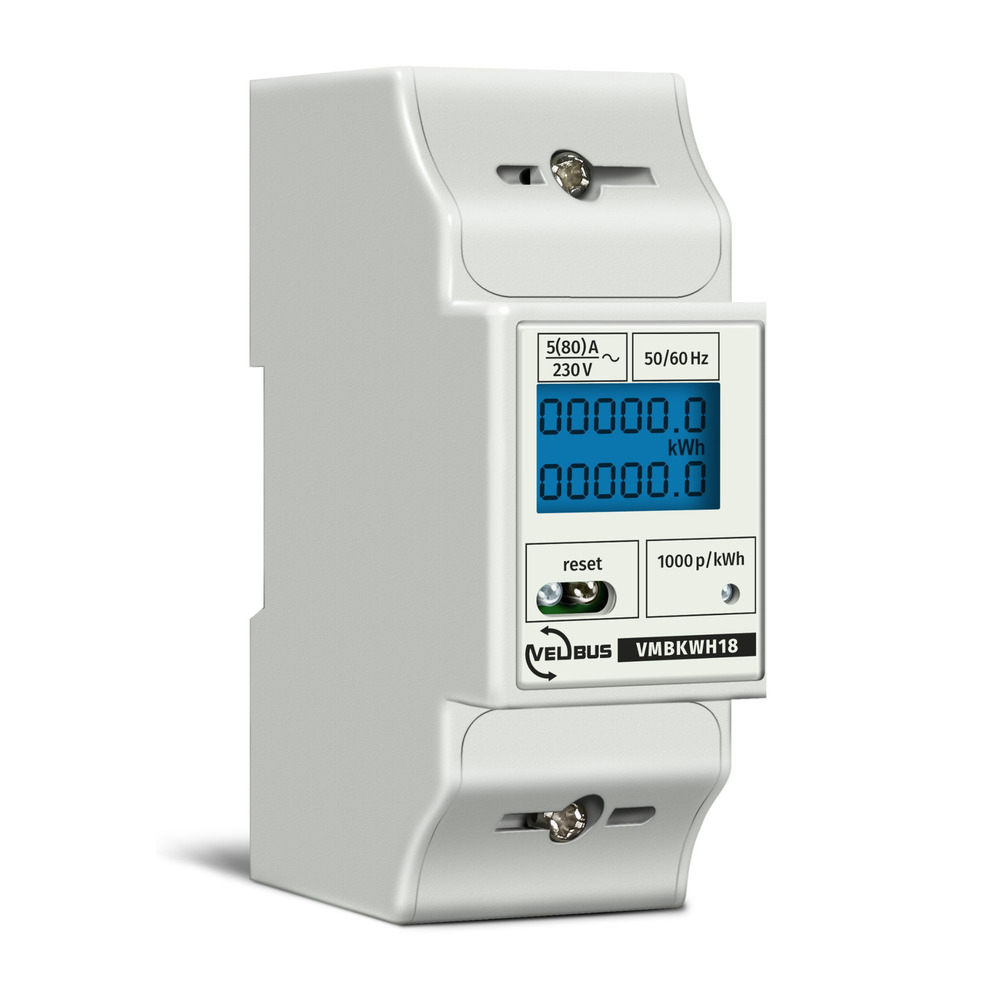

Velleman Eenfasige kWh-meter voor DIN-rail montage met micro-elektronische technieken

Item number EMDIN02 Brand Velleman Model EMDIN02  Share Write a review

Description

Deze eenfasige kWh-meter voor DIN-rail montage is ontworpen met de nieuwste micro-elektronische technieken en LSI-circuits. Met geavanceerde digitale en SMT-technieken biedt deze meter betrouwbare precisie.

De energiemeter voldoet aan de technische normen van klasse 1 en klasse 2, evenals de IEC62052-11 en IEC62053-21. Dit garandeert nauwkeurige en consistente metingen van actief energieverbruik in eenfasige elektriciteitsnetten van 50/60Hz.

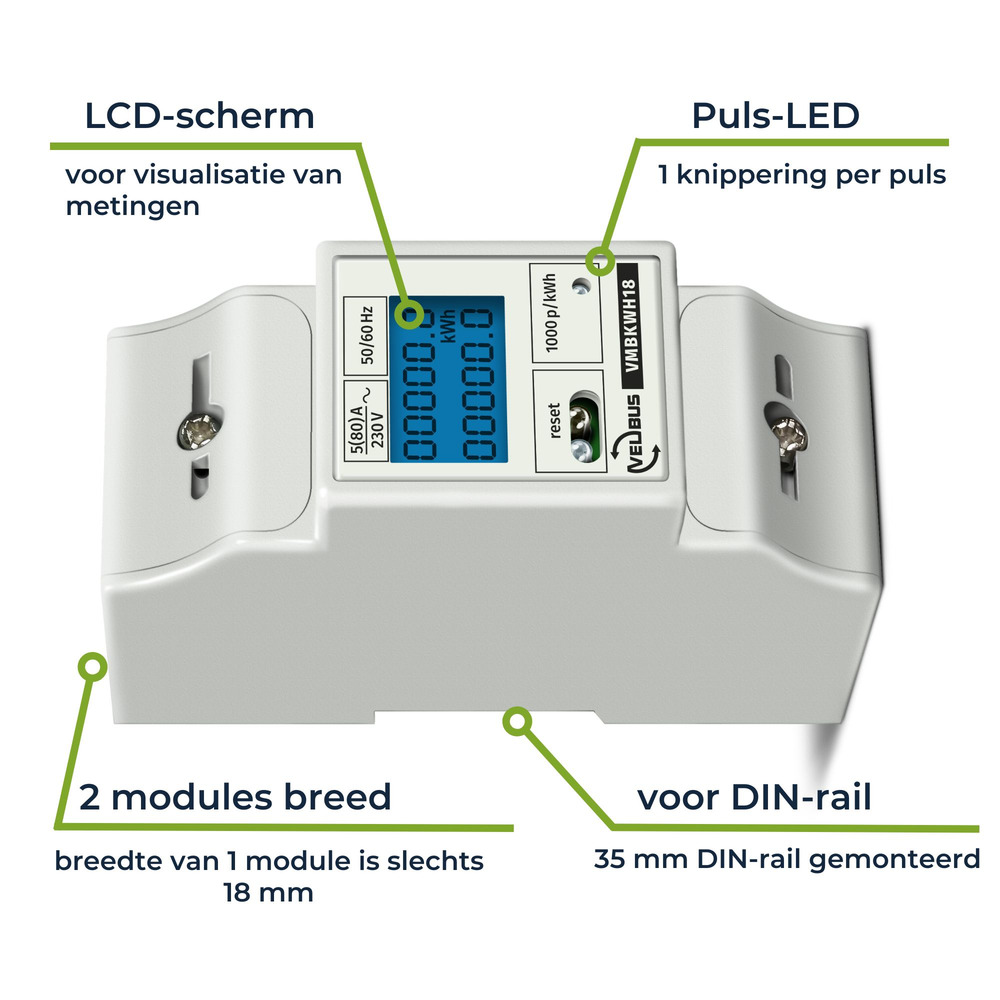

Met een compacte opbouw van 2 modules past hij eenvoudig in de meeste schakelkasten. De installatie op DIN-rail is snel en efficiënt, wat tijd bespaart en de installatie eenvoudig maakt.

Properties

Brand information

Brand	Velleman
Model	EMDIN02

Other

Primary colors	Gray
Extra colors	Blue

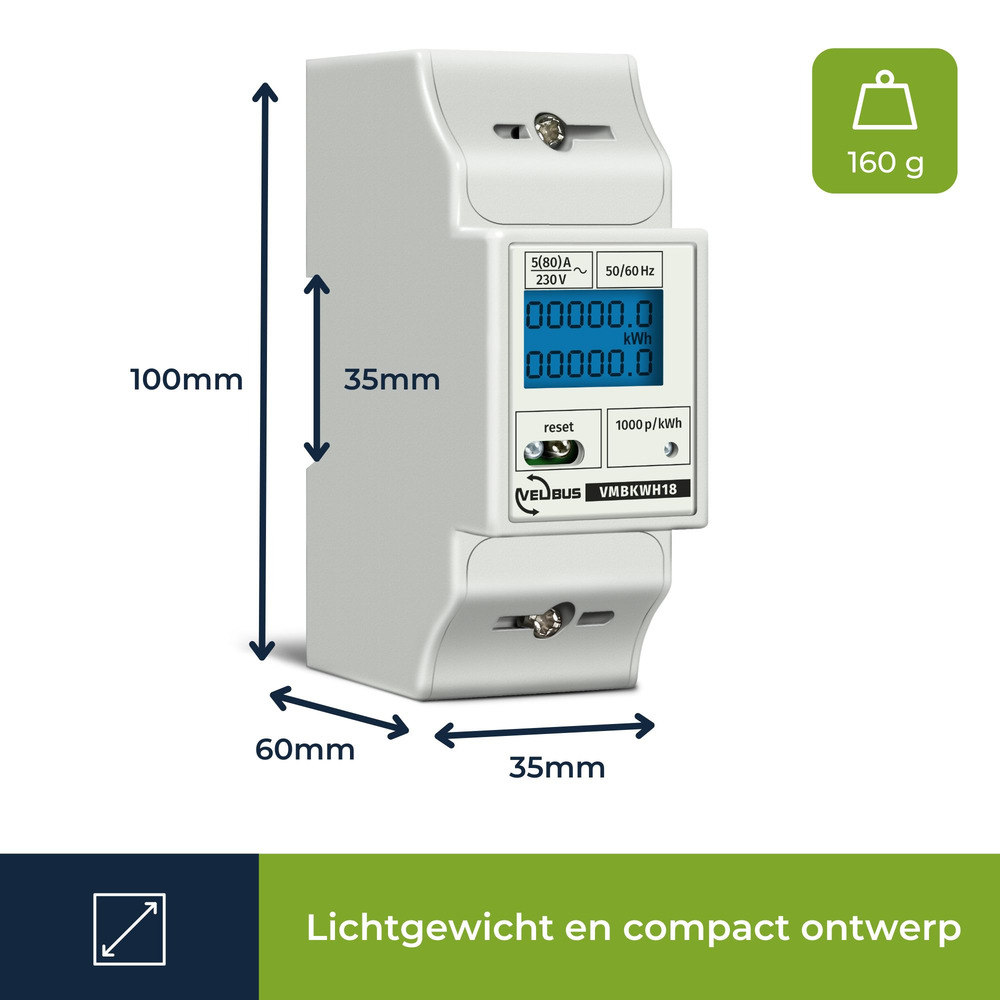

Depth of the product	100 mm
Height of the product	60 mm
Width of the product	35 mm
Weight Product	160 grams
Type of lamp	led
Display type	lcd
Entry frequency range	50/60 Hz
Power consumption capacity	2 weeks
LED indicator	Yes
Extra colors detailed	Metallic silver
Maximum operating temperature	55°C
Minimum operating temperature	It's -25°C.
Maximum nominal current	80 A
Accuracy class	1
Maximum wire size mm²	38 mm²
Reset function	Yes
DIN-rail	Yes
Maximum workplace humidity	75 %
Pulse width	90 milliseconds
Minimum wire size mm²	"7 mm²"
Width DIN modules	2
It doesn't appear to be a full sentence or phrase in a language I'm familiar with, but breaking it down, "Pulsuitgangsstroom" looks like it could be Dutch or Afrikaans. In English, it might translate to "pulse output current." If this is a technical term you're referring to, you can just call it that.	27 mA (milliamps)
DIN rail energy meters nominal voltage	240 volts
Minimum pulse output voltage	It looks like you've entered "12 V," which often refers to 12 volts in the context of electricity or batteries. If there's more context or additional text you'd like translated, please provide that and I'll be happy to help!
Maximum pulse output voltage	27 V DC
LED indicator blinks with each pulse	1
DIN rail energy meters minimum accuracy	5 A
Number of phases	1
PNP resistance	Yes
Impulse per kilowatt-hour	1000
Number of DIN modules	1
Maximum indication	999999.99
