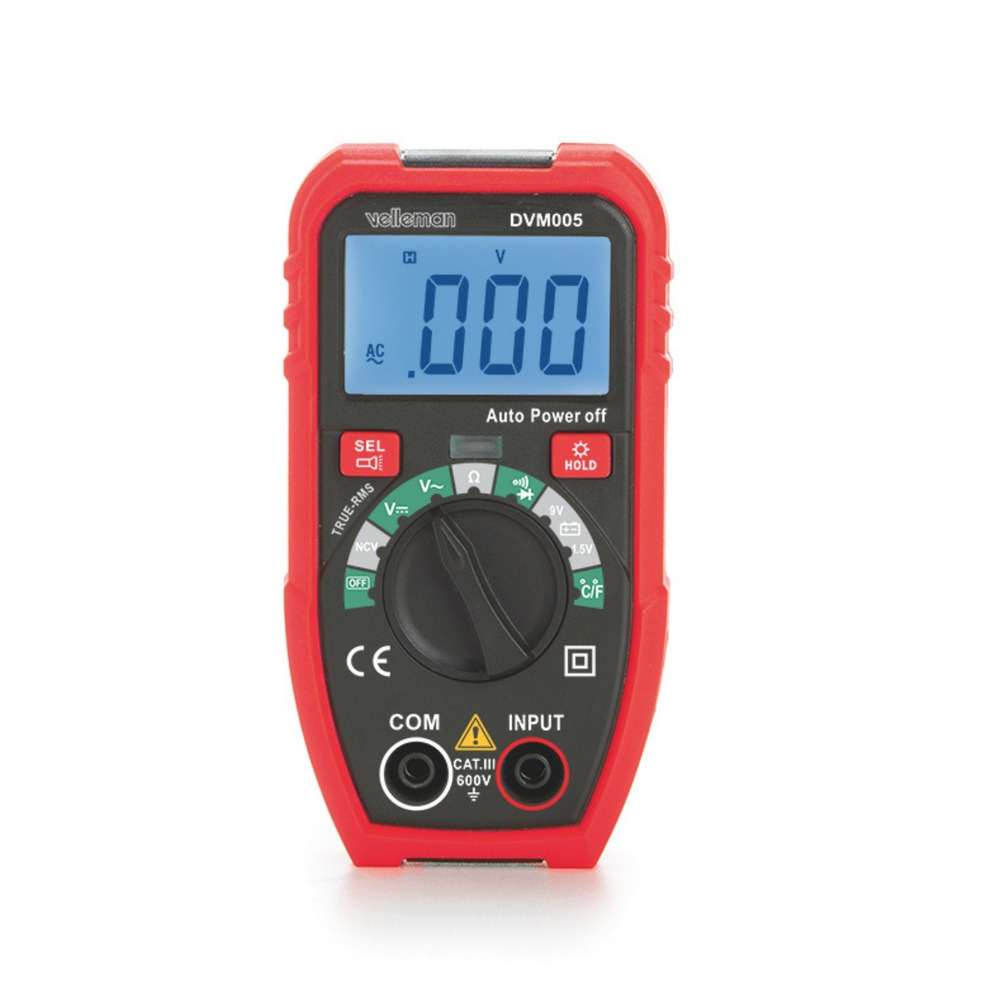

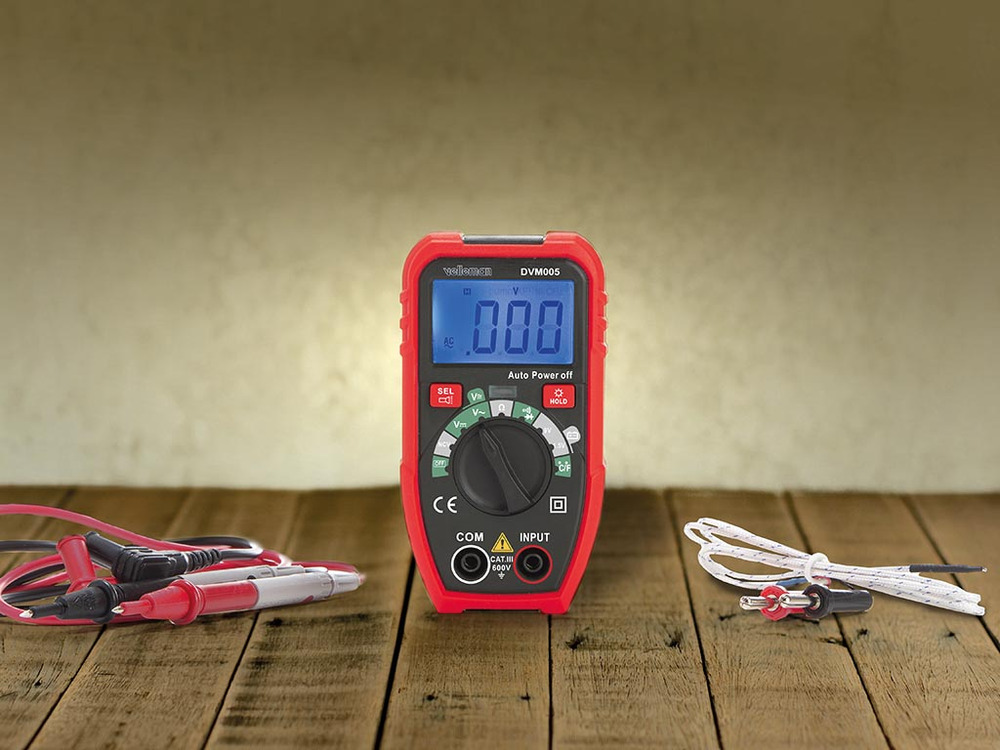

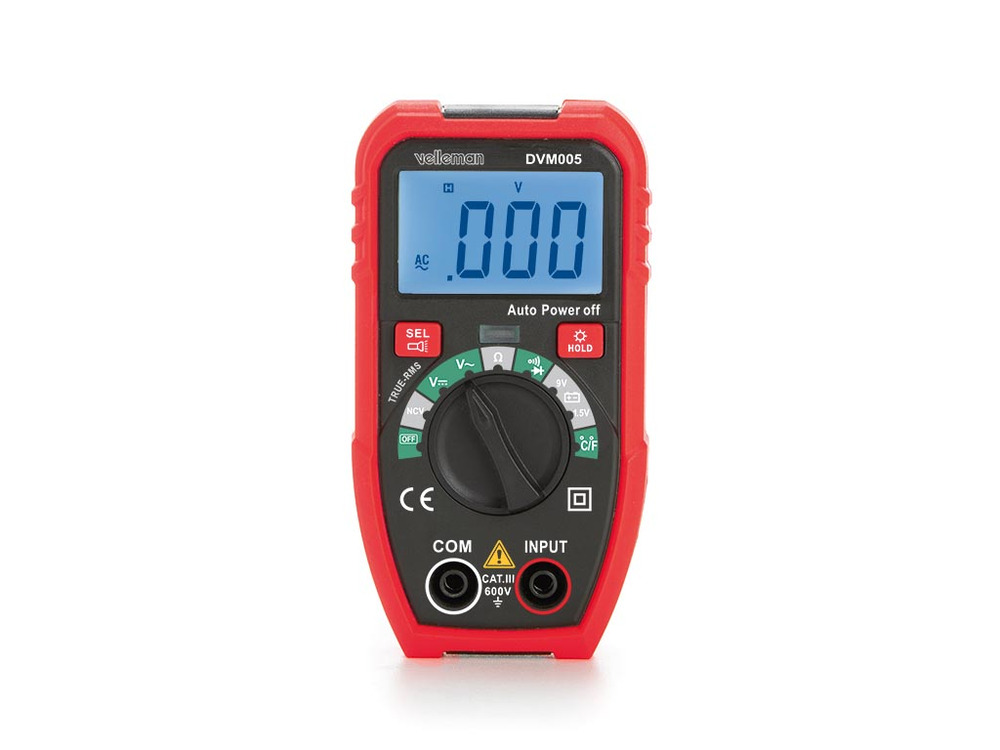

Velleman Compact Digital Multimeter - CAT III 600V Rated

Item number DVM005 Brand Velleman Model DVM005  Share Write a review

Description

This compact digital multimeter is a robust tool built for serious tasks. Rated at CAT III up to 600 V, it ensures safety and reliability for a range of electrical measurements.

With seven versatile functions, this device can measure voltage, current, resistance, and more. Perfect for quickly diagnosing electrical issues whether at home or on the go.

Featuring an easy-to-read digital display, it allows precision while its sturdy construction stands up to tough environments. Like a pocket-sized lab, it empowers every measurement with confidence.

Properties

Brand information

Brand	Velleman
Model	DVM005

Other

Battery IEC size	AAA (LR03, R03, FR03, HR03, KR03, ZR03, 24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)

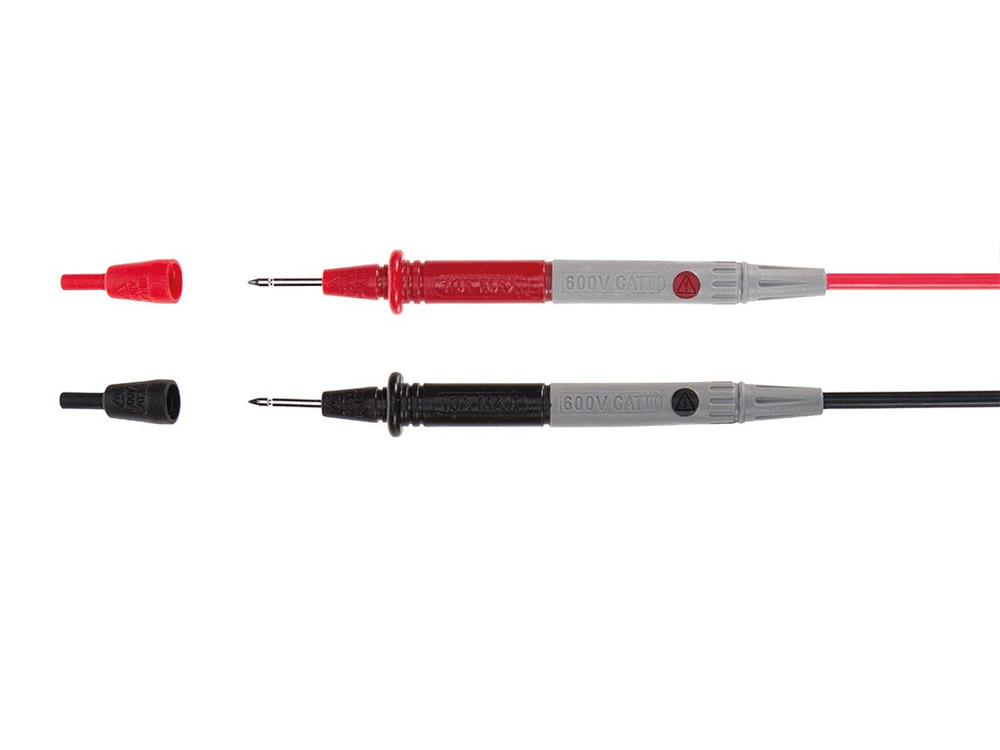

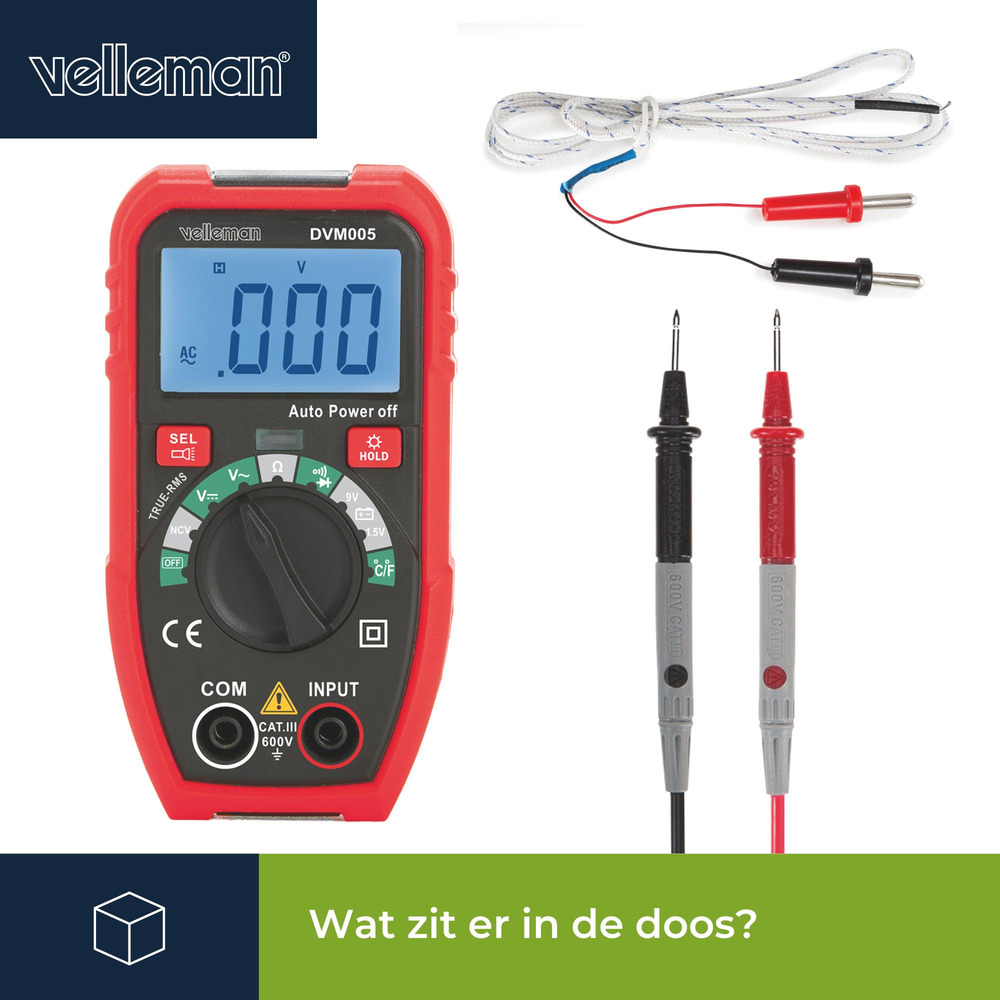

Cable length	0.85 meters
Primary colors	Red, gray
Height display	The translation "26 mm" is "26 mm" in English. Is this what you intended, or was there more context or additional text you'd like translated?
Extra colors	Blue

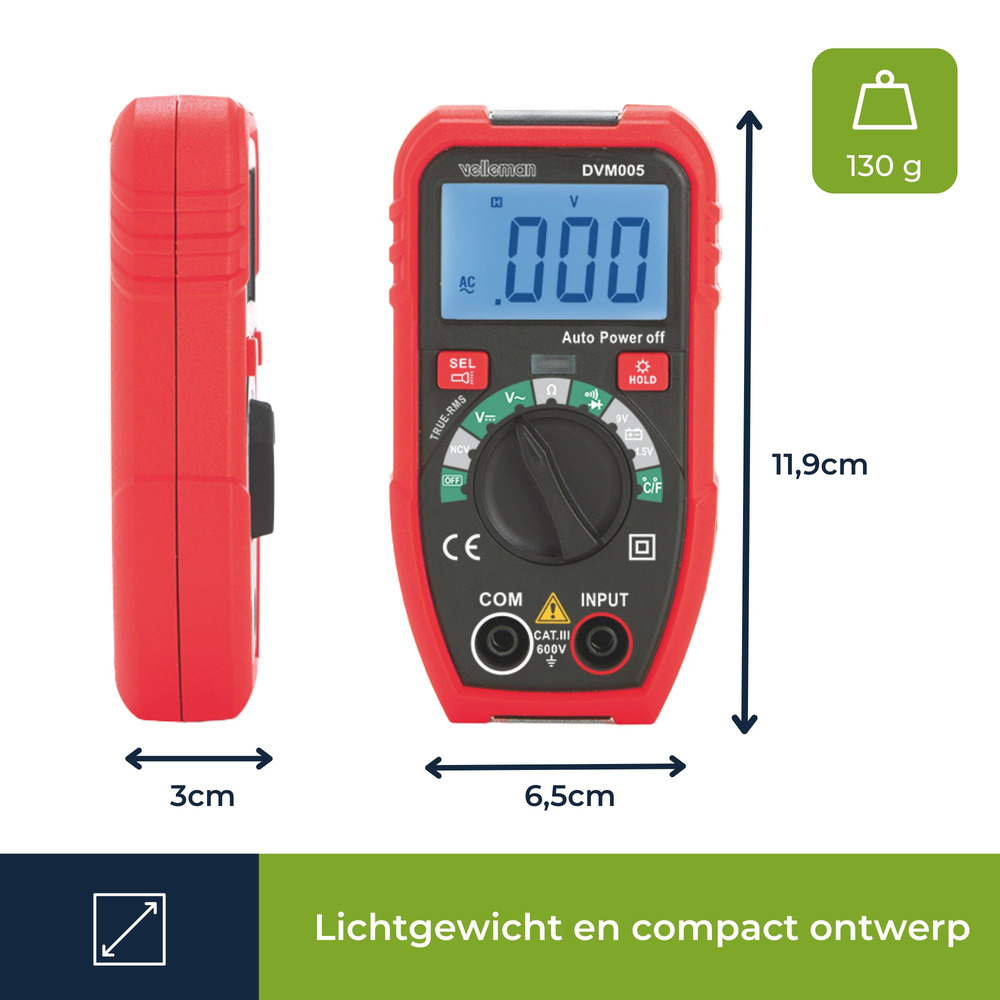

Depth of the product	30 mm
Height of the product	119 mm
Width of the product	"65 mm"
Weight Product	130 g
Display width	43 mm
IP value	IPX0 means there's no protection against water.
Automatic shut-off function	Yes
The translation for "AC-spanning" is "AC-spanning" since it is already in English. If you need more context or if this is part of a larger text, please provide additional information!	Base accuracy: ±(1.0%+10)
AC voltage measurements	It looks like you're listing voltage levels. Here's your list in English, keeping it informal:2 volts, 20 millivolts, 20 volts, 200 millivolts, 200 volts, 600 volts
DC voltage measurements	It looks like you're listing voltage levels. Here's your list in English, keeping it informal:2 volts, 20 millivolts, 20 volts, 200 millivolts, 200 volts, 600 volts
The text translates to "Remote stress test (NCV)" in English.	Yes

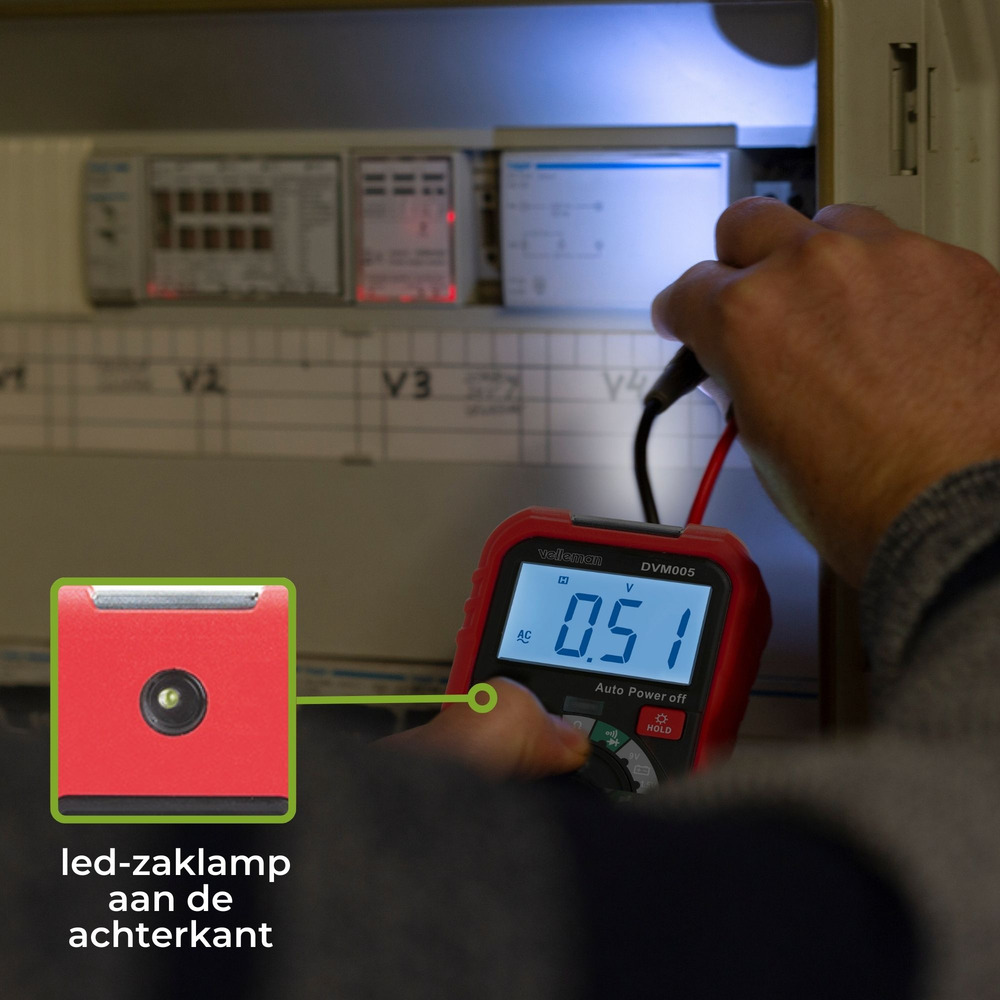

With LED light	Yes
Type of lamp	led
Batteries included	Yes

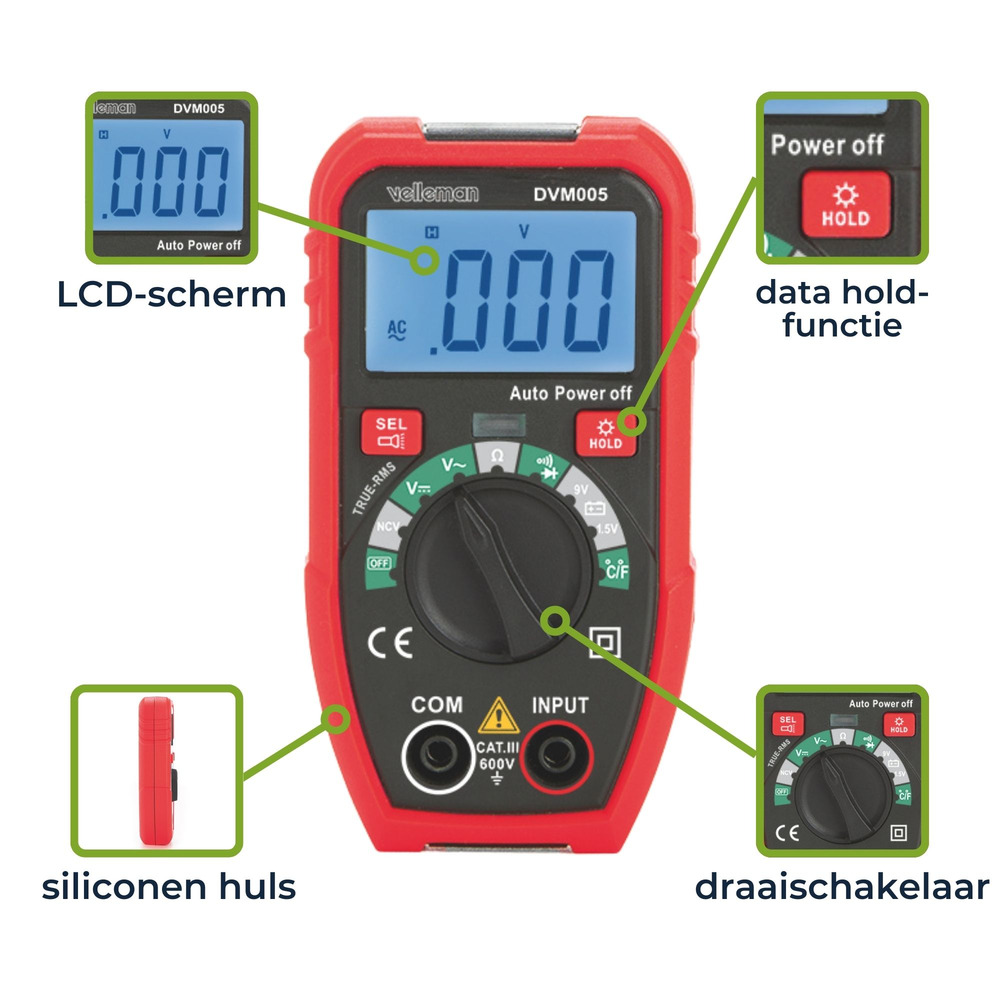

Data-hold function	Yes
"Setting range"	Automatically
Audible passage measurement	Yes
Automatic polarity indication	Yes
Battery test measurements	1.5 V, 9 V
Diode test	Yes
Maximum measuring temperature °C	1000°C
Maximum measurement temperature °F	1832 °F
Minimum measuring temperature °C	-20°C
Minimum meeting temperature °F	-4 °F
"Indication out of reach"	Yes
Relative value measurement	no
Resistance measurements	2 kOhm, 2 MOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 Ohm
Specifications resistance	Basic accuracy: ±(1.0%+5)
Transistor test	no
Where are we	Yes
Place of use	Only indoors
Low battery indicator	Yes
Continuity test	Yes

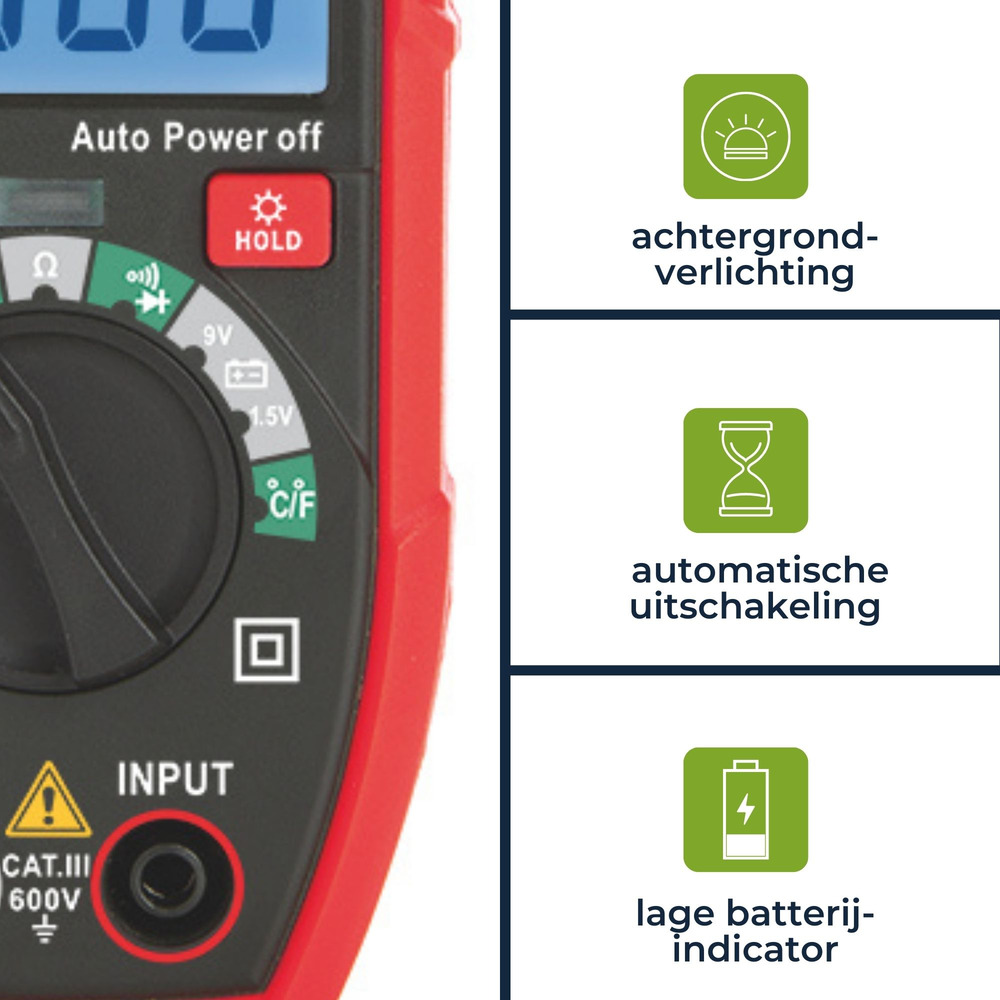

Backlight	Yes
Maximum grade display	4
Display type	lcd
Battery composition	The translation of "Alkaline" to English, while keeping it informal, is simply "Alkaline."
Languages of the manual	Dutch, English, French, German, Polish, Portuguese, Spanish
Automatic shut-off	Yes
Type stress tests	AC/DC
The number of people reached.	7

Connection data

Number of batteries

Datasheet

Material	ABS
Safety rating	The text "CAT III / 600 V" doesn't require translation as it appears to be a technical specification rather than a sentence in a particular language. If you need further context or explanation, let me know!
