Pololu A4988 Stepper Motor Driver Carrier, Black Edition

The A4988 Stepper Motor Driver Carrier, Black Edition, is a robust and versatile solution for controlling bipolar stepper motors with up to 2 A output current per coil. It features a straightforward step and direction control interface, supports five microstepping resolutions, and offers adjustable current control through a potentiometer. The driver includes over-temperature and crossover-current protection, short-to-ground and shorted-load protection, and operates on a four-layer, 56.7 g/m² copper PCB for enhanced heat dissipation.

Ideal for use in 3D printers, CNC machines, and robotics, this driver allows for precise control of stepper motors. Its microstepping capabilities enable smoother and quieter motor operation, crucial for applications requiring high precision and minimal noise. The adjustable current control feature allows for higher step rates by using voltages above the motor's rated voltage, enhancing performance without compromising safety.

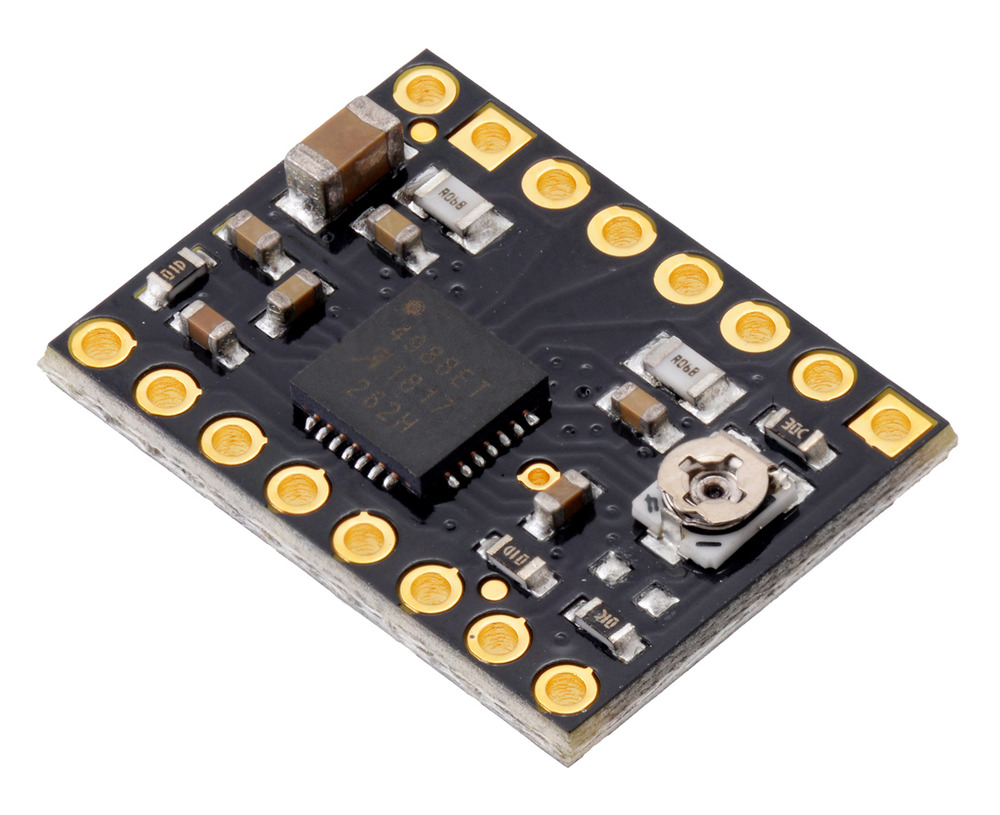

One of the standout features of this driver is its thermal management. The Black Edition's four-layer PCB design efficiently dissipates heat, enabling it to deliver up to approximately 1.2 A per phase without additional cooling. For those requiring even higher currents, the board can support up to 1.4 A per coil with active cooling, such as a fan.

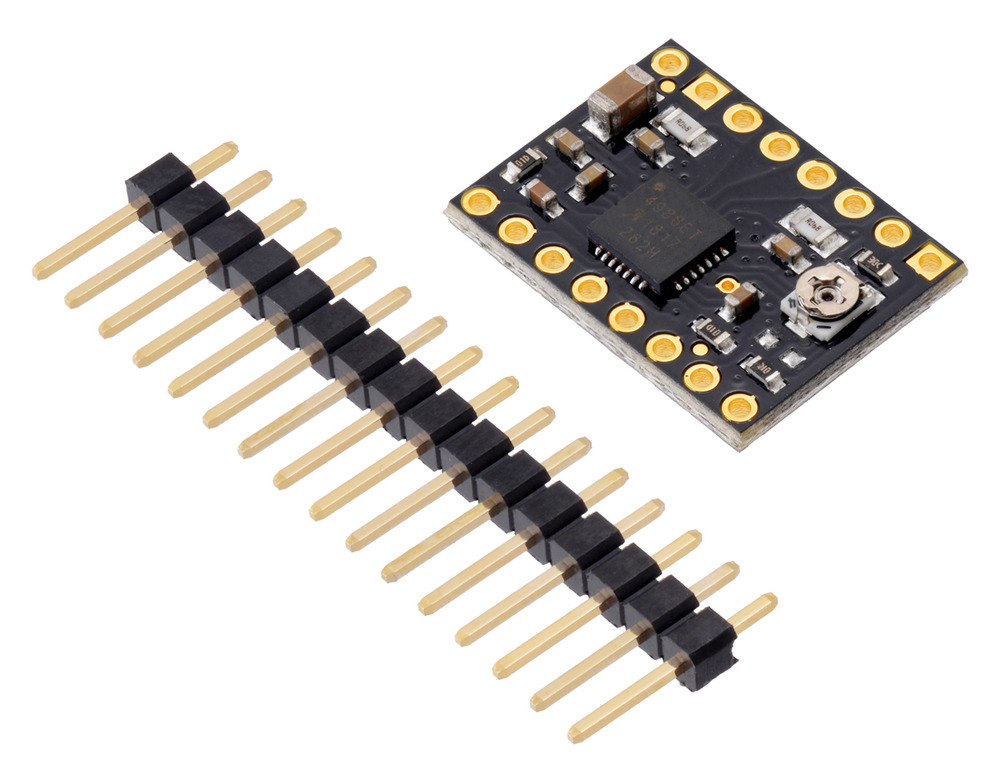

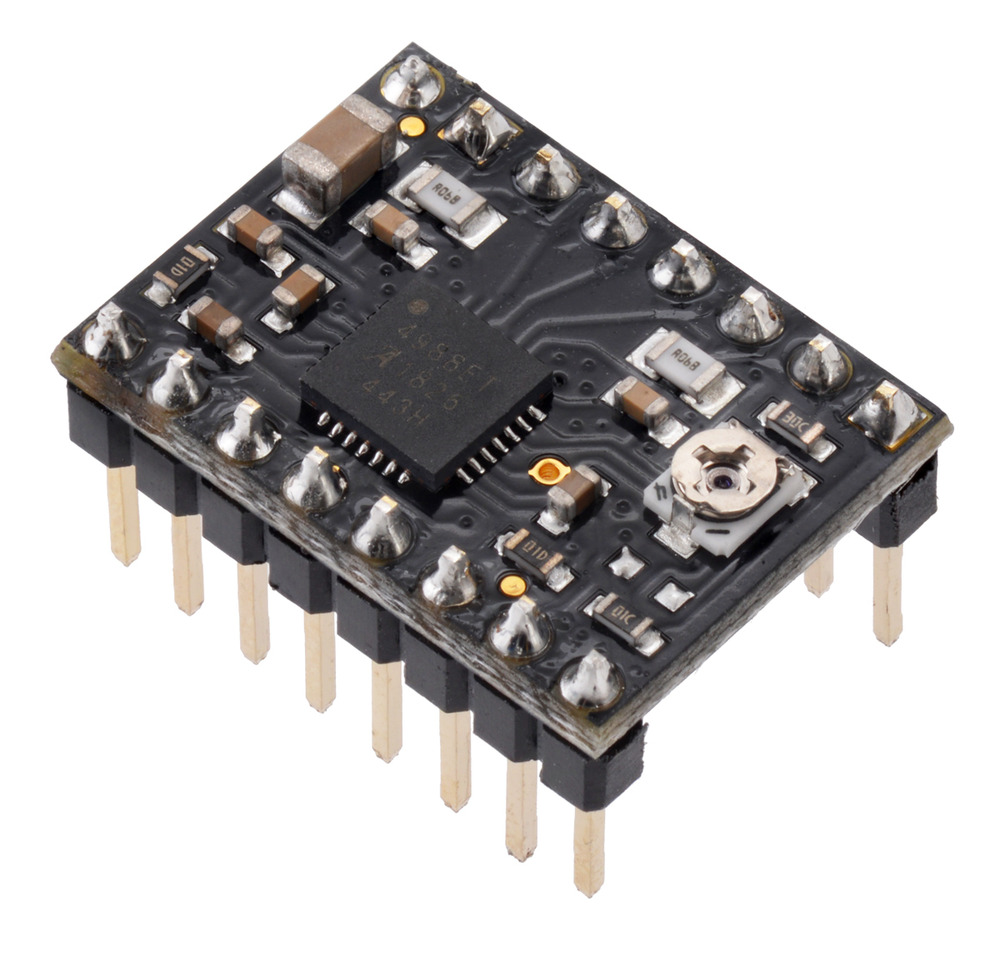

Users will appreciate the included 2.54 mm male header pins, which can be soldered for compatibility with solderless breadboards or female connectors. This flexibility allows for easy integration into various projects, whether you're prototyping or building a permanent installation.

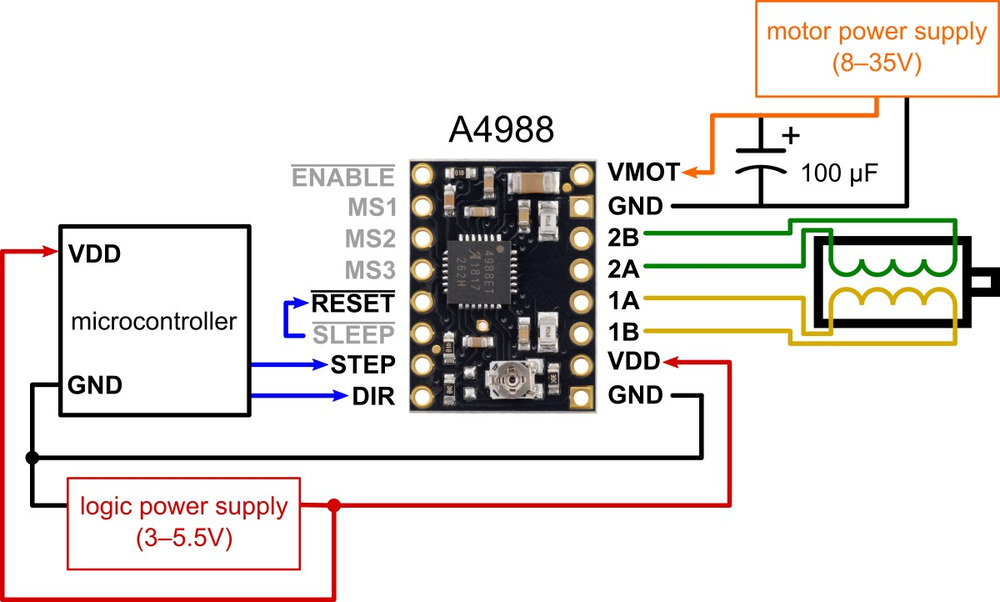

The driver requires both a logic supply voltage (3 – 5.5 V) and a motor supply voltage (8 – 35 V). Careful attention to power connections and decoupling capacitors is necessary to prevent voltage spikes that could damage the board. It's crucial to ensure that connections are made while the driver is powered down to avoid potential damage.

With its comprehensive protection features and ability to handle complex control tasks, the A4988 Stepper Motor Driver Carrier, Black Edition, is a reliable choice for hobbyists and professionals alike looking to drive stepper motors with precision and efficiency.
