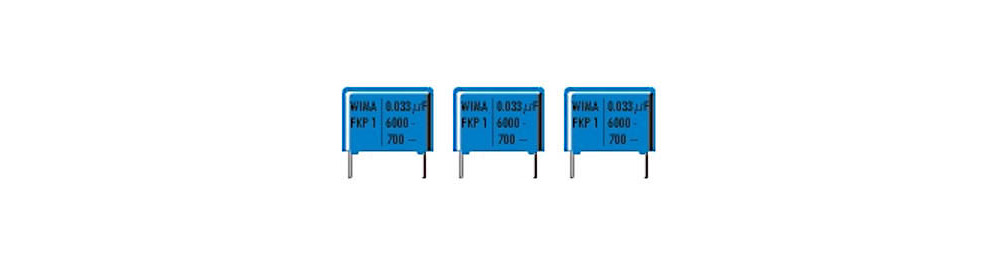

WIMA 1nF 2000V 15mm Capacitor
New
Description
The WIMA 1nF 2000V 15mm capacitor ensures optimal performance with its reliable internal connections. Utilizing a straightforward concept, the wire makes electrical contact with the entire end surface of the electrode, resulting in minimal inductance.
This design provides capacitors with excellent attenuation and self-resonance, supported by detailed technical data and graphs. Built with polypropylene film, it’s tailored for high current applications, accommodating pitch sizes from 7.5 to 37.5mm.
Properties
Brand information
| Brand | WIMA |
| Model | 15MX1 |
Other
| Test drive | 2 hours, 2 seconds. |
| Max. working pressure | It looks like you've given "2000V," which doesn't have any context to translate from another language to English. Could you provide more details or context to help with the translation? |
| Dielectric | Polypropylene film |
| Electrodes | Sure! The translation would be: "aluminum foil and double-sided metallized plastic film" |
| Housing | Flame-retardant plastic, UL 94 V-0, with epoxy seal in blue color / marking: black |
| Test category | "55/100/56 according to IEC" |
| Temperature range | -67°F to +212°F |
| Capacity tolerance | ± 20% (± 10%) |
Connection data
| Pitch | mm |
Datasheet
| Capacity | μF |
€ 3,30€ 2,75 Excl. VAT (NL)
WIMA 1nF 2000V 15mm Capacitor € 3,30 Customer questions
