Gainta Water-Resistant ABS Housing Enclosure
New
Description

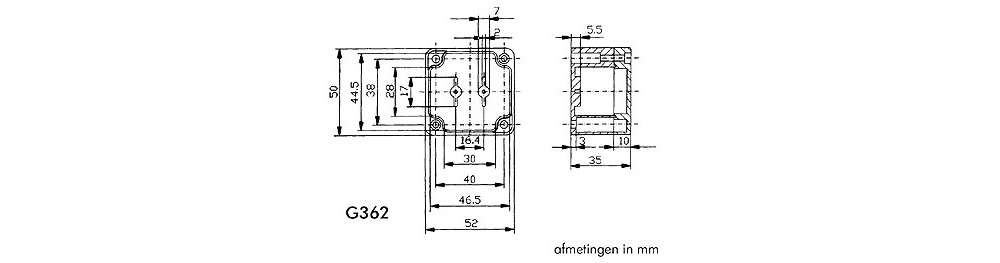

The water-resistant ABS housing in dark grey measures 52 x 50 x 35mm. Crafted from impact-resistant ABS material, it withstands temperatures ranging from -20°C to +100°C.
The lid and base plate feature a tongue and groove system with a neoprene seal, effectively preventing dust and moisture entry. Strategically positioned wall mounting openings and lid screw placements remain outside the sealed section.
Inside, grooves facilitate vertical PCB mounting, while brass threaded inserts in the base plate support horizontal PCB mounting and connector installation. Engineered to meet IP65 or IEC529 and NAMA4 standards, this enclosure is designed to be splash and dust-proof.
Properties
Brand information
| Brand | Gainta |
| Model | G362 |
Other
| Primary colors | Gray |
| Depth of the product | "35 mm" stays the same in English since it's a measurement. If that's part of a larger sentence or text, feel free to share more, and I'd be happy to help further! |
| Height of the product | 50 mm |
| Width of the product | 52 mm |
| Weight Product | Sure, here you go: "39 grams" |
| IP value | The text "IP65" doesn't need translation as it is a standardized code. In informal English, it generally indicates that a device is dust-tight and protected against water jets. |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | Horizontal |
| Lid | Yes |
| Primary detailed colors | Dark gray |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -20°C |
| Sealed. | Yes |
| Montagegaten translates to "Assembly Street" in English. | Yes |
Datasheet
| Material | ABS |
€ 7,10€ 5,85 Excl. VAT (NL)
