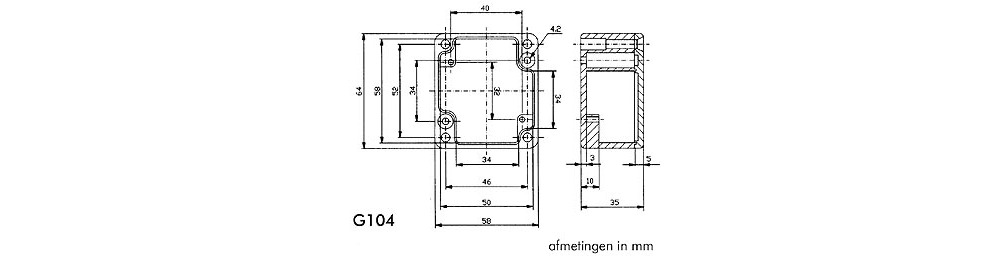

Gainta Waterproof Aluminum Enclosure 64x58x35mm

Maximize the protection of your sensitive equipment with a waterproof aluminum enclosure measuring 64 x 58 x 35mm. Perfect for housing delicate electronic, pneumatic, hydraulic, and electrical devices in both commercial and industrial environments.

Featuring efficient EMI and RFI shielding, these enclosures are built to meet IP65 or IEC529 and NEMA4 standards for dust and splash protection. Mounting holes and screws are located outside the sealed area to prevent the ingress of dust and moisture, ensuring uncompromised protection.

The lid is equipped with a recessed neoprene gasket, promising a secure seal. The G100 series enclosures are designed with internal studs on the bottom plate, allowing for horizontal PCB mounting or for grounding connections.

Inside slots enable vertical mounting of PCBs, with threaded bushings for lid screw placement and recessed bolts. Additional design features include 2 or 4 openings for easy horizontal PCB installation, providing flexibility and precision in assembly.
