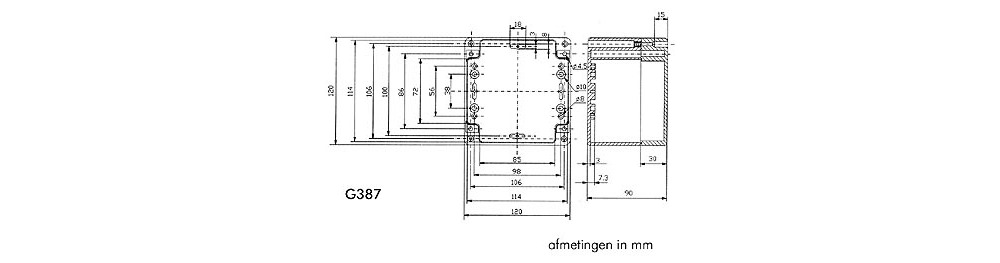

The water-resistant ABS enclosure is compact yet durable, measuring 120 x 120 x 90 mm. Its impact-resistant ABS material operates flawlessly between -20°C and +100°C. Equipped with a robust tongue-and-groove system, the lid and base plate ensure a precise neoprene seal, keeping dust and moisture at bay.
Ingeniously designed with external wall-mount openings, this enclosure prevents any compromise to its sealed section. The interior slots facilitate vertical PCB mounting, offering versatility in application.
Engineered to meet IP65, IEC529, and NEMA4 standards, this enclosure guarantees splash and dust resistance. Internally, the base features brass inserts for secure horizontal PCB and connector installation, ensuring reliability in a wide range of environments.
| Brand | Gainta |
| Model | G387 |
| Primary colors | Gray |
| Depth of the product | 90 mm |
| Height of the product | 120 mm |
| Width of the product | 120 mm |
| Weight Product | 270 g |
| IP value | The text "IP65" doesn't need translation as it is a standardized code. In informal English, it generally indicates that a device is dust-tight and protected against water jets. |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | Horizontal |
| Lid | Yes |
| Primary detailed colors | Dark gray |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -20°C |
| Sealed. | Yes |
| Montagegaten translates to "Assembly Street" in English. | Yes |
| Material | ABS |
