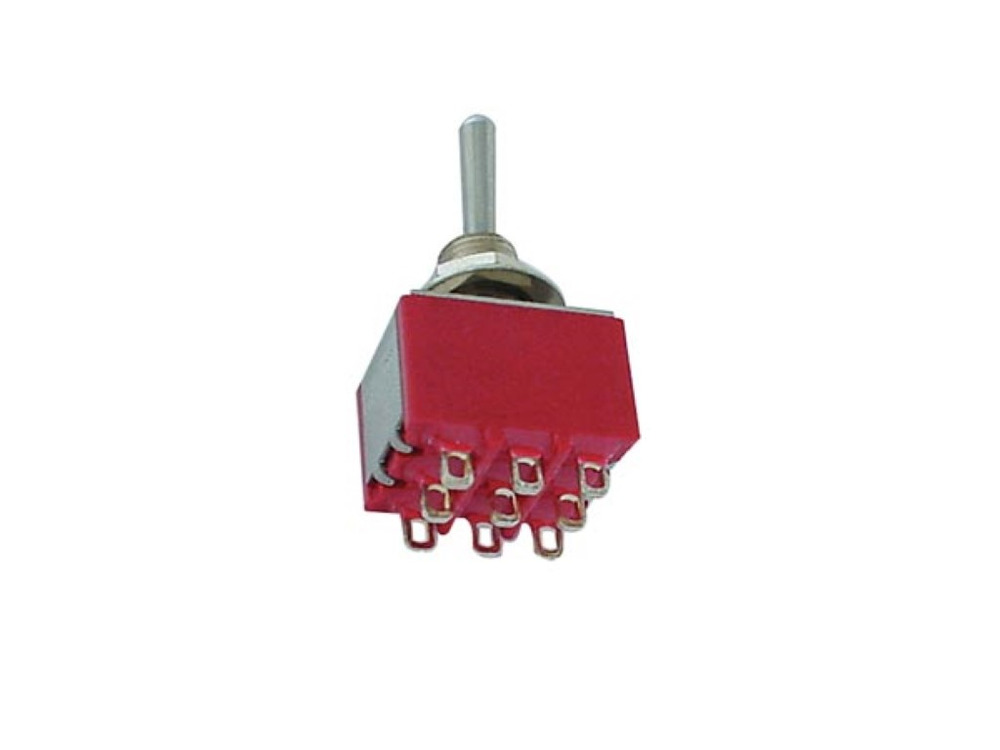

Daily Well VERTICALE TUIMELSCHAKELAAR 3PDT ON-ON Precision Switch
Description
The VERTICALE TUIMELSCHAKELAAR 3PDT ON-ON offers precision switching with a three-pole double-throw configuration. Designed for seamless integration into complex electrical systems, it provides reliable operation in various applications, from audio equipment to industrial controls.
Key features include gold-plated contacts for enhanced conductivity and durability, a robust metal casing for long-lasting performance, and a straightforward ON-ON switching mechanism. Each switch supports up to 15A 250VAC, ensuring optimal power management.
Ideal for tasks requiring precise circuit transitions, the switch operates effortlessly with a gentle toggle motion, akin to flipping a light switch. Its vertical design offers a compact solution for space-conscious setups, ensuring minimal surface disruption while ensuring versatility and high performance.
Properties
| Brand | Daily Well |
| Model | 8301 |
| Dielectric strength | 1000Vrms at sea level |
| Insulation resistance | Minimum 1000 megaohms. |
| Note | - |
| Contact | 5A with a resistive load of 120Vac or 28Vdc |
| Working temperature | -30°C to +85°C |
| OPEN | The Dutch word "GEEN" translates to "NO" in informal English. |
| Electric lifespan | 50,000 make-and-break cycles at maximum load |
| Contact resistance | Initially max. 10mohm at 2-4Vdc / 10mA for silver-plated and gold-plated contacts |
| Housing (materials) | Melamine of diallyl phthalate (DAP) |
| Steel | Chromed brass |
| The word "Schroefdraad" translates to "screw thread" in English. | Nickeled brass |
| Frame | Stainless steel |
| Contacts (materials) | cashed in |
| Connections | Silver-plated brass |
| The term "Middencontact" can be informally translated to "center contact" or "middle contact." However, if there's a specific context or additional meaning, please let me know! | Silver-plated brass |
| 2-3, 5-6, 8-9 | ON |
| 2-1, 5-4, 8-7 | ON |
