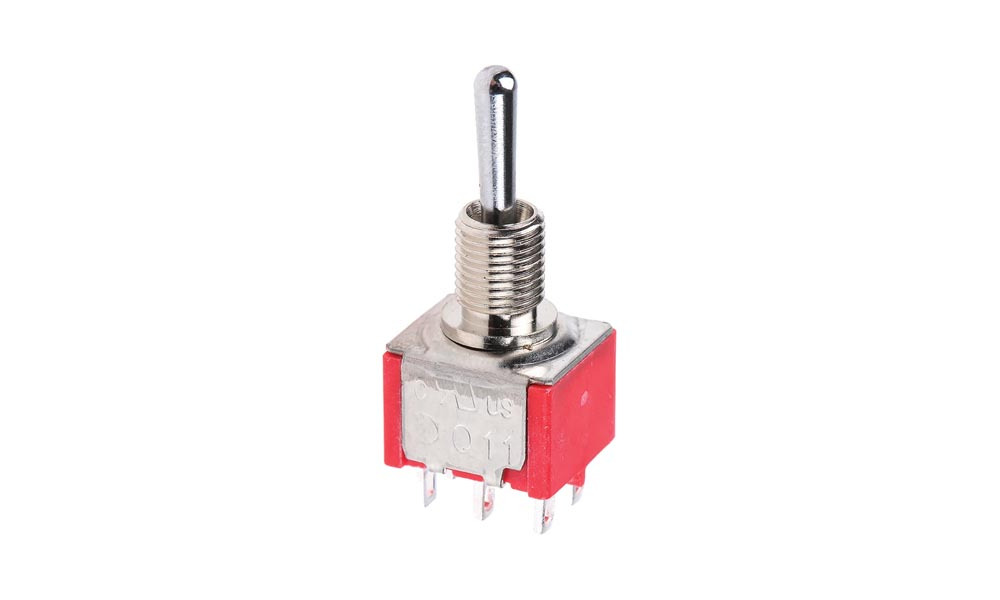

Daily Well VERTICALE TUIMELSCHAKELAAR 3-weg DPDT ON-ON-ON

Item number 812 Share Write a review
Daily Well VERTICALE TUIMELSCHAKELAAR 3-weg DPDT ON-ON-ON



Description

The VERTICALE TUIMELSCHAKELAAR 3-weg DPDT ON-ON-ON is a reliable solution for multi-directional control. This vertical toggle switch offers precision with a dependable tactile response, perfect for intricate circuits and applications requiring three-position control.

Designed to carry dual pole signals, it simplifies complex switching with ease. Its sturdy construction ensures durability, making it ideal for continuous use in demanding environments.

Specifications include a dual pole dual throw configuration with three stable positions. Effortlessly transition between on states to manage multiple operations as seamlessly as flipping a switch.

Practical in scenarios like controlling dual motors or adjusting light settings, this switch is a versatile choice for seamless electrical operation.

Properties

Brand information
Brand Daily Well
Model812
Other
Dielectric strength 1000Vrms at sea level
Insulation resistance Minimum 1000 megaohms.
Note -
Contact 5A with a resistive load of 120Vac or 28Vdc
Working temperature -30°C to +85°C

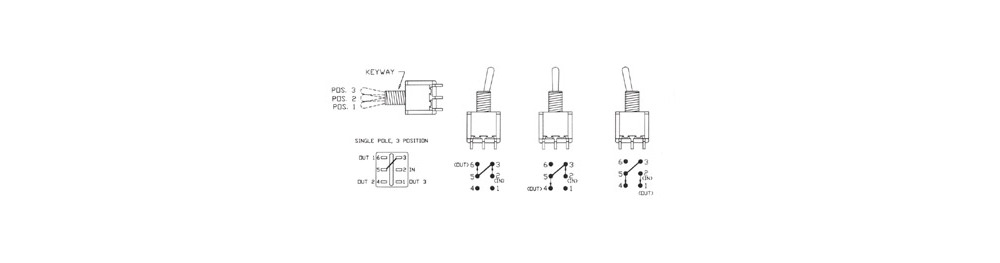

2-3, 5-6 ON
2-1, 5-4 ON
Electric lifespan 50,000 make-and-break cycles at maximum load
Contact resistance Initially max. 10mohm at 2-4Vdc / 10mA for silver-plated and gold-plated contacts
Housing (materials) Melamine of diallyl phthalate (DAP)
Steel Chromed brass
The word "Schroefdraad" translates to "screw thread" in English. Nickeled brass
Frame Stainless steel
Contacts (materials) cashed in
Connections Silver-plated brass
The term "Middencontact" can be informally translated to "center contact" or "middle contact." However, if there's a specific context or additional meaning, please let me know! Silver-plated brass
2-3, 5-4 ON
€ 3,30€ 2,75 Excl. VAT (NL)
Out of stock
Daily Well VERTICALE TUIMELSCHAKELAAR 3-weg DPDT ON-ON-ON € 3,30
Show volume discounts Shipped from € 3,50 (NL) 30 days cooling-off Excellent service
