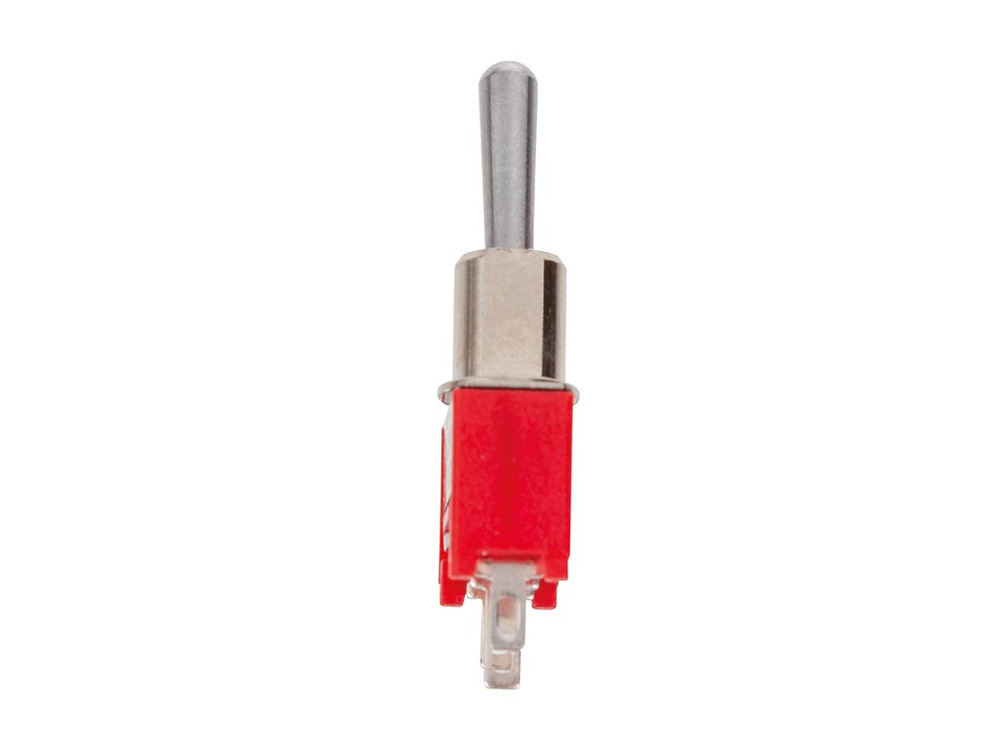

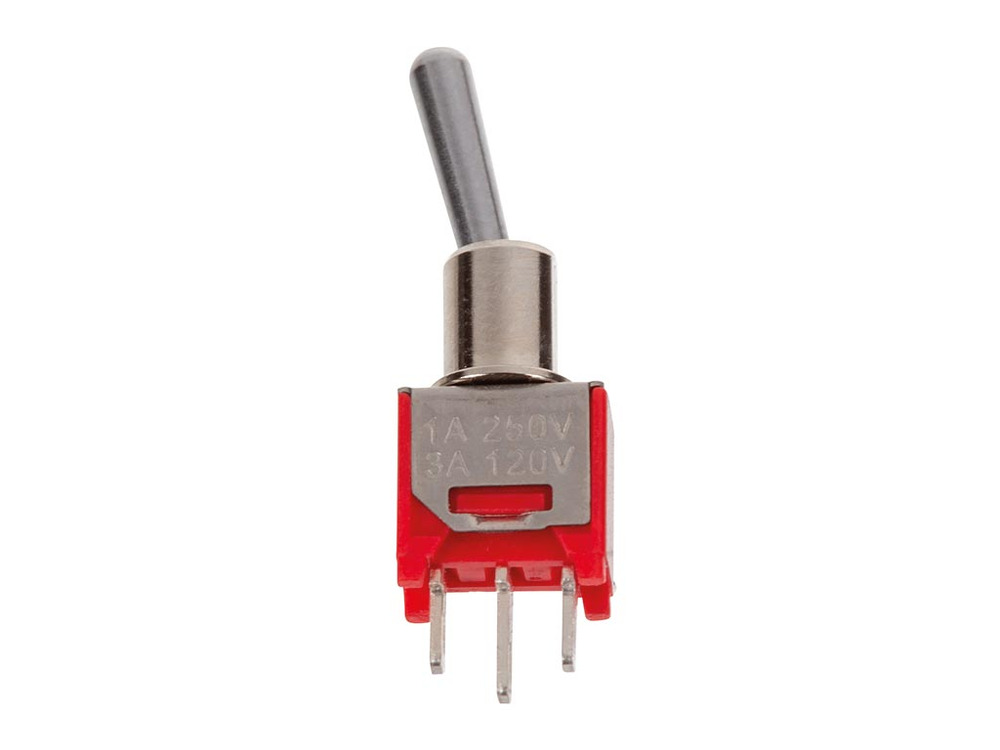

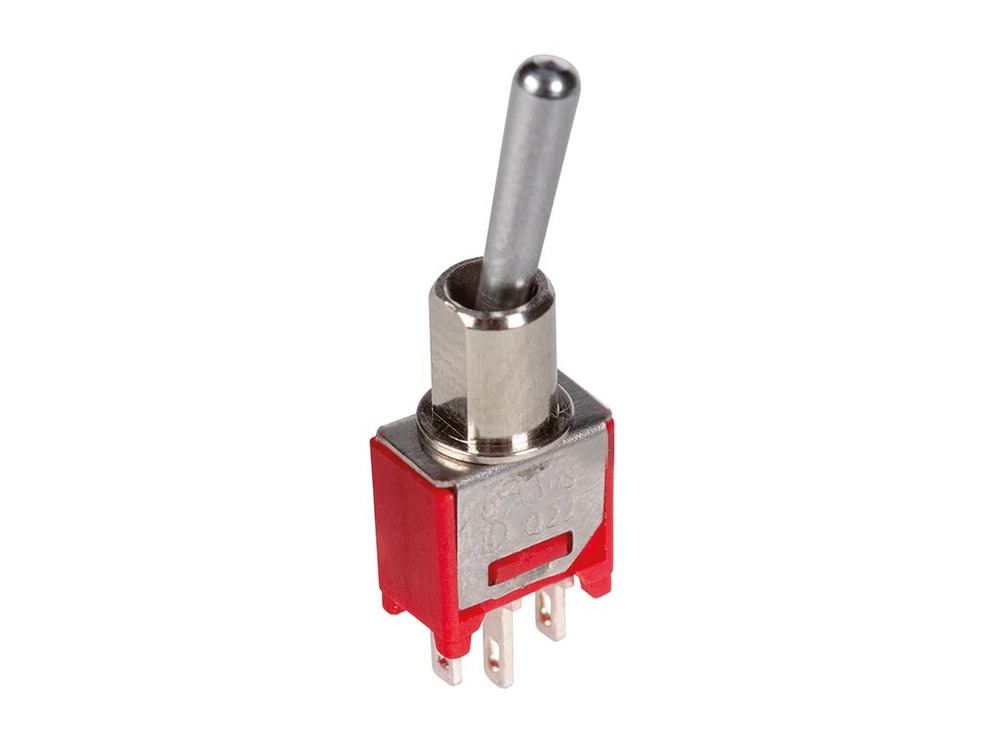

Daily Well Verticaal Subminiatuur Tuimelschakelaar voor PCB-montage
New
Description
De verticaal subminiatuur tuimelschakelaar is perfect voor nauwkeurige, PCB-montagesituaties. Deze enkelpolige schakelaar biedt een stabiele "ON-(ON)" functionaliteit en is ideaal voor beperkte ruimten.
Specificaties: Hoge duurzaamheid; contactweerstand 50mΩ; omschakelspanning 6A bij 125VAC, 2A bij 250VAC. Compact ontwerp optimaliseert PCB lay-out zonder functionaliteit te compromitteren.
Properties
Brand information
| Brand | Daily Well |
| Model | TS-4BE |
Other
| Dielectric strength | 1000Vrms at sea level |
| Housing | Stainless steel |
| Insulation resistance | Minimum 1000 megaohms. |
| Note | for circuit board / no threading |
| Contact | 3A with resistive load of 12Vac or 28Vdc |
| Working temperature | -30°C to +85°C |
| OPEN | The Dutch word "GEEN" translates to "NO" in informal English. |
| Electric lifespan | 60000 make-and-break cycles at max load |
| Contact resistance | initially max. 20mohm at 2-4Vdc / 100mA for silver-plated and gold-plated contacts |
| Steel | Chromed brass |
| The word "Schroefdraad" translates to "screw thread" in English. | Nickeled brass |
| Contacts (materials) | cashed in |
| Connections | electrolytically applied brass |
| The term "Middencontact" can be informally translated to "center contact" or "middle contact." However, if there's a specific context or additional meaning, please let me know! | Silver-plated brass |
| 2-3 | ON |
| 2-1 | (ON) |
| It seems like you want a translation, but the text "Huls" is not clear in its current form or language. Could you provide more context or check if there's a typo? That way, I can help you more effectively! | Diallyl phthalate (DAP) |
€ 3,80€ 3,15 Excl. VAT (NL)
