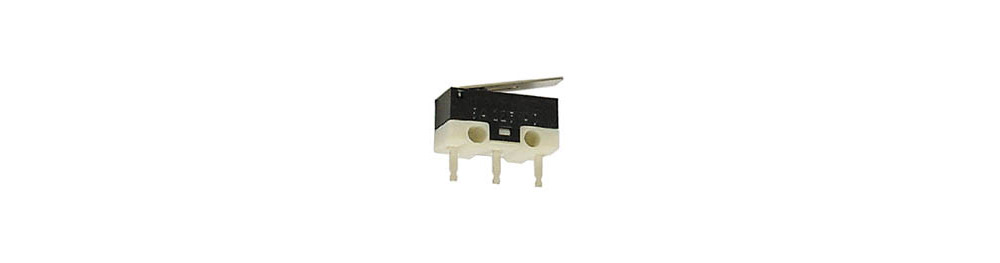

Explore the intricacies of compact control with our Super Miniatuur Microschakelaars 3A, expertly designed for space-limited environments. These micro switches ensure precise operation, delivering reliable performance even in challenging conditions.
Engineered for versatility, they serve multiple applications from consumer electronics to automotive engineering. Their compact size doesn’t compromise their strength, handling a maximum current rating of 3 amperes effortlessly.
Experience superior reliability with their robust construction, excellent for tasks requiring fine movements. Each switch is designed for seamless integration, offering long-lasting durability and accurate micro-control suitable for intricate devices.
| Brand | Patterson |
| Model | MS3-LPCB |
| Dielectric strength | 1000VAC for 1 minute |
| Insulation resistance | 100MOhm min. (at 500Vdc) |

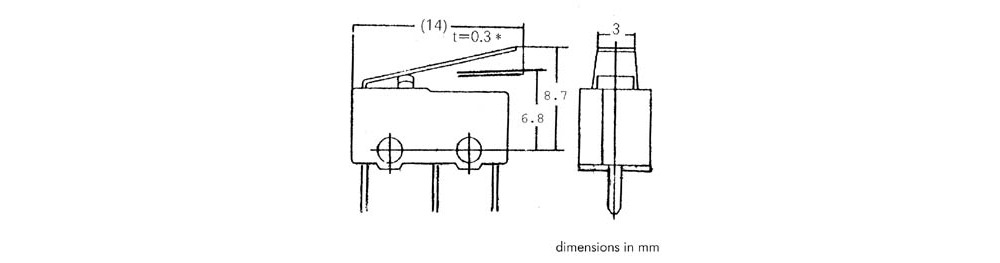

| Dimensions | 6.5 x 12.8 x 5.8mm |
| Electric lifespan | At least 100,000 switches at maximum load. |
| Contact resistance | Initially max. 15mohm |
| Mechanical lifespan | Minimum 1,000,000 switches. |
