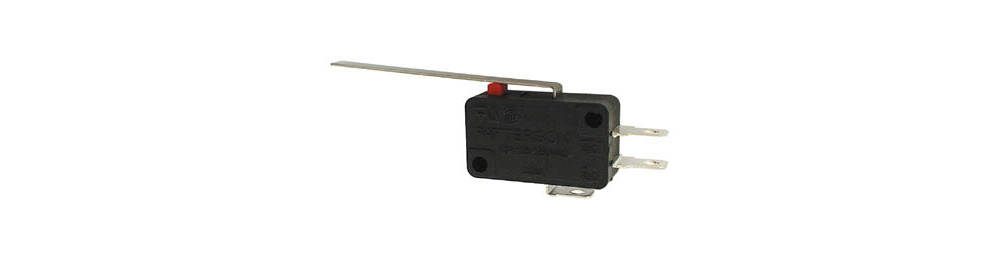

Engineered for precision, the Microschakelaar 12A with its extended handle, offers seamless control across various applications. Its compact size belies its robust performance, ensuring dependable operation whenever and wherever needed.
Experience exceptional durability with its high-quality construction, built to withstand intense environments. The 12A rating guarantees it can handle substantial electrical loads, making it ideal for both rigorous and delicate tasks. Its long handle provides mechanical advantage, allowing for effortless switching even in hard-to-reach areas.
Whether toggling machinery or configuring intricate circuits, the Microschakelaar's precision delivers. This switch is perfect for environments where accuracy and reliability are non-negotiable, ensuring smooth operational flow and minimal downtime.
| Brand | Patterson |
| Model | MS12-L |
| Dielectric strength | 1000VAC for 1 minute |
| Insulation resistance | At least 100M ohm (at 500VDC) |

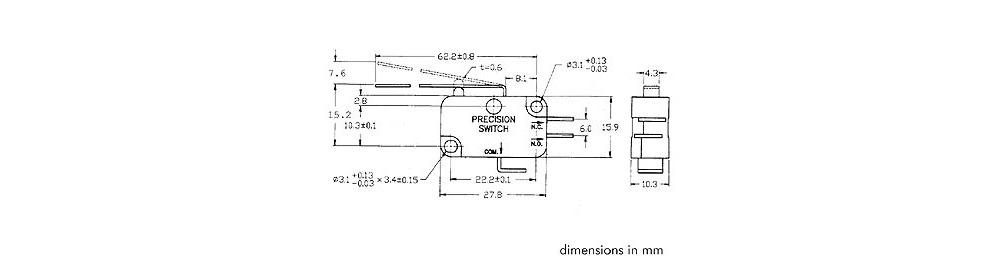

| Dimensions | 15.9 x 27.8 x 10.3mm |
| Values | 12A at 125VAC, 6A at 250VAC |
| Electric lifespan | Minimum 100,000 switches (at max load) |
| Contact resistance | Initially max. 15M ohm |
| Mechanical lifespan | minimum of 1,000,000 switches |
| Service staff | 60 grams |
| Resilience | It looks like you've entered "7g," but I need more context or text to provide a translation. Could you provide more details? |
