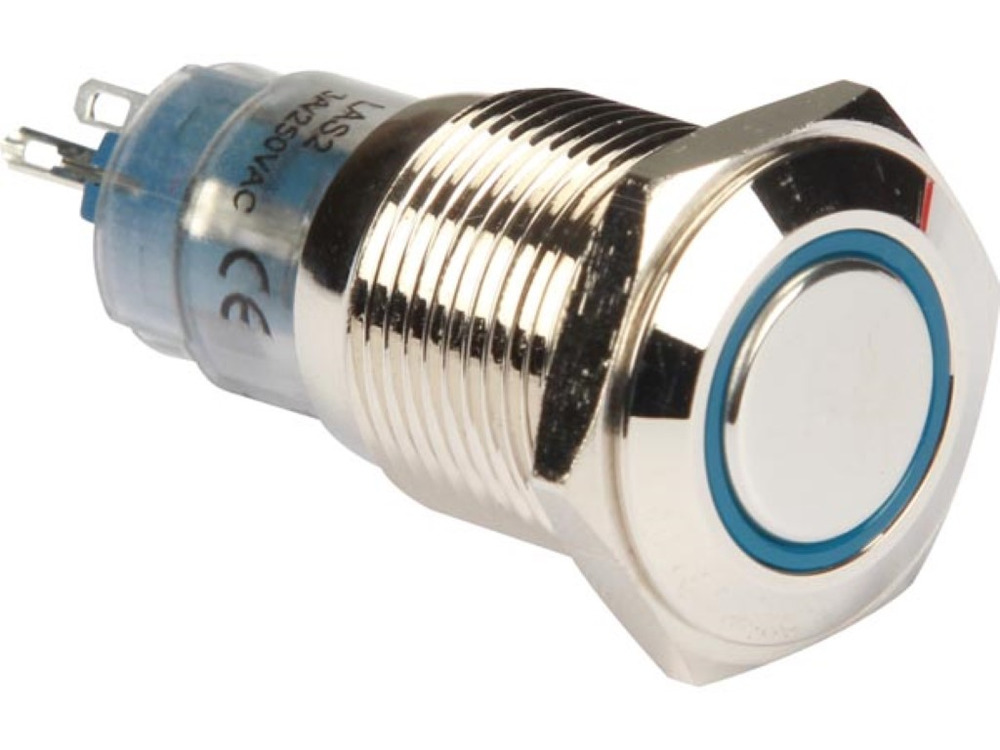

The Ronde Metalen Drukknop SPDT 1NO 1NC - Blauwe Ring is a robust and reliable switch solution crafted for seamless integrations.

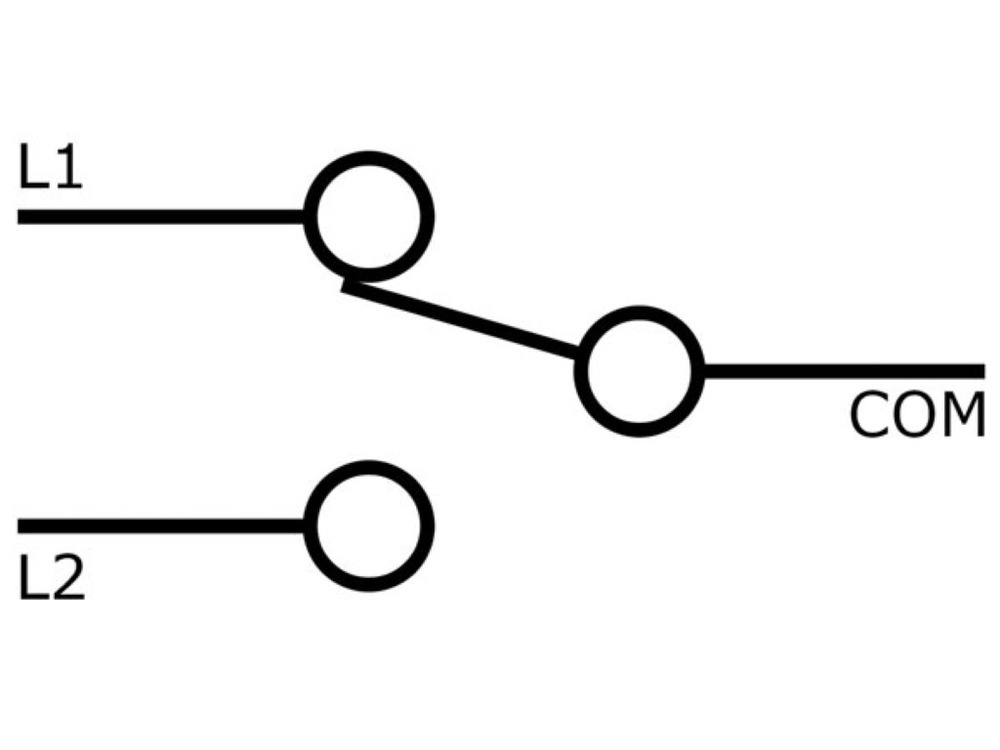

Features include a Single Pole Double Throw (SPDT) mechanism with one normally open (1NO) and one normally closed (1NC) contact, providing versatile switching capabilities. The striking blue illumination adds a visual cue for operational status, ensuring clear feedback in any application.
Designed with a sturdy metal construction, this pushbutton is built to withstand demanding environments. It's perfect for control panels, custom enclosures, or any system requiring a durable and efficient switch.
| Brand | Onpow |
| Model | R1600B |
| Type | on-off |
| Insulation resistance | Over 1000M ohms |
| Working temperature | -4°F ~ +158°F |
| Electric lifespan | 50,000 cycles |
| Contact resistance | less than 50 million ohms |
| Contact material | cashed in |
| IP value | IP40 |
| Mechanical lifespan | 1,000,000 cycles |
| Humidity level | 45 ~ 85% humidity |
| Between terminals of the same group | 1000 volts AC |
| Between terminals of different poles | 2000 volts AC |
| Between the terminal and the lamp terminal | 1500 volts AC |
| Housing material | Nickeled brass |

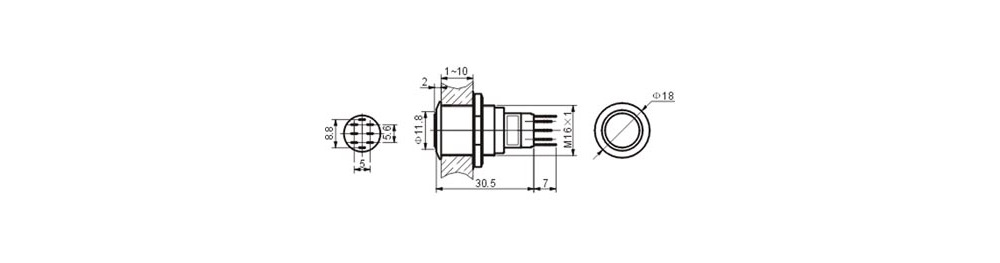

| Boring | Diameter 16 mm |
| Color | The text translates to "blue" in English. |
