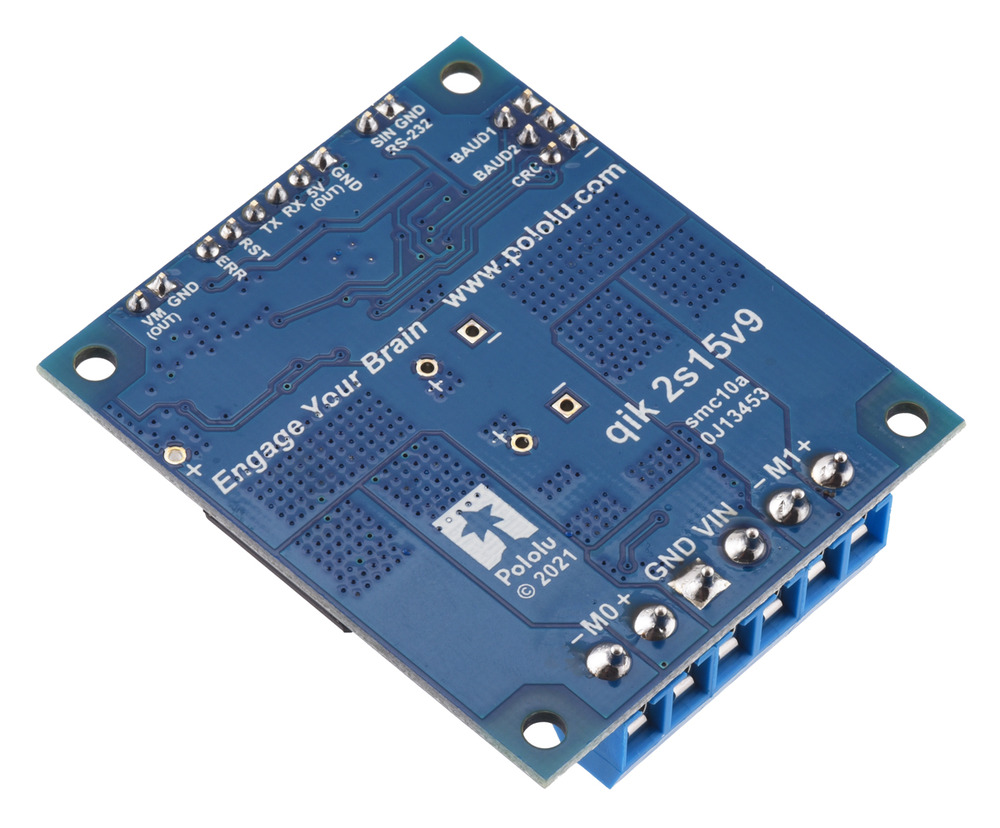

Pololu Qik 2s15v9 Dual Serial Motor Controller

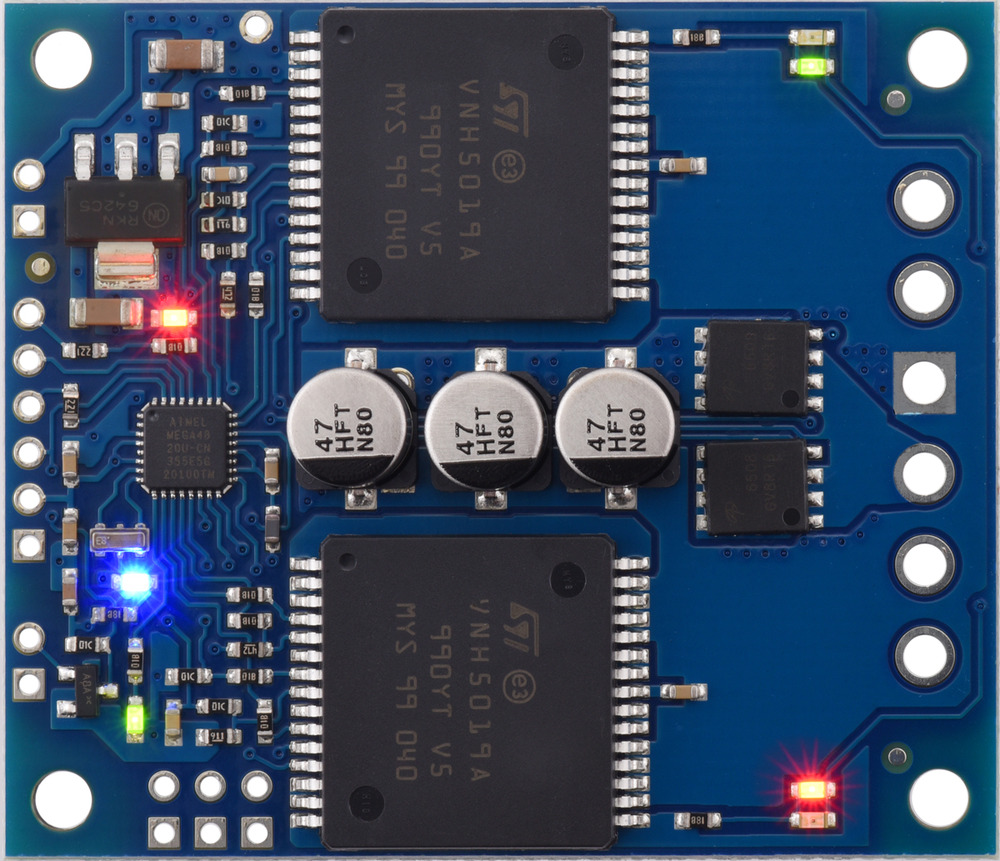

The Qik 2s15v9 offers a high-power, user-friendly solution for controlling two brushed DC motors with precision. Compact yet powerful, it supports serial communication with microcontrollers or computers, delivering up to 12 A continuously per motor channel without a heat sink and handling peaks up to 30 A. Key features include high-frequency PWM to reduce motor noise, a robust communication protocol, user-configurable error responses, visible LEDs for diagnostics, and reverse power protection.

This motor controller is ideal for robotics enthusiasts and engineers looking for reliable motor control. Whether you're building a robot or automating a system, the Qik 2s15v9 provides seamless integration with microcontrollers, allowing precise control over motor direction and speed. Its advanced features, such as configurable acceleration and current feedback, make it suitable for complex applications requiring nuanced motor management.

One of the standout benefits of this controller is its versatility in communication. It offers both logic-level, two-way serial control for easy microcontroller connections and RS-232-level, one-way serial control for PC integration. This flexibility ensures compatibility with a wide range of devices and setups, making it a valuable component for diverse projects.

The Qik 2s15v9's design emphasizes safety and ease of use. With features like error output and optional motor shutdown on error or serial timeout, it enhances operational safety. The demo mode allows for straightforward testing without programming, and CRC error detection helps prevent serial errors due to noise or software faults.

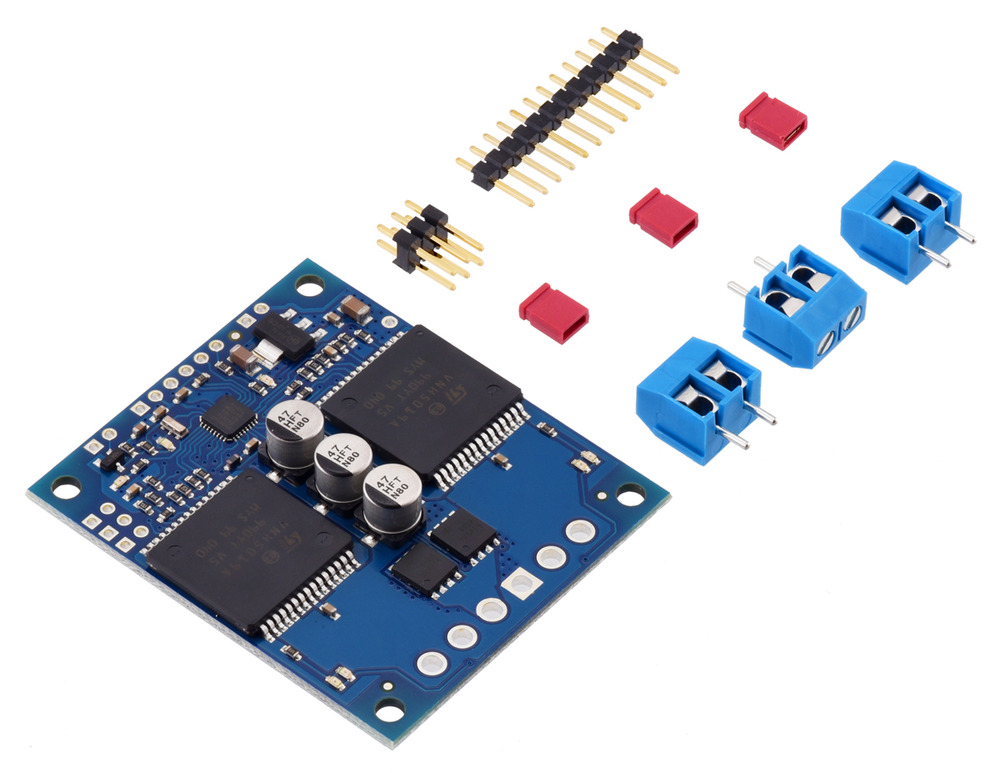

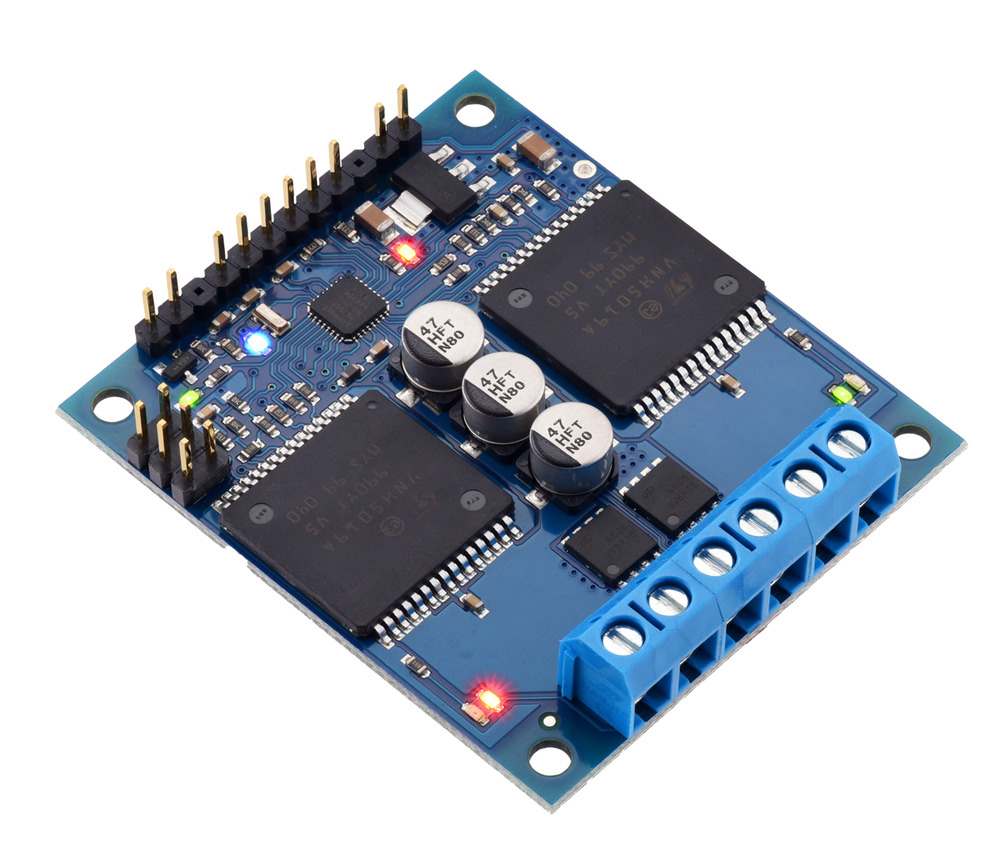

Included hardware provides options for both permanent and temporary connections. For compact installations, wires can be soldered directly to the pins, while the supplied terminal blocks offer a less permanent solution. The header strips can be customized to suit specific connection needs, and the use of female headers or breadboards further extends its adaptability.

For developers, the availability of an Arduino library simplifies integration with Arduino boards, handling the serial communication details and enabling easy control of brushed DC motors. This makes the Qik 2s15v9 an accessible option for both beginners and experienced developers.

Compared to its predecessor, the Qik 2s12v10, the 2s15v9 offers a wider operating voltage range and enhanced reverse voltage protection. Despite these improvements, it maintains the same interface, footprint, and pinout, serving as a drop-in replacement in most applications.
