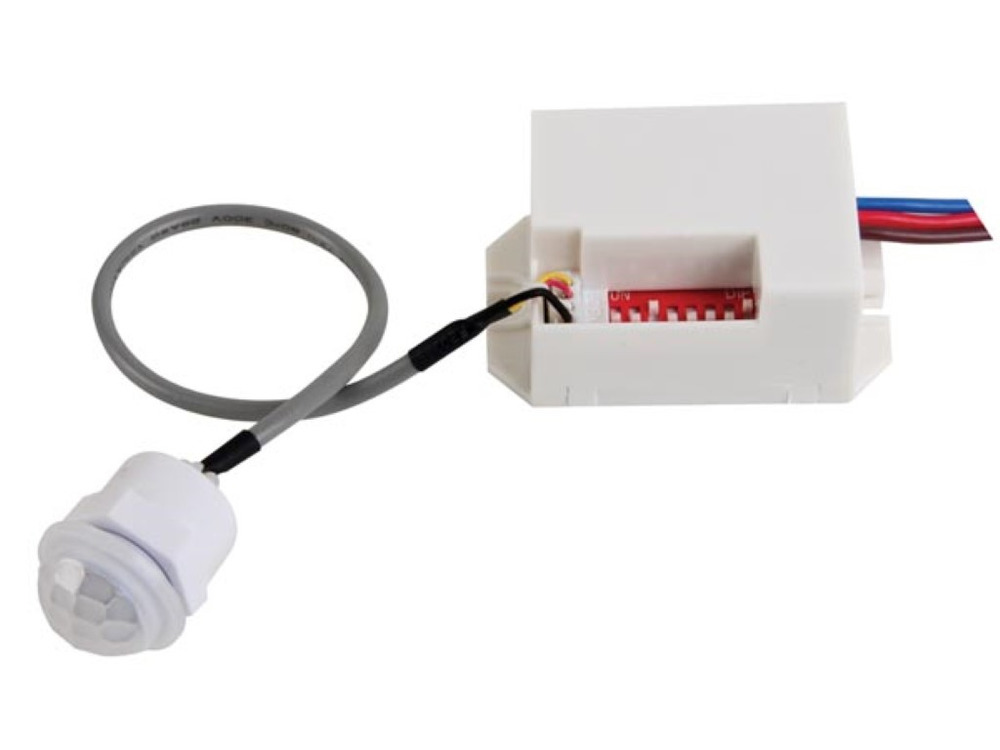

Perel MINI PIR-Bewegingsdetector Compact Motion Sensor
Description
The MINI PIR-Bewegingsdetector is a compact, built-in motion sensor designed for seamless integration into any 230 VAC powered setup, offering both convenience and efficiency.
This device features precise motion detection, allowing it to effectively toggle lights or security systems with minimal energy consumption. With its miniature size, it fits effortlessly into limited spaces without compromising functionality.
Utilize the MINI PIR-Bewegingsdetector to automate lighting in hallways, bathrooms, or any area requiring motion-triggered operation. Its advanced sensor technology ensures accurate response even in low-light conditions, similar to having an alert sentinel on duty 24/7.
Properties
Brand information
| Brand | Perel |
| Model | EMS106 |
Other
| Primary colors | White |
| Depth of the product | 35 mm |
| Height of the product | 42 mm |
| Width of the product | 22 mm |
| Weight Product | The text is already in English, but if you meant to convert "41 g" into a more informal context, it could be "41 grams." Let me know if you meant to translate a different text. |
| IP value | IP20 |
| Place of use | Only indoors |
| Languages of the manual | Dutch, English, French, German, Polish, Portuguese, Spanish |
| Entry frequency range | 50 Hz |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | "Inbouw" translates to "Built-in" in English. |
| Minimum input voltage VAC | 220 V |
| Maximum input voltage VAC | 240 volts |
| Type switch. | Relay |
| LED indicator | no |
| Maximum operating temperature | 40°C |
| Minimum operating temperature | -10 °C |
| Diameter mounting hole (mm) | 14 mm |
| Wire length | 18 cm |
| Maximum light sensitivity | 2000 lux |
| Minimal light sensitivity | 3 lux |
| Automatic day/night detection | Yes |
| Maximum workplace humidity | 93 % |
| Maximum nominal current fluorescence | 1.25 A |
| Maximum nominal current tungsten | 3.3 A |
| Time delay switch | 1 min, 30 sec, 3 min, 5 min, 5 sec, 8 min |
| Maximum nominal load fluorescence | It looks like you provided "200 W," which doesn't seem to require translation or context for "en" (English). Could you please provide more text or context for what you need translated? |
| Maximum nominal load tungsten | It seems like "800 W" might refer to "800 watts," particularly in the context of power or electrical devices. However, if you're looking for a translation of a longer text, please provide more details. |
| Detection angle | 100 ° |
| Detection | 8 a.m. |
| PIR sensor settings | Adjustable light sensitivity (LUX), Adjustable switch-on time (TIME) |
| Height of the PIR sensor | 10 mm |
| Diameter of the PIR sensor | 22 mm |
Functionality
| sensor type | PIR |
Datasheet
| Material | ABS |
€ 16,25€ 13,45 Excl. VAT (NL)
Delivered in 3 to 5 days
Perel MINI PIR-Bewegingsdetector Compact Motion Sensor Delivered in 3 to 5 days € 16,25 Customer questions
