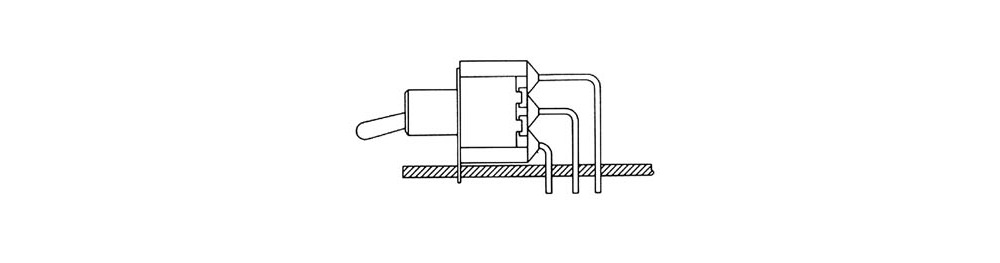

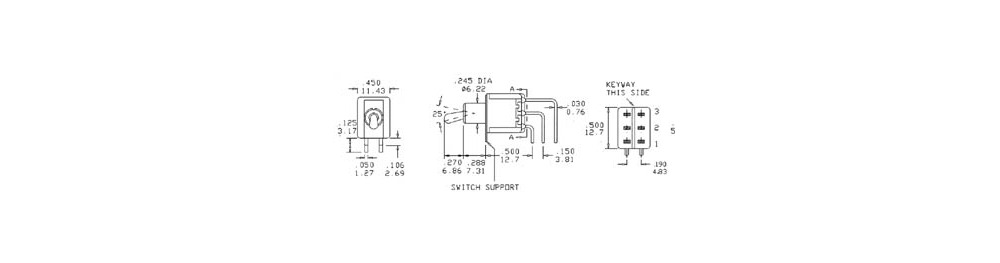

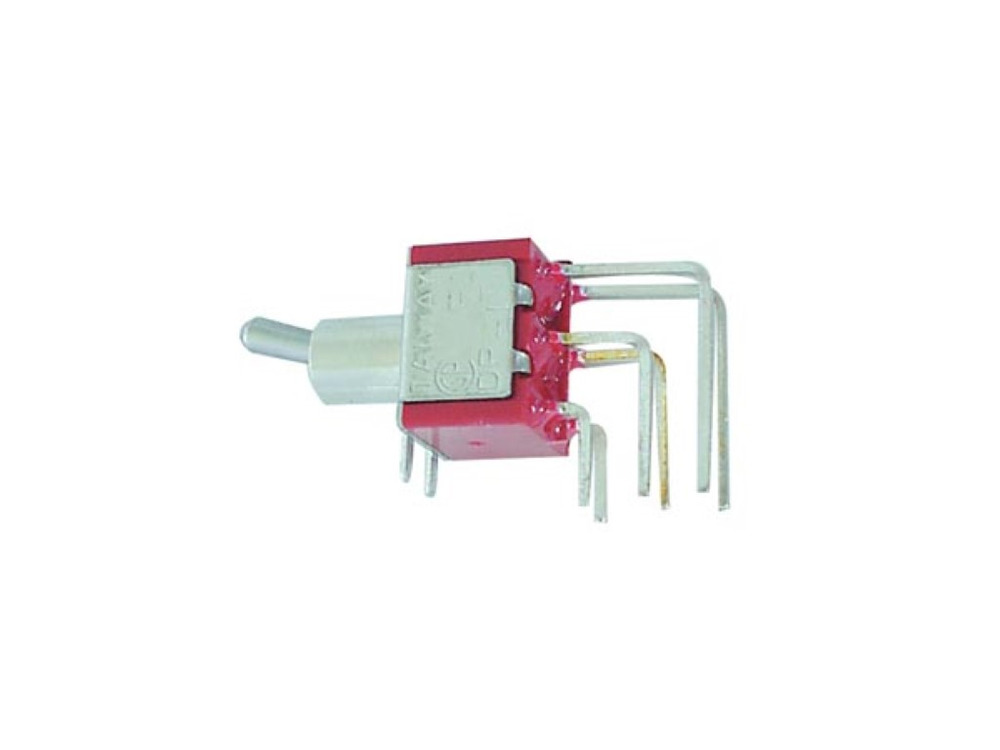

The HAAKSE VERTICALE TUIMELSCHAKELAAR DPDT ON-ON delivers precision and reliability across a broad array of applications. With a dual pole dual throw configuration, this toggle switch ensures seamless switching between two circuits. Its vertical alignment and ergonomic design make it an efficient solution for compact spaces.
Built from high-quality materials, it guarantees durability and optimal electrical conductivity. Rated for consistent performance under heavy usage, the switch is ideal for controlling multiple devices or rerouting current pathways within complex systems. The robust construction and intuitive operation of this switch serve as an effective bridge between multifunctional demands and straightforward execution.
Perfectly suited to electronics projects, machinery systems, or any environment where flexible switching is paramount, its adaptability is akin to a well-tuned symphony, orchestrating diverse elements into a cohesive and reliable whole.
| Brand | Daily Well |
| Model | 8021L |
| Dielectric strength | 1000Vrms at sea level |
| Insulation resistance | Minimum 1000 megaohms. |
| Note | - |
| Contact | 5A with a resistive load of 120Vac or 28Vdc |
| Working temperature | -30°C to +85°C |
| 2-3, 5-6 | ON |
| OPEN | The Dutch word "GEEN" translates to "NO" in informal English. |
| 2-1, 5-4 | ON |
| Electric lifespan | 50,000 make-and-break cycles at maximum load |
| Contact resistance | Initially max. 10mohm at 2-4Vdc / 10mA for silver-plated and gold-plated contacts |
| Steel | Chromed brass |
| The word "Schroefdraad" translates to "screw thread" in English. | Nickeled brass |
| Frame | Stainless steel |
| Contacts (materials) | cashed in |
| Connections | Silver-plated brass |
| The term "Middencontact" can be informally translated to "center contact" or "middle contact." However, if there's a specific context or additional meaning, please let me know! | Silver-plated brass |
| It seems like you want a translation, but the text "Huls" is not clear in its current form or language. Could you provide more context or check if there's a typo? That way, I can help you more effectively! | Melamine of diallyl phthalate (DAP) |
