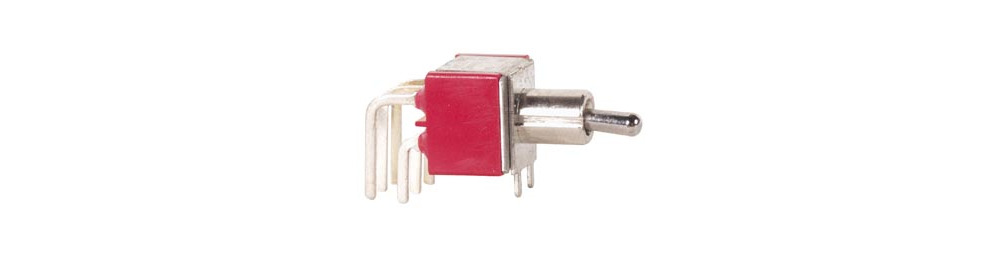

The Haakse Horizontale Tuimelschakelaar DPDT ON-OFF-(ON) offers reliable dual circuit control in one compact unit. This double pole double throw switch provides seamless transition between different electrical states, ideal for various applications.
With its ON-OFF-(ON) functionality, switching between circuits becomes intuitive and efficient. Its robust mechanical design ensures durability and long-lasting performance, even in demanding conditions. The horizontal toggle design offers ease of use and quick access during critical operations.
Whether controlling lighting systems, motor operations, or complex machinery, this versatile switch elevates the standard of engineered control interfaces. The Haakse Tuimelschakelaar integrates seamlessly into any control panel, providing both functionality and aesthetic appeal.
| Brand | Daily Well |
| Model | 8022B |
| Dielectric strength | 1000Vrms at sea level |
| Insulation resistance | Minimum 1000 megaohms. |
| Note | - |
| Contact | 5A with a resistive load of 120Vac or 28Vdc |
| Working temperature | -30°C to +85°C |
| 2-3, 5-6 | ON |
| OPEN | OFF |
| 2-1, 5-4 | (ON) |
| Electric lifespan | 50,000 make-and-break cycles at maximum load |
| Contact resistance | Initially max. 10mohm at 2-4Vdc / 10mA for silver-plated and gold-plated contacts |
| Steel | Chromed brass |
| The word "Schroefdraad" translates to "screw thread" in English. | Nickeled brass |
| Frame | Stainless steel |
| Contacts (materials) | cashed in |
| Connections | Silver-plated brass |
| The term "Middencontact" can be informally translated to "center contact" or "middle contact." However, if there's a specific context or additional meaning, please let me know! | Silver-plated brass |
| It seems like you want a translation, but the text "Huls" is not clear in its current form or language. Could you provide more context or check if there's a typo? That way, I can help you more effectively! | Melamine of diallyl phthalate (DAP) |
