Gainta Compact Dark Grey Water-Resistant ABS Enclosure
New
Description

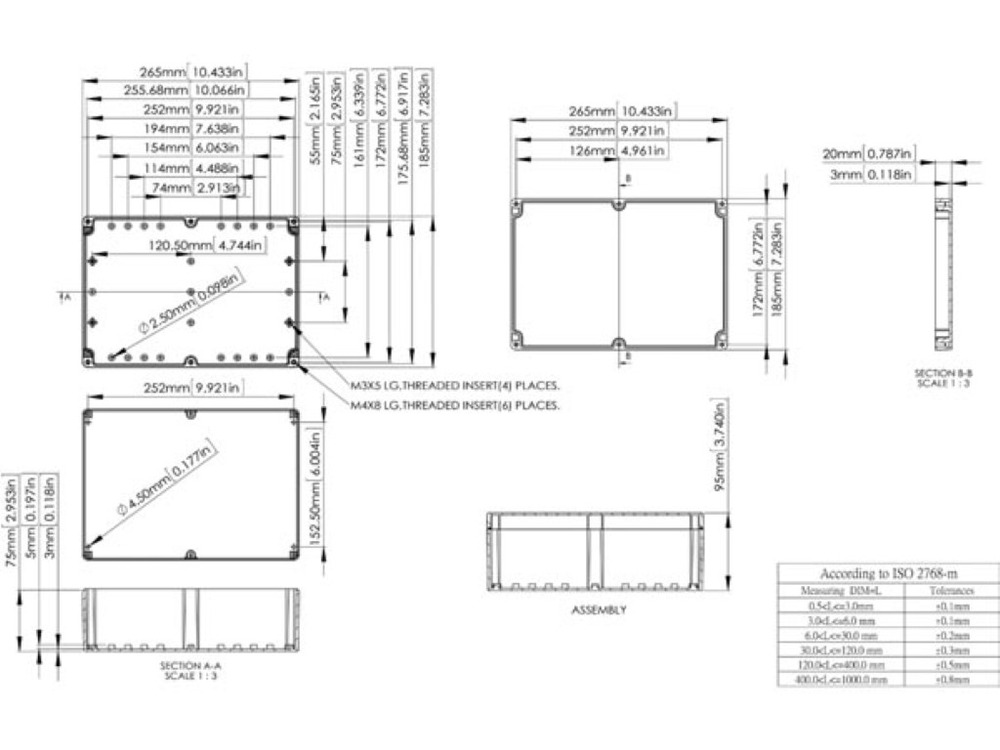

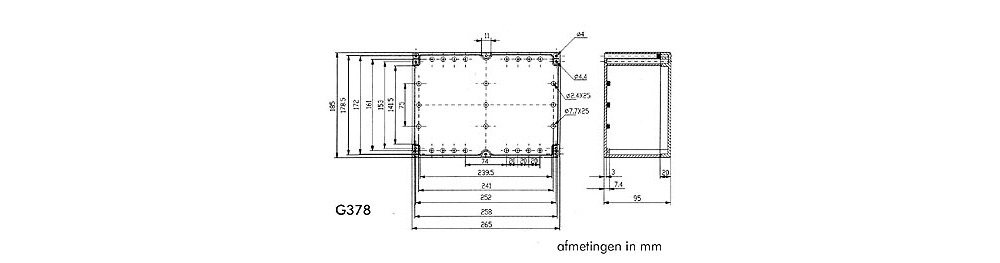

This compact, dark grey enclosure measures 265 x 185 x 95mm and features a water-resistant ABS casing. Expertly crafted from impact-resistant ABS material, it ensures durability within a working temperature range of -20°C to +100°C.
The lid and base plate utilize an innovative tongue-and-groove system, integrated with a neoprene gasket for enhanced sealing. With mounting screw openings located outside the sealed area, it effectively prevents dust and moisture infiltration, ensuring secure wall mounting.
Inside, vertical PCB mounting slots are conveniently placed, while brass inserts in the base plate offer horizontal PCB mounting options. Engineered to meet both IP65 or IEC529 and NEMA 4 standards, this box is the epitome of splash-proof and dust-tight protection.
Properties
Brand information
| Brand | Gainta |
| Model | G378 |
Other
| Primary colors | Gray |
| Depth of the product | 95 mm |
| Height of the product | 185 mm |
| Width of the product | It looks like you want to convert a measurement to English. If you're referring to the length "265 mm," it translates to about "10.43 inches" in informal language. Let me know if you meant something else! |
| Weight Product | The original text "674 g" refers to weight in grams, and it already seems to be in English. If you meant something else or need further assistance, please provide more context! |
| IP value | The text "IP65" doesn't need translation as it is a standardized code. In informal English, it generally indicates that a device is dust-tight and protected against water jets. |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | Horizontal |
| Lid | Yes |
| Primary detailed colors | Dark gray |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -20°C |
| Sealed. | Yes |
| Montagegaten translates to "Assembly Street" in English. | Yes |
Datasheet
| Material | ABS |
€ 28,90€ 23,90 Excl. VAT (NL)
