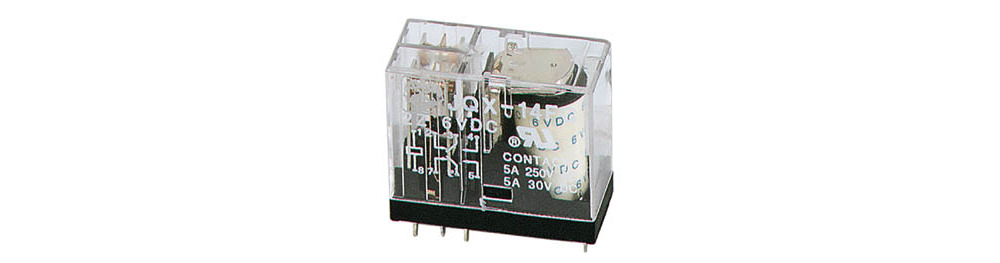

Shen Le Relay VERTICAAL RELAIS with 5A Current Capacity and Dual Changeover Contacts
New
Description
Our VERTICAAL RELAIS offers superior switching capabilities with a 5A current capacity and supports 30VDC to 220VAC, ensuring versatility in your projects. Designed to handle critical circuit connections, this relay includes dual changeover contacts and operates at a reliable 24Vdc.
Ideal for automation and control systems, it minimizes electronic interference while maintaining stability for high-demand tasks. Easy integration with many existing circuits makes it a perfect choice for both straightforward and complex configurations.
- Supports a broad spectrum of voltages.
- Features dual changeover contacts for flexible usage.
- Built to handle currents up to 5A effectively.
- Designed for seamless integration with 24Vdc systems.
Properties
Brand information
| Brand | Shen Le Relay |
| Model | VR5V242CN |
Other
| Extra colors | Black |
| Depth of the product | 1 cm |
| Height of the product | 2 cm |
| Width of the product | 3 cm |
| Weight Product | 18.6 grams |
| It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? | Circuit board |
| Maximum operating temperature | 70°C |
| Minimum operating temperature | -40 °C |
| Type contact | Inverter |
| Maximum switching current VDC | 5 A |
| "Resistance to rinsing" | 1150 Ω |
| Type of relay | Vertical relay |
| Number of inverters | 2 |
| Maximum switching voltage VAC | 220 V |
| Dielectric strength voltage value VAC | The phrase "1000 V" is likely referring to "1000 volts." If you specifically want the phrase "1000 V" translated informally to English and it's not part of a larger text:"1000 volts" |
| Primary color | The Dutch word "transparant" translates to "transparent" in English. |
| GPSR Responsible - Contact Name | Velleman Group |
| GPSR Responsible - Address | Legen Heirweg 33, 9890, GAVERE, Belgium |
| GPSR Responsible - Website | http://www.vellemangroup.eu |
| GPSR Manager - Email | customercare@velleman.eu |
| GPSR Officer - Phone Number | 09/384.36.11 |
| Rinse voltage VDC | The text "24 V" is just a numeric representation and does not contain any specific language to translate. In the context of electrical systems, "24 V" typically means "24 Volts." If there's additional context or sentences surrounding this that you need translated, please provide more details! |
| Dielectric strength frequency rating | 50 Hz |
| Nominal business capacity | 0.56 Watts |
Datasheet
| Material | ABS |
