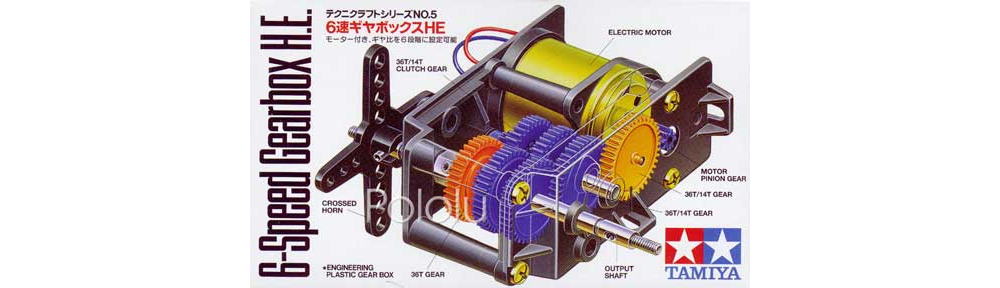

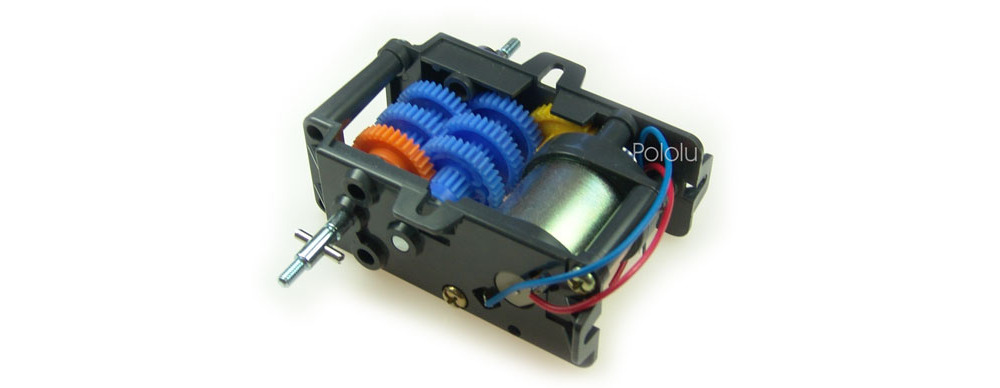

Pololu Tamiya 72005 6-Speed Gearbox Kit

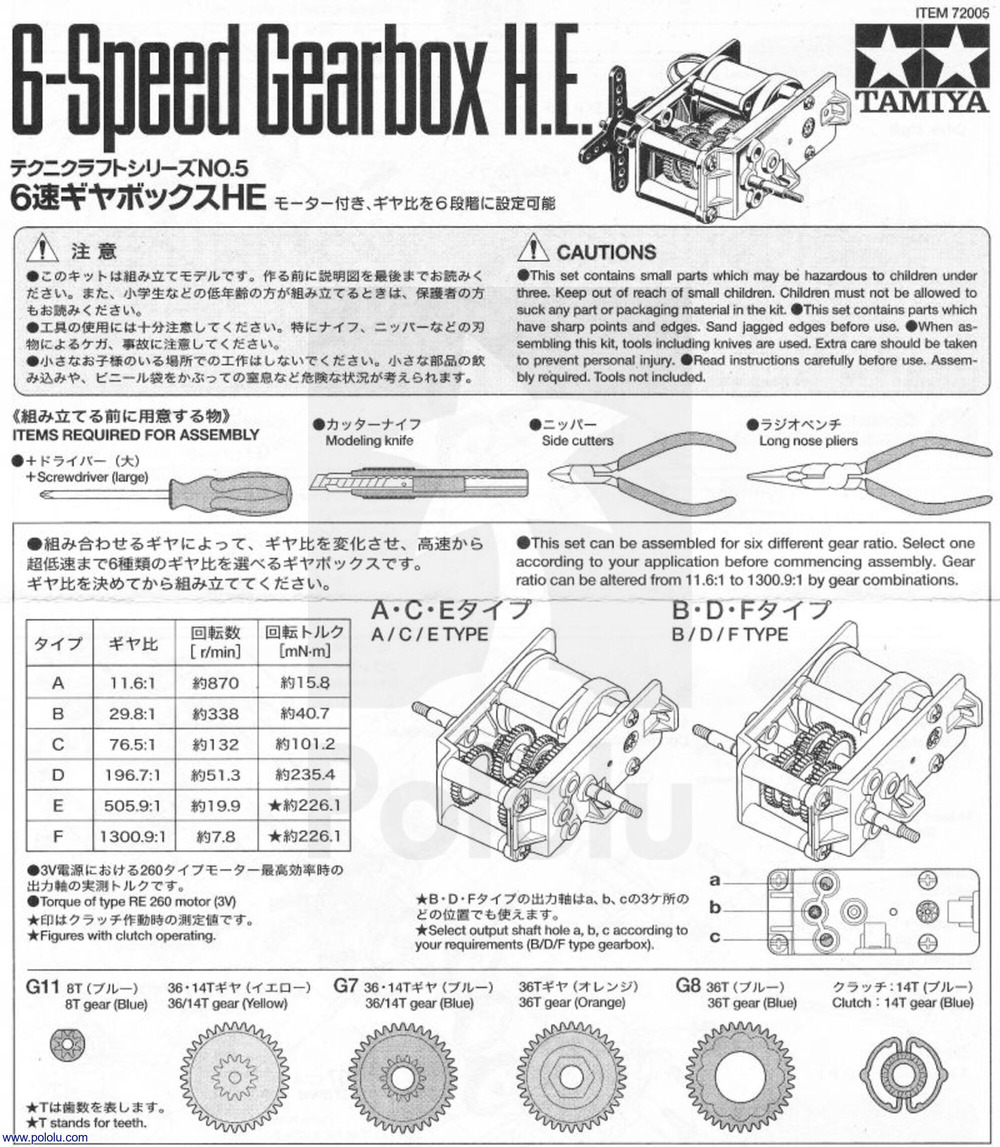

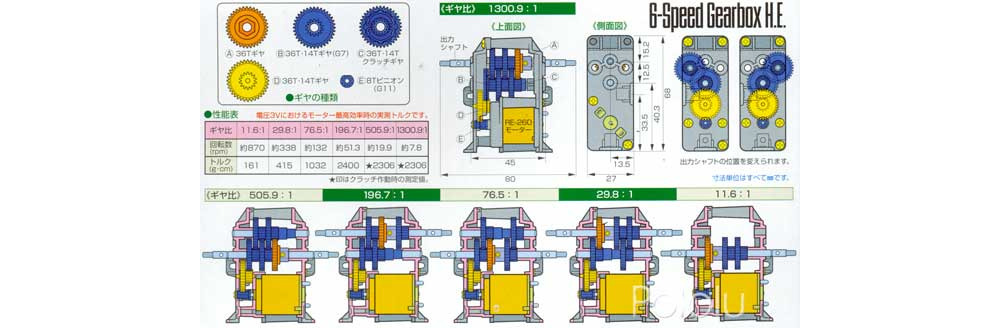

The Tamiya 72005 6-speed gearbox offers a high-efficiency solution with multiple gear ratios: 11.6:1, 29.8:1, 76.5:1, 196.7:1, 505.9:1, and 1300.9:1. Its adaptable design ensures compatibility with various applications, and a clutch gear safeguards the mechanism in high-gear-ratio settings, preventing damage if the output shaft encounters resistance.

This gearbox is ideal for robotics and engineering projects, providing flexibility in speed and torque customization. With its low-voltage motors operating between 1.5 to 4.5 volts and capable of drawing a few amps, it pairs well with the DRV8833 motor driver carrier. To prevent motor overheating, it's advisable to use stall-detection sensors or monitor the device to avoid prolonged stalling.

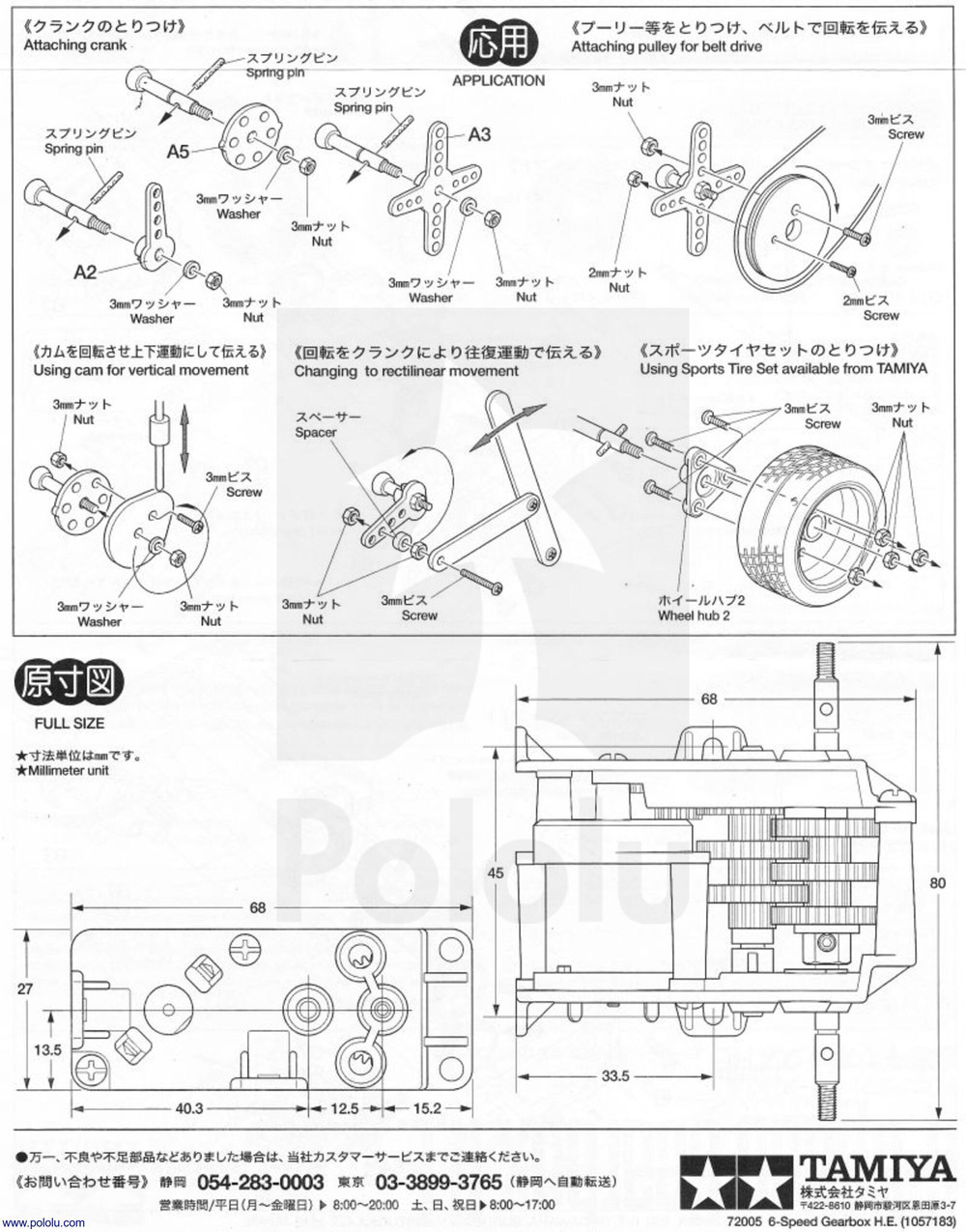

The gearbox features a 4 mm diameter round output shaft, compatible with wheels designed for Tamiya 4 mm round shafts. Additionally, a 3 mm universal mounting hub can fit the smaller threaded end of the shaft, though caution is advised as the hub's set screw might damage the thread.

For detailed motor specifications, refer to the Mabuchi motor RE-260 (#2295) data sheet. For a comprehensive comparison of Tamiya gearbox kits, consult the Tamiya Gearbox Gear Ratio Comparison documentation.

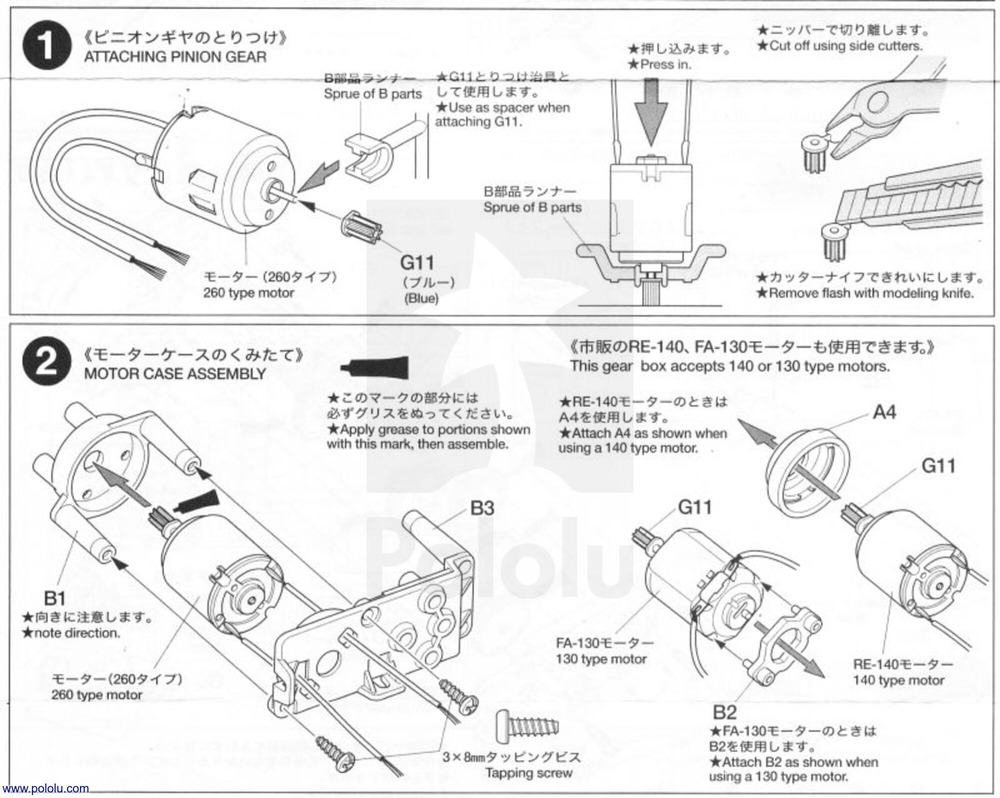

Note: This is a kit requiring assembly. To integrate it into robotics projects, connect the motors to your own robot controller.
