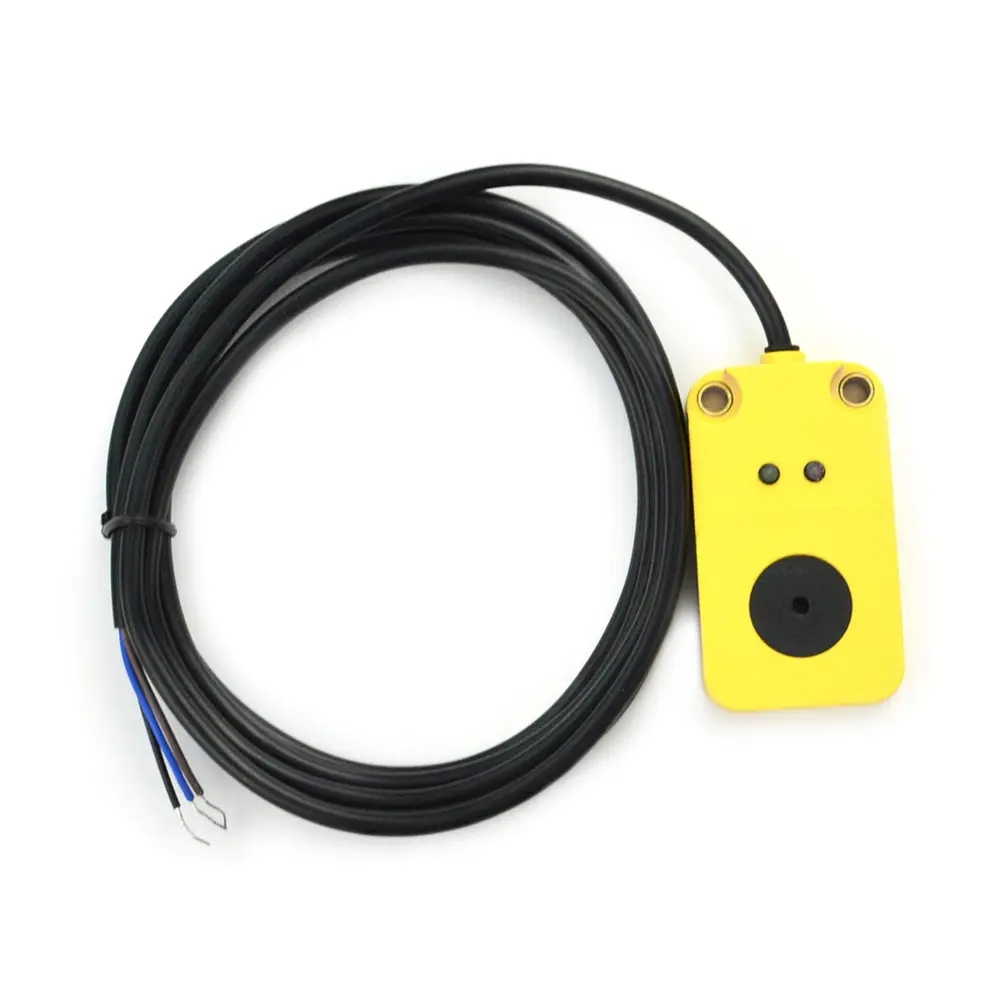

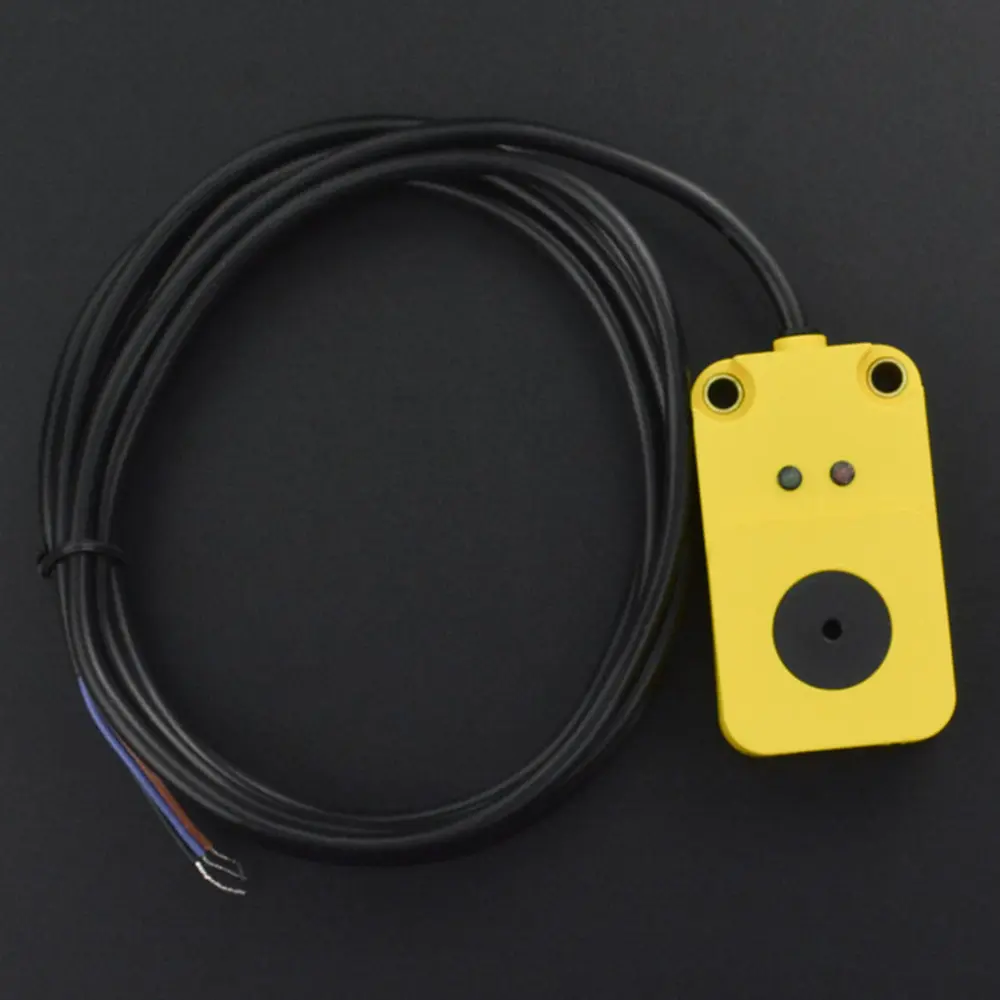

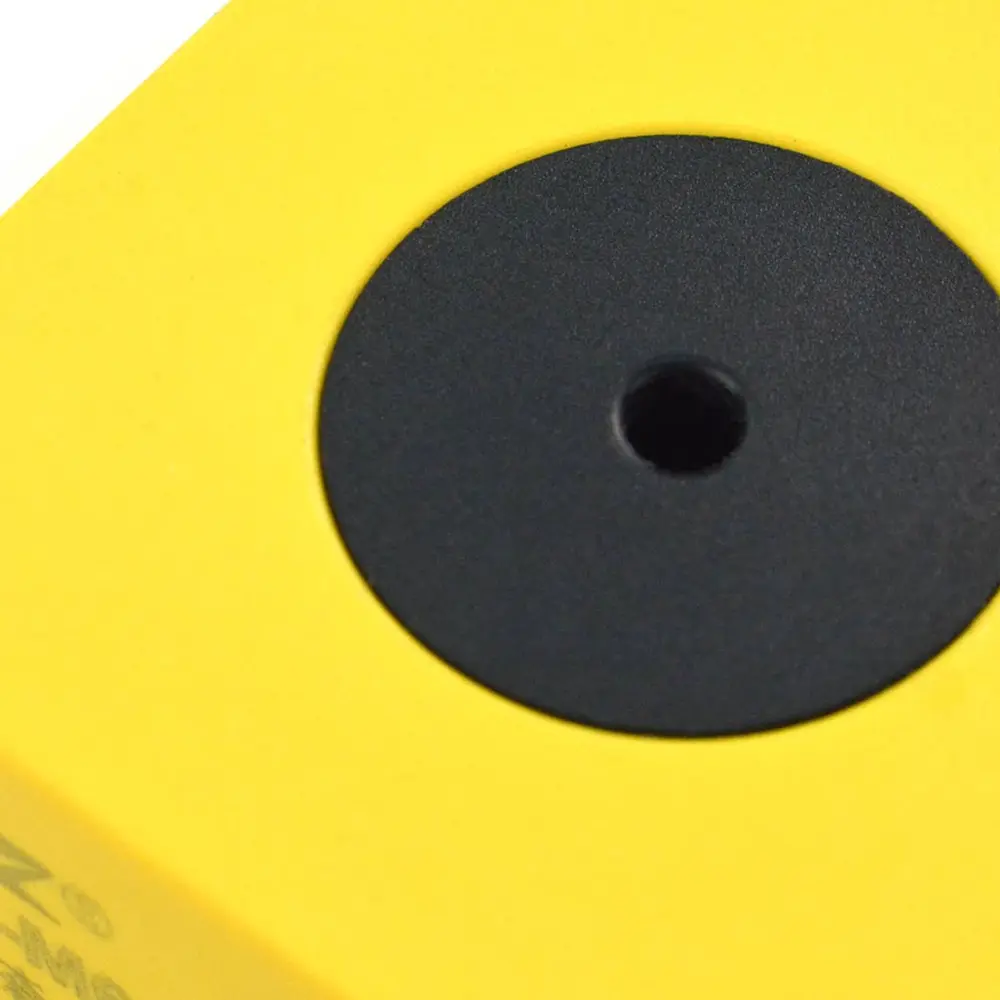

Ring Inductive Proximity Sensor (3mm Hole Diameter)

The inductive ring proximity sensors excel in detecting metal objects that enter or pass through their ring, operating smoothly with a 6-36V power supply and offering an NPN output. Swift and precise, their response time is less than 1 millisecond, ensuring high accuracy even with fast-moving metal objects, enhancing their utility in dynamic environments.

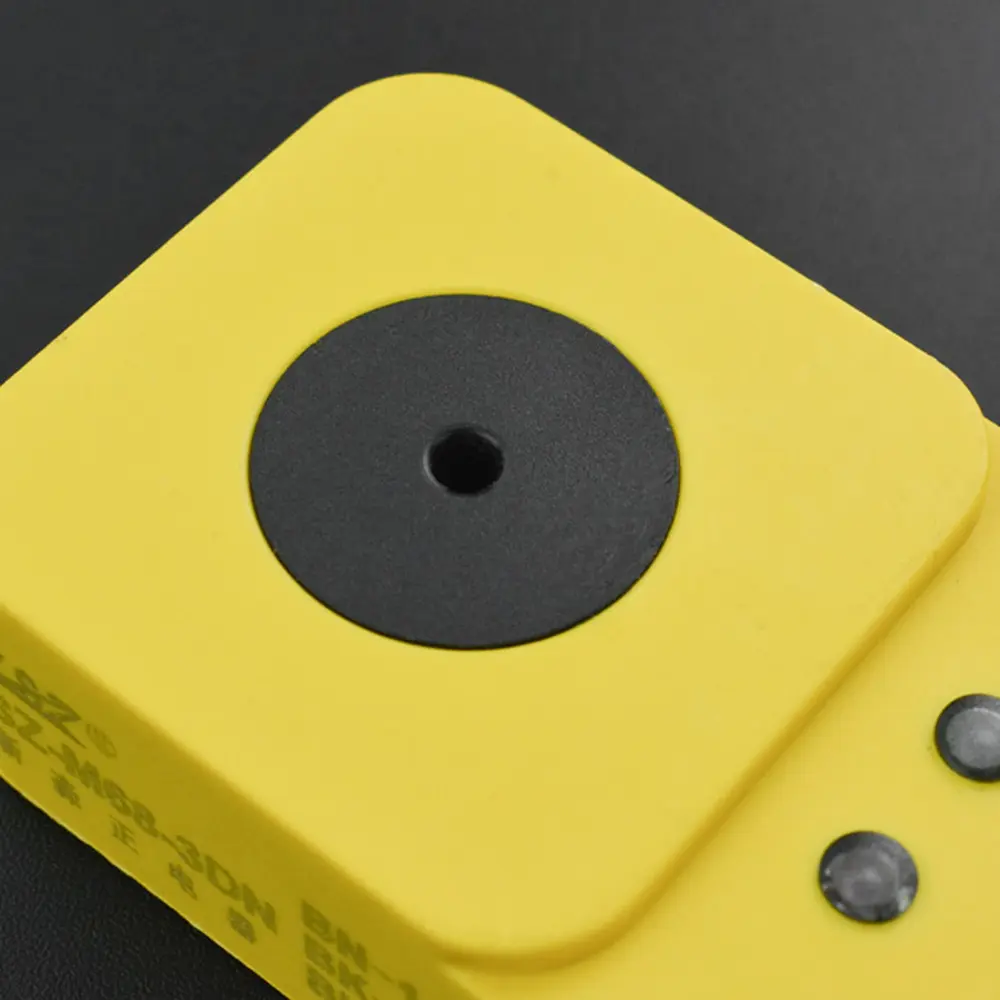

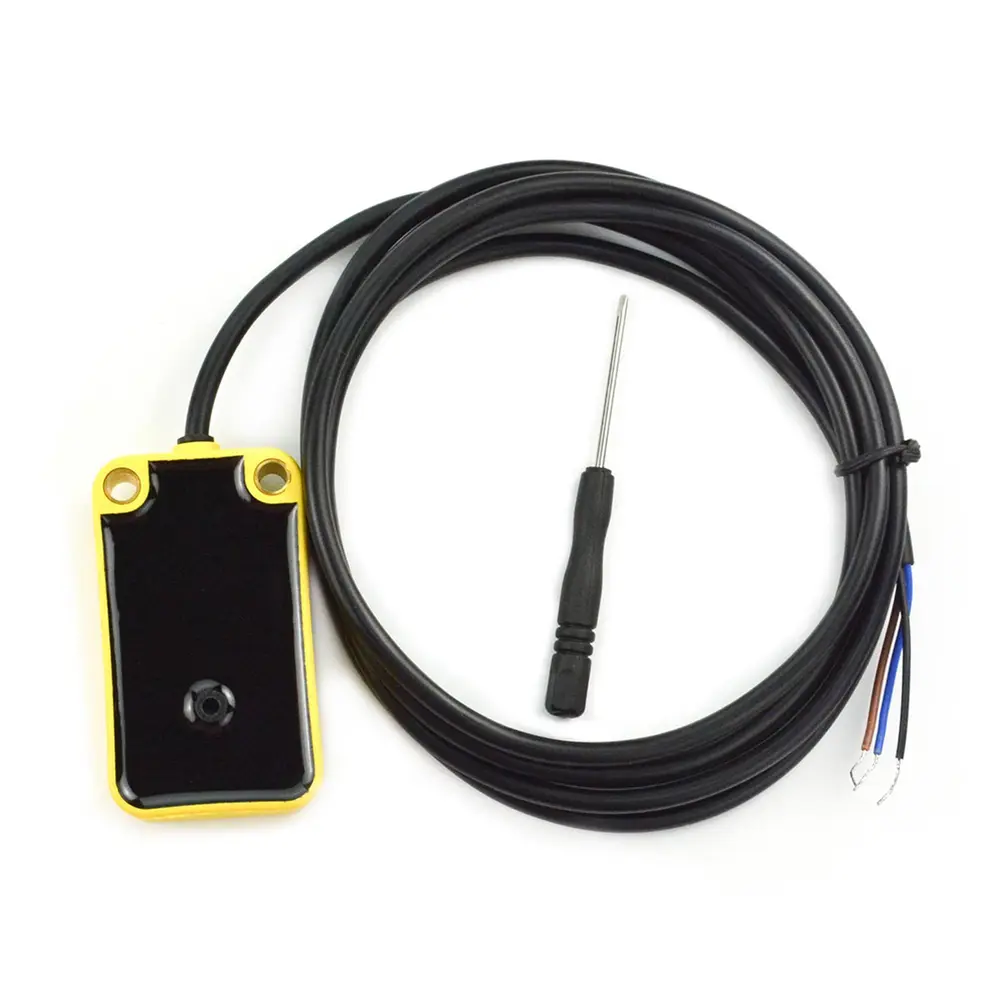

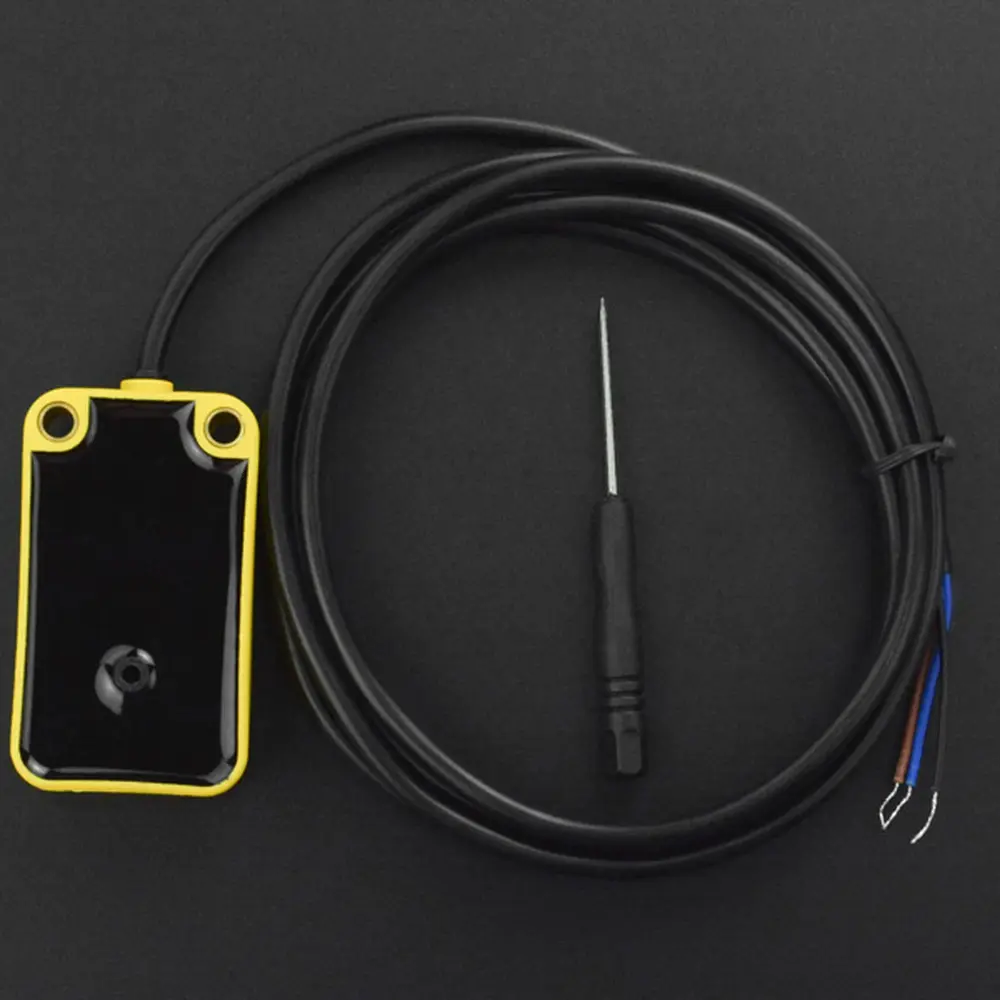

Equipped with an onboard LED indicator, these sensors light up upon metal detection, providing clear visual feedback of their operation. Adjusting the sensitivity is straightforward, with a simple clockwise rotation increasing detection capabilities, allowing for tailored usage according to specific requirements.

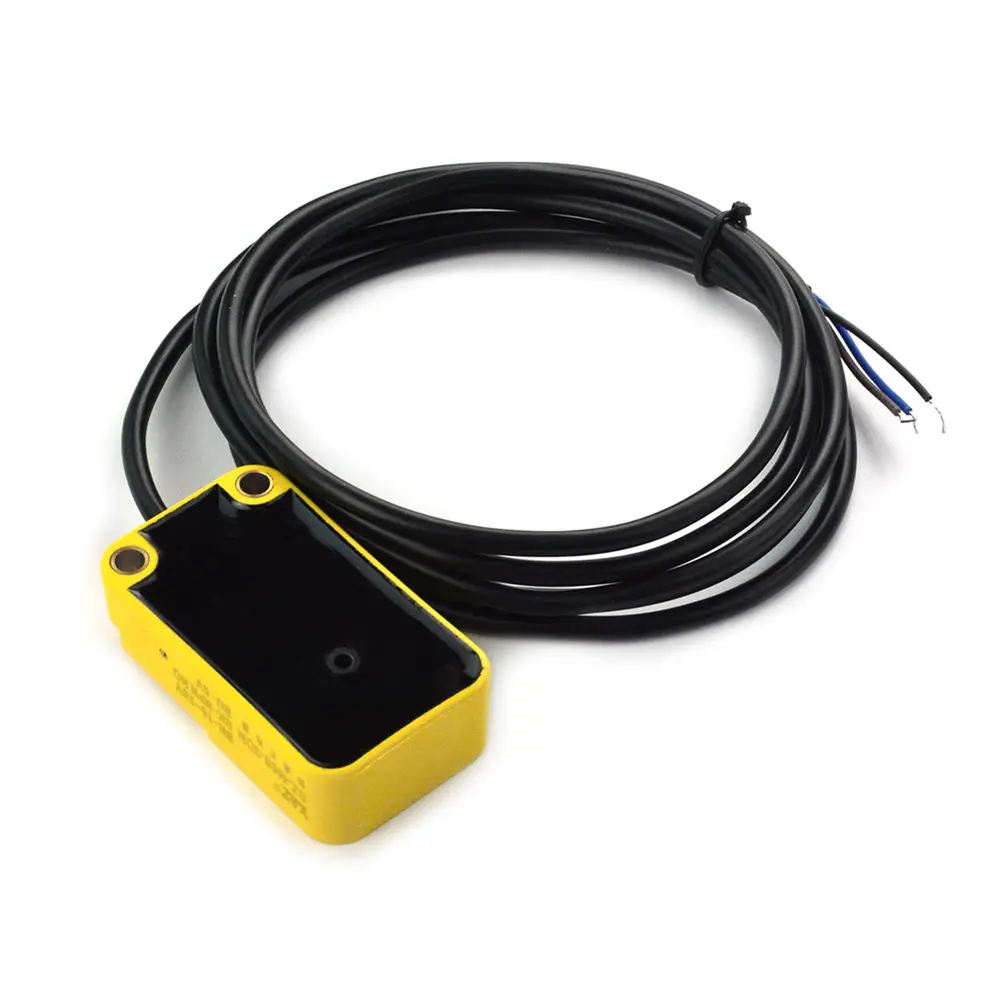

The sensors are encased in a robust housing made of brass nickel-plated flame-retardant material, ensuring durability and resistance to rust. They are classified with an IP66 protection degree, making them resilient against harsh conditions. Able to function in temperatures between -25℃ and 65℃, these sensors maintain performance capabilities regardless of weather, suitable for both indoor and outdoor use.

These sensors are especially useful in applications involving the detection of small metal components such as screws, washers, and nuts. They can effectively monitor processes like wire breakages and jams, offering reliable performance and enhancing operational safety and efficiency across diverse settings.
