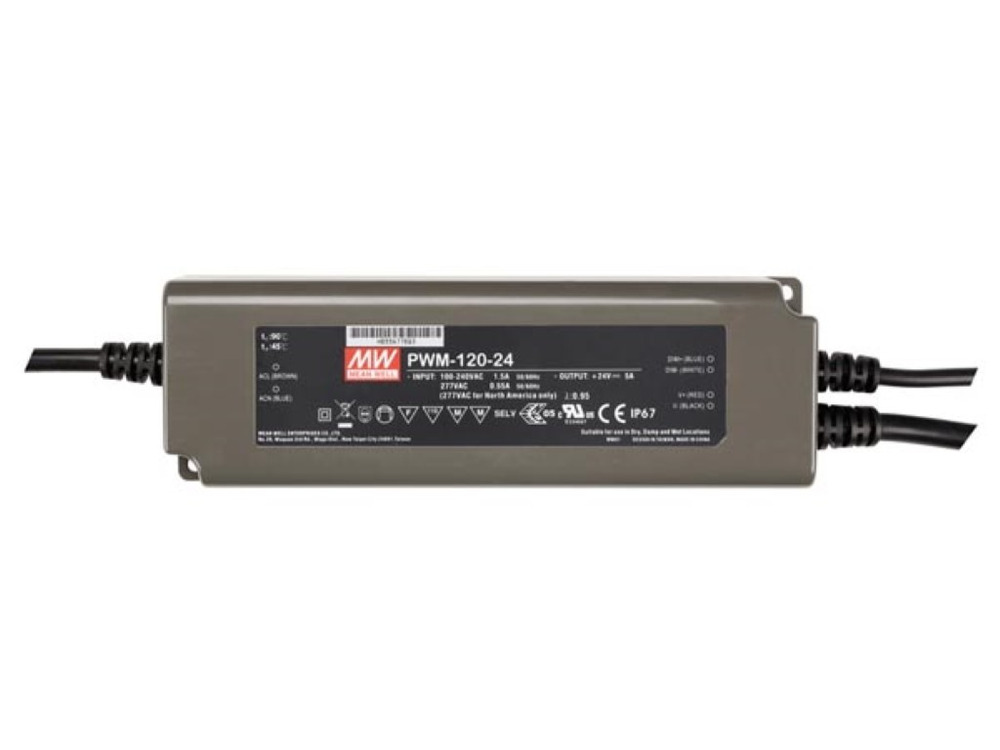

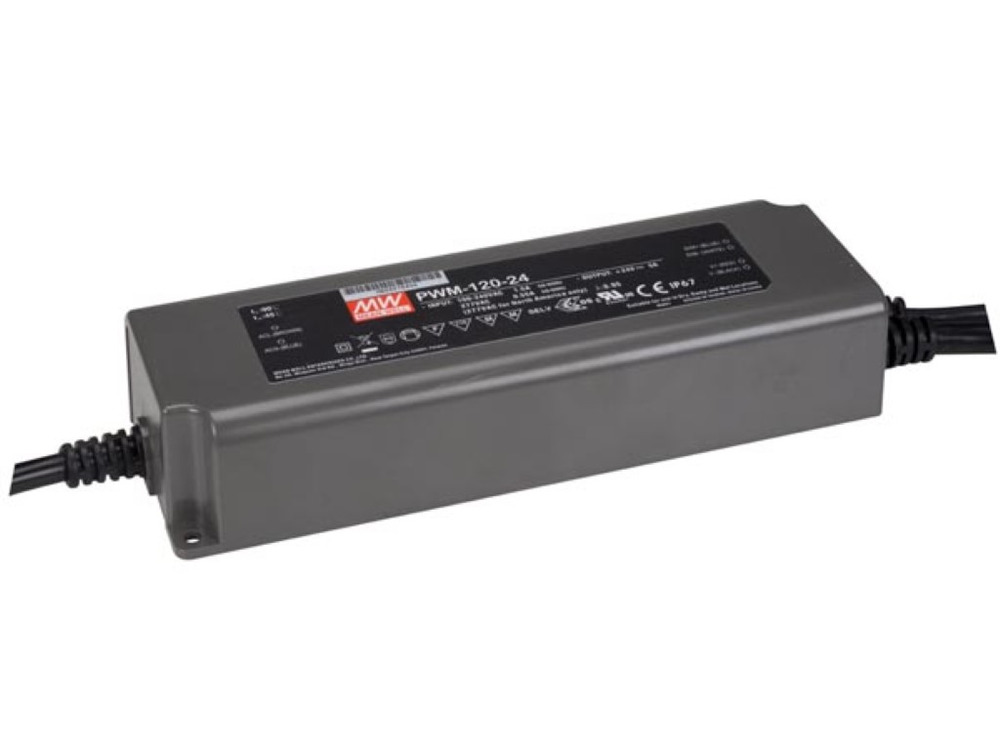

Mean well PWM-120 Series 120W Waterproof LED Power Supplies with Constant Voltage Output

Item number PWM-120-24 Brand Mean well Model PWM-120-24 Share Write a review
-30 %
Sale
Mean well PWM-120 Series 120W Waterproof LED Power Supplies with Constant Voltage Output



Description

The PWM-120 series are 120 W waterproof LED power supplies with constant voltage output, designed specifically for optimal performance with LED strips. With its unique PWM-style output, it ensures consistent color temperature and brightness homogeneity across various lighting installations.

Featuring a universal input range of 90 to 305 VAC and a built-in PFC function, it offers dual dimming options (0-10 VDC, PWM signal) or resistance, simplifying brightness control while promoting energy conservation.

The high efficiency, up to 90.5%, coupled with low no-load power consumption below 0.5W, makes PWM-120 an ideal choice for energy-efficient LED lighting solutions. A class II design and double insulation weather-resistant cable ensure easy installation across different lighting systems.

The enclosure is crafted from 94 V-0 flame retardant plastic, with a fully potted silicone interior for enhanced heat dissipation and vibration resistance, meeting an IP67 protection level. It actively functions in temperatures from -40 to +70 °C, conforming to global lighting safety standards, suitable for harsh environments.

Properties

Brand information
Brand Mean well
ModelPWM-120-24
Other
Primary colors Gray
Depth of the product "191 mm" is already in English and means "191 millimeters." If you meant something else, could you provide more context?
Height of the product 37.5 mm
Width of the product 63 mm
Weight Product 970 grams
IP value IP67
Place of use Inside and outside
Languages of the manual English
It looks like you've provided the phrase "Type montage" for translation into English, but it already appears to be in English. Could you please provide more context or text for translation? Screw
Minimum input voltage VAC 90 volts
Maximum input voltage VAC 305 V
Electric protection Here it is in English: Overloading, Overheating, Overvoltage, Short circuit
Rated output current 5 A
Number of principles 1
Type of case Enclosed
Input voltage VDC 1 The text "127 V" is already in English, indicating a voltage level of 127 volts. If you're referring to translating something else, please provide the full text.
Input voltage VDC 2 431 V
Output power "120 watts"
The text is already in English, but if you're looking for an informal translation, it could be: "Tech type". DC indicator
Input current at 115 VAC 1.3 A
Input current at 230 VAC 0.65 A
Maximum input frequency 63 Hz
Minimal input frequency "47 Hz"
Series of power supplies PWM usually stands for "Pulse Width Modulation," but if you're looking for a translation into English, could you provide the text you want translated?
Output voltage VDC The text "24 V" is just a numeric representation and does not contain any specific language to translate. In the context of electrical systems, "24 V" typically means "24 Volts." If there's additional context or sentences surrounding this that you need translated, please provide more details!
Incoming current at 227 VAC 0.55 A
Datasheet
Material ABS
