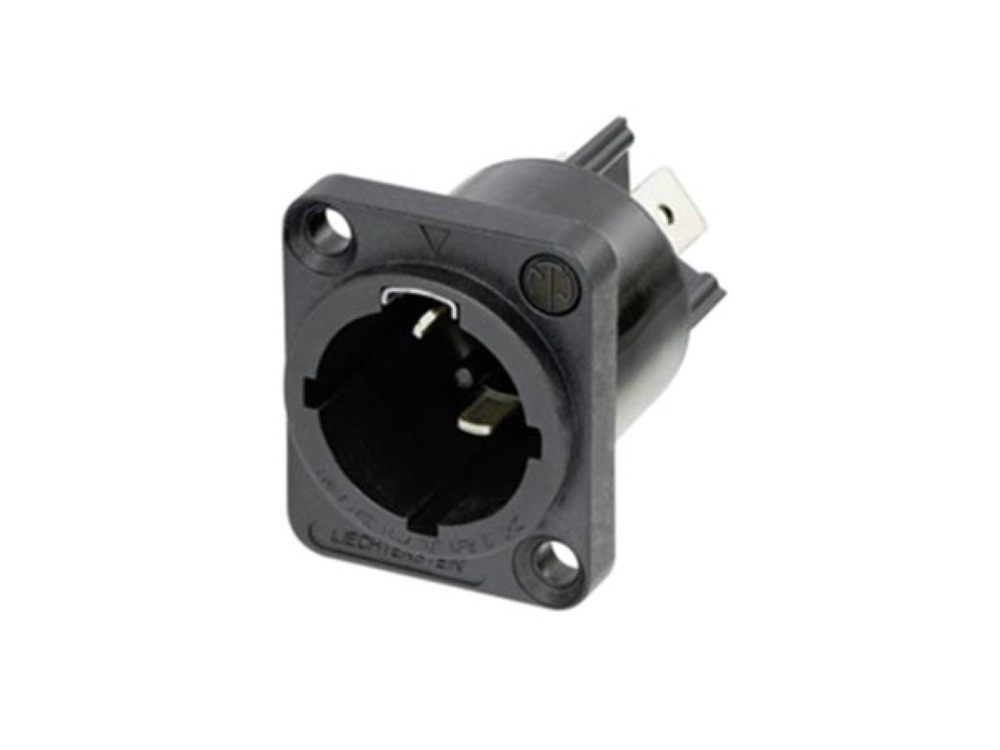

Neutrik powerCON TRUE1 TOP Male Chassis Power Connector
Description
Neutrik presents the powerCON TRUE1 TOP, a male chassis power connector engineered for robust lockable performance in extremely demanding conditions. This innovative solution fulfills the high demands of the constantly evolving entertainment industry.
Perfect for applications like PA systems, displays, LED screens, and lighting systems, this connector stands out with its ability to operate under harsh environments. The product line includes powerCON TRUE1, etherCON, and XLR connectors, all designed for True Outdoor Protection (TOP).
Featuring UV resistance compliant with UL50e standards, the powerCON TRUE1 TOP not only protects against dust and water but also guarantees enduring reliability. Its current carrying capacity reaches up to 16 A, effectively replacing conventional appliance couplers where a secure locked connection is essential.
With its circuit-breaking capability (CBC), this connector allows safe connection and disconnection under load and power. Experience the cutting edge of connectivity with Neutrik's solution tailored for outdoor applications demanding unrivaled durability and safety.
Properties
| Brand | Neutrik |
| Model | NAC3MPXTOP |
| Dielectric strength | 4 kV DC / 2.8 kV AC |
| Housing | Polyamide (PA 6.6) |
| Temperature range | -30°C to +80°C |
| Insulation resistance | > 0.1 GO (after IEC 68-2-30 damp heat test) |
| Contact | Spring copper (CuSn0.2) |
| Contact resistance | 3 ppl |
| "Nom. spanning" translates to "Don't worry" in English. | 250 V AC |
| Flammability | The text "UL 94 V-0" doesn't contain anything to translate since it's a standard name, which is the same in English. It's a flammability rating used for plastics, meaning the material stops burning within 10 seconds after being exposed to a flame. Let me know if there's anything else you need help with! |
| Lockdown | Stainless steel |
| Number of electronic contacts | 2 + PE |
| "Nominal current per contact" | 16 A rms (USA: 20 A) |
| "Wire size" | 2.5 mm² |
| Wire thickness | 12 AWG |
| "Cover contacts" | 2 μm silver |
| Protection class | UL50E type 4 enclosure (either mated or combined with SCNAC-MPX) |
| Lifespan | h |
