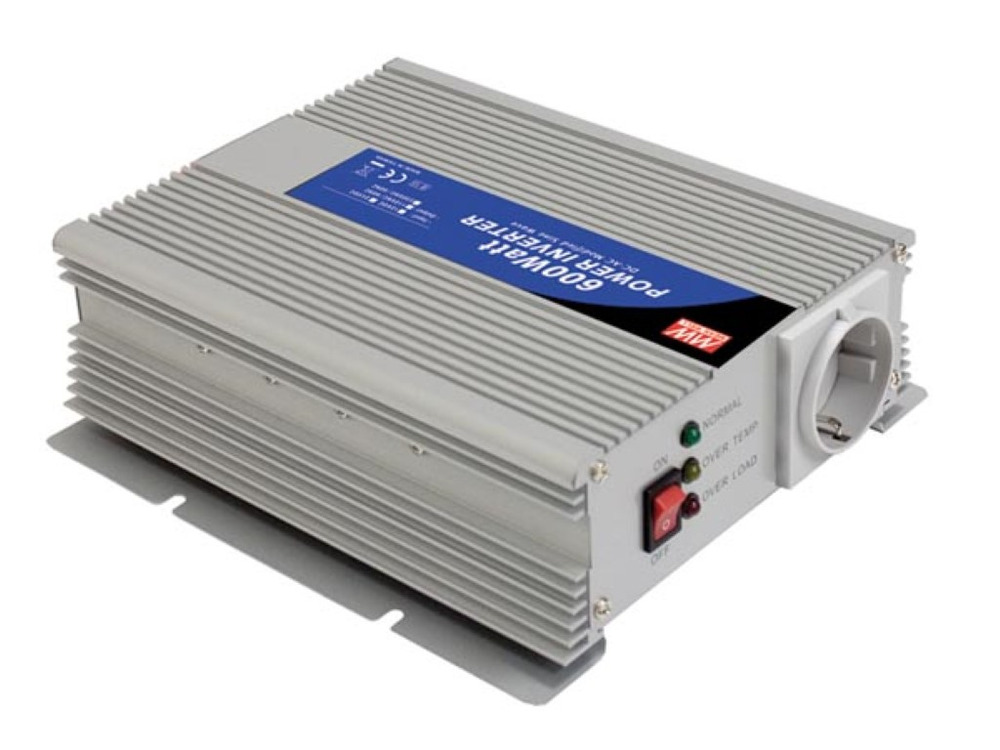

MEAN WELL DC-AC Inverter - 600W Modified Sine Wave Output

Item number A301-600-F3 Brand Mean well Model A301-600-F3 Share Write a review
-30 %
Sale
MEAN WELL DC-AC Inverter - 600W Modified Sine Wave Output



Description

Transform every drive into a seamless power solution with the MEAN WELL DC-AC Inverter. This robust device offers 600 watts of modified sine wave output, delivering reliable energy for all your appliances.

Seamlessly connect to German-standard outlets and power a range of devices, from essential electronics to small kitchen appliances. The compact design ensures easy storage and portability, while advanced safety features prevent overloading and overheating.

Perfect for road trips or as an emergency power source, this inverter provides efficiency and durability for your on-the-go energy needs. Experience consistent and safe power conversion with every use.

Properties

Brand information
Brand Mean well
ModelA301-600-F3
Other
The translation for "AC-spanning" is "AC-spanning" since it is already in English. If you need more context or if this is part of a larger text, please provide additional information! The text "230 V" doesn't need translation as it's already in English, representing "230 Volts." Let me know if you need anything else!
DC power 60 A
DC-spanning It looks like you've entered "12 V," which often refers to 12 volts in the context of electricity or batteries. If there's more context or additional text you'd like translated, please provide that and I'll be happy to help!
LED indicator Green LED for power on; red LED for power failure.
Insulation resistance Input-output: 100 MOhm min. / 500 VDC / 25 °C / 70% RH
Working temperature 0 - +30 °C at 100% load, 40 °C at 50% load
Safety type A-300-600W
"Nom. vermogen" translates to "nominal capacity" in English. 600 W
Wave shape Modified sine wave
AC regulation ± 10%
Standard plug connection Type-3* 1 piece
Unloaded power consumption 0.6 A
The term "Spanningsbereik" can be translated informally to "range of tension" or "voltage range." 10~15 VDC
"Rendement" translates to "performance" or "yield" in English. 82%
DC connector 900 mm battery clip*1ea
"Fuse" It seems like you're asking for a translation, but the text you've provided looks like a code or a shorthand. If you can provide more context or clarify what the text represents, I'll be happy to help!
Low battery alert 10 ± 0.5 V
Automatic shut-off with a low battery 9.5 ± 0.5 V
Overload The output voltage over 750 W is turned off, automatic system recovery.
Overvoltage 15-17 V
Overheating 60 ± 5 °C / 140 ± 9 °F
Short circuit "Elimination"
Company humidity 20 ~ 90% RH (non-condensing)
Storage temperature / humidity level -30 to +70 °C / -22 to +158 °F, 10 - 95% humidity
Temperature coefficient 0.05% per °C (0-50 °C)
EMI shielding and radiation It meets the standards EN55022 class B, 72/245/EEC, 95/54/EC.
EMS immunity The text translates to: "meets the standard EN61000-4-2, 3"
LVD meets the EN60950 standard
MTBF stands for "Mean Time Between Failures." 100,000 units min. MIL-HDBK-217F (25 °C)
Dimensions (L x W x H) 210 x 173 x 65 mm
Cooling Fan, fan turned on at >50% load
Datasheet
Frequency 0 Hz
