XIAMEN OCULAR LCD DEVICES LCD 16 x 2 BOTTOM VIEW REFLECTIEF Display
Description
Enhance your digital projects with the LCD 16 x 2 BOTTOM VIEW REFLECTIEF, boasting superior clarity and sleek design.
This display offers a clear 16-character by 2-line interface, ensuring your text and data are vividly presented. The reflective technology reduces glare and improves visibility, even in challenging lighting conditions.
Ideal for integrating into electronic devices, it effortlessly connects to microcontrollers or processors for simple setup. Use it in everything from kitchen appliances to complex robotics, where detailed display is crucial.
Properties
Brand information
| Brand | XIAMEN OCULAR LCD DEVICES |
| Model | LCD1602LC |
Other
| Backlight | nope |
| LCD type + color | "TN grey" |
| Power supply (Vdd-Vss) | -0.3 to 5.5V |
| Input voltage (Vi) | The text you've provided seems to be more of a technical notation than a sentence. However, I can certainly translate it informally. It looks like you're referring to a voltage value relative to Vdd (which typically stands for the supply voltage in electronics). So, informally, you might say: "The voltage is around -0.3 compared to the Vdd." |
| Supply voltage (Vdd) | 4.7 ~ 5.5V (at +5V) / 2.7 ~ 5.3V (at +3.3V) |
| I think "Voedingsstroom" can be translated informally to "food flow" in English. | 1.5mA typical (at Vdd = 5V) |
| Recommended driving voltage for LCD (Vdd-V0) | 4.3 ~ 4.7V (at 25°) |
| The forward voltage of an LED (Vf) | 4.2V typical (at 25°C) |
| Forward current of LED (If) | 120mA (at 25°C) |

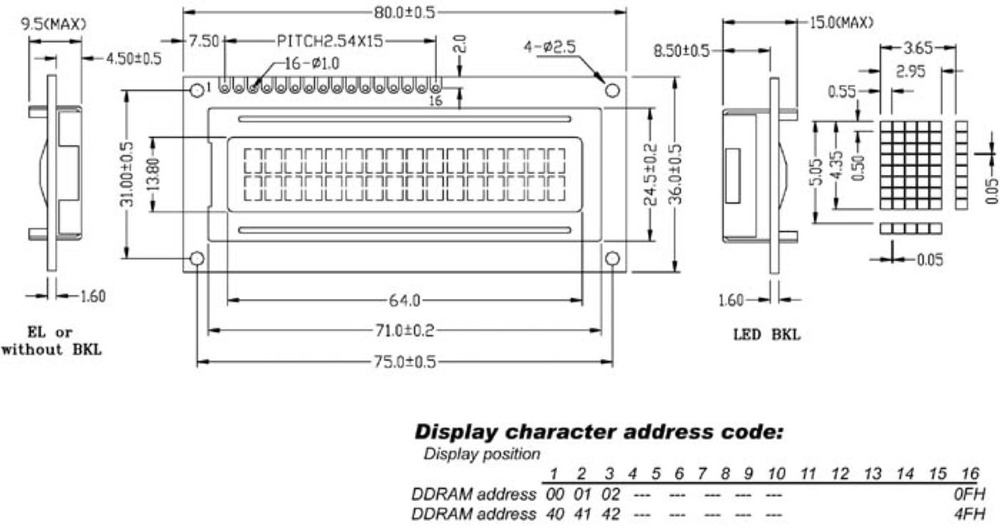

| Dimensions module | 80.0 x 36.0mm |
| Screen size | 64.0 x 13.8mm |
| Size of the dots | 0.55 x 0.50 mm |
| Character size | 2.95 x 4.35mm |
| GND | 1 (Vss) |
| "5 volts" | It looks like you've entered "2 (Vdd)," but there's not much context to translate. Could you please provide more information or clarify what you mean? |
| Contrast adjustment | 3 (V0) |
| Select signal for the H/L register | 4 (RS) |
| H/L read/write signal | 5 (R/W) |
| H/L enable signal | 6 (E) |
| H/L data bus lines | The text "7 ~ 14 (DB0 ~ DB7)" doesn't contain clear context or specific words to translate, but if it's referring to a range or sequence of items, you could casually explain it as "from 7 to 14 (DB0 to DB7)." If there's a specific context or meaning behind these terms, please provide more details so I can assist further! |
| The text "+4.2V for BKL" is already in English; it refers to a voltage level, likely meant for a component labeled BKL. | 15 (A) |
| Power supply for BKL (0V) | 16 (K) |
€ 15,00€ 12,40 Excl. VAT (NL)
