  2. Toshiba High-Voltage Opto-Isolator with Transistor Output

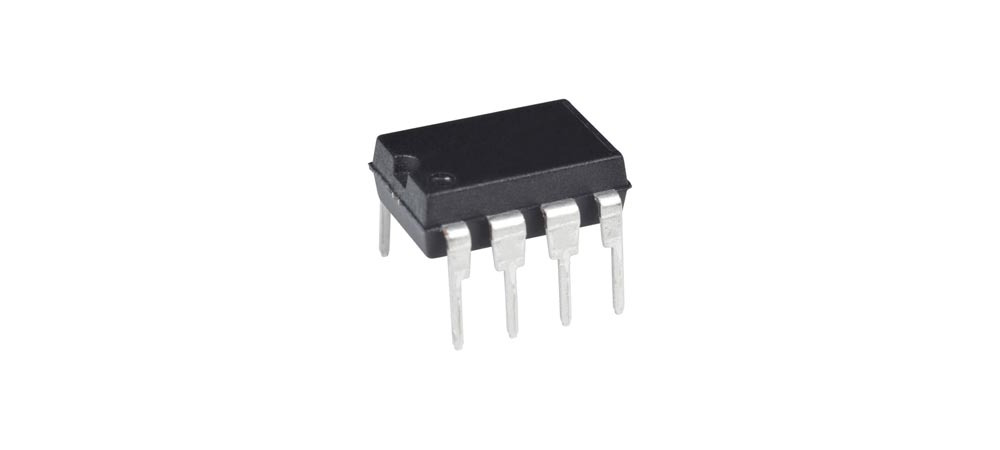

Toshiba High-Voltage Opto-Isolator with Transistor Output

Item number 6N136 Share Write a review
New
Toshiba High-Voltage Opto-Isolator with Transistor Output



Description

The OPTO-ISOLATOR with a transistor output is engineered for high-voltage isolation up to 2500V, ensuring safe electrical separation between differing circuit components. This feature makes it pivotal in applications that demand robust isolation such as in power adaptors and industrial control systems.

Designed for efficiency, its Current Transfer Ratio (CTR) of 19% optimizes performance, providing reliable signal transmission across varying environments. Compact and durable, this opto-isolator simplifies complex electrical setups and safeguards sensitive components against voltage spikes. An indispensable asset for maintaining integrity in sophisticated electronic designs.

Properties

Brand information
Brand Toshiba
Model6N136
Other
Primary colors Black
Extra colors Green
Depth of the product 7.62 mm
Height of the product It seems like you've provided a measurement. If you're looking for a way to say "4.5 mm" informally in English, you can call it "four and a half millimeters" or just "four point five mm." Let me know if you meant something different!
Width of the product 9.76 mm
Weight Product 0.9 grams
Type of case It seems like you've provided "DIP 8" without additional context or language. If you're asking for a translation, could you please provide the full text and the language it's in? Let me know so I can help you better!
Isolation voltage It seems like "2500 V" might refer to a voltage measurement (2500 volts). Could you provide more context or content to translate for you?
"Forward voltage vf" The text you provided, "1.45 V," seems to be a numerical value, possibly referring to voltage. Since it doesn't contain any content that requires translation or contextualization, it remains the same in English. If there's more context or text around this that you'd like help translating, please provide that information.
Minimum current transfer ratio (CTR) 19 %
Forward flow if "25 mA DC" is already in English, as it refers to 25 milliamperes of direct current.
Easily select output type Transistor output
Number of pins 8
Number of channels 1
€ 3,60€ 3,00 Excl. VAT (NL)
Out of stock
Toshiba High-Voltage Opto-Isolator with Transistor Output € 3,60
Show volume discounts Shipped from € 3,50 (NL) 30 days cooling-off Excellent service
